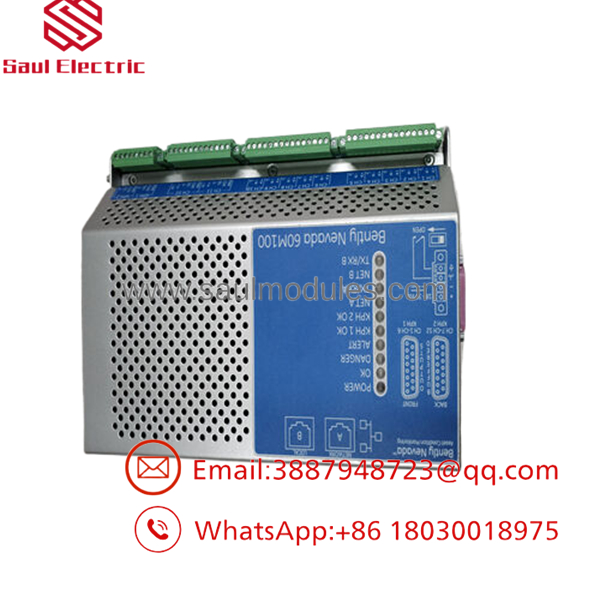

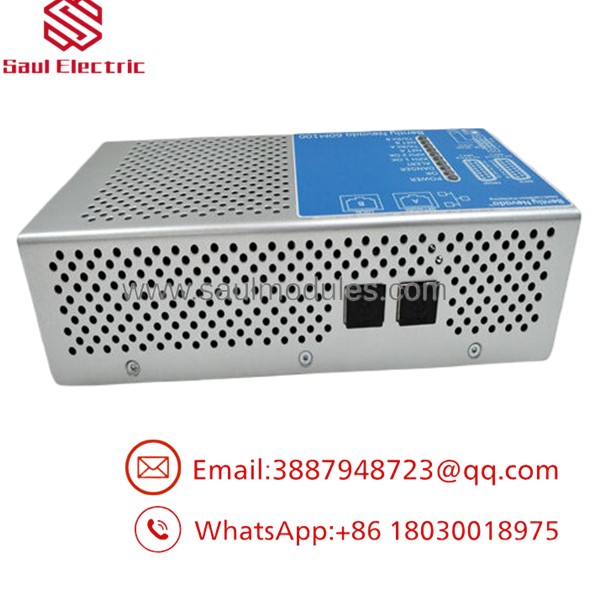

BENTLY 60M100-00 3500 Series Speed Monitoring Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The BENTLY 60M100-00 is a dual-channel speed monitoring module for the Bently Nevada 3500 machinery protection system. It provides independent speed, zero-speed, and acceleration monitoring with microsecond-level relay response for overspeed trips. It is deployed on steam turbines, gas turbines, centrifugal compressors, and generators across power generation, oil & gas, and chemical processing plants. Each channel receives signals from magnetic pickups or active proximity probes, with hardware-driven relay outputs that bypass software scan cycles—critical for emergency overspeed shutdowns.

Procuring this module as New Surplus is a TCO-critical decision. The 60M100-00 functions as an independent protection layer (IPL) in safety instrumented systems, directly tripping the main shutoff solenoid without relying on the DCS or SIS controller. Refurbished modules carry extreme risk: compromised relay contact integrity, degraded signal conditioning, and undocumented repairs that cannot be detected by functional testing. A failure in this module during an overspeed event can cause catastrophic machinery destruction. The cost of a single turbine or compressor failure dwarfs the module’s value. This unit offers OEM-origin traceability, zero operational hours, and a 12-month warranty—eliminating the uncertainty of used or repaired components.

60M100-00

60M100-00

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Lock out and tag out the 3500 rack. De-energize the rack power supply.
• Wear ESD wrist strap. Gather a camera for documentation.
• Critical: Record the existing module’s slot position and configuration parameters from the 3500 Configuration Software. Document sensor type (magnetic pickups vs. active probes), alarm and danger thresholds, hysteresis, and relay voting logic (1oo1, 1oo2, 2oo2).

Stage 2: Removal

• The 60M100-00 supports hot-swap replacement in systems with redundant power supplies and proper system architecture. For non-redundant configurations, full power-down is required.
• Disengage the module retaining screws and gently pull the module straight out from the backplane connector. Do not rock side-to-side.

Stage 3: Installation

• Align the new module with the guide rails and slot connector. Press firmly until fully seated.
• Secure with the retaining screws.
• Critical: The module requires configuration via 3500 Configuration Software. All parameters—alarm/danger thresholds, hysteresis, sensor type, and voting logic—must be downloaded to the 3500/22 or /25 CPU module before the module becomes operational.

Stage 4: Power-On & Testing

• Re-energize the rack power. Observe LED status: OK should illuminate; ALARM and DANGER should remain off.
• Inject simulated speed signals to verify relay actuation at the configured thresholds. Test each channel independently.
• Confirm communication with the 3500 rack and the System 1 or configuration software.

Firmware/Software Versions & Upgrade Notes

The 60M100-00 module works with onboard logic governed by the 3500 rack firmware and the 3500 Configuration Software.

Version compatibility note: The 60M100-00 is a standard 3500/60 speed monitoring module. Verify that your 3500 rack firmware is version 4.0 or later. The module configuration must be downloaded from the configuration software; the module itself has no field-upgradeable firmware.

Critical warning: The 60M100-00 does not store configuration parameters onboard. All configuration resides in the 3500/22 or /25 CPU module. After module replacement, the rack will push the existing configuration to the new module automatically. However, always verify the configuration matches the old module’s settings before returning to service.

Frequently Asked Questions (FAQ)

Q: Why is this New Surplus cheaper than Bently Nevada list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid the OEM’s full retail margin and the hidden failure risk of refurbished stock. The cost of a single turbine overspeed event dwarfs the price difference.

Q: Is this module still active or is it EOL?
A: The 60M100-00 remains in active production as a standard 3500/60 speed monitoring module. Bently Nevada continues to manufacture and support this module. -5 However, securing a spare now protects against future lead time increases.

Q: What is the difference between the 60M100-00 and other speed modules?
A: The 60M100-00 is the standard 3500/60 dual-channel speed monitoring module for the 3500 machinery protection system. It provides relay outputs and optional 4–20 mA analog outputs. It is compatible with magnetic pickups and active proximity probes.

Q: Can I hot-swap this module while the rack is powered?
A: Yes, the 3500 system supports module replacement with rack power applied, provided the rack has redundant power supplies. However, always verify the module is properly seated and the rack recognizes it. For systems without redundant power, power-down is required.

Q: Does replacement require reloading configuration?
A: No. The configuration resides on the 3500/22 or /25 CPU module. The rack pushes the existing configuration to the new module. However, verify the configuration matches the old module’s settings before returning to service.

Q: What is the warranty period and coverage?
A: The module carries a standard 12-month warranty against manufacturing defects. Coverage applies to the module hardware—not field wiring, sensor faults, or installation damage. All units are QC-tested before shipment to verify speed simulation, relay response timing, and communication handshake.
