Product Introduction & Engineering Value
Keyphasor signals are the heartbeat for speed and phase analysis in any serious vibration monitoring setup. Lose a clean reference and your orbit plots and order tracking fall apart. The Bently Nevada 135473-01 provides the isolated I/O needed for reliable Keyphasor inputs while protecting the rack from field wiring faults.
This module handles the tricky job of conditioning signals from proximity probes or magnetic pickups, delivering clean once-per-turn pulses even in electrically noisy plants. Internal barriers and terminations cut down on external components and simplify installation.
Technical Specifications
Input Support
- Two independent Keyphasor channels
- Accepts proximity probes and magnetic pickups
- Isolated design for parallel connection to other systems
Performance
- Phase Accuracy: Minimal shift across speed range
- Supports multi-event per revolution processing
- Internal barriers for hazardous area applications
Physical & Environmental
- Dimensions: 241.3 mm x 24.4 mm x 163.1 mm
- Weight: 0.46 kg (1.01 lb)
- Operating Temperature: -30°C to +65°C
Field Application & The “Trench” Experience
During a gas turbine overhaul in Texas, the Keyphasor signal kept dropping out after rain infiltrated the junction box. The old non-isolated I/O couldn’t reject the noise. Installing the 135473-01 with its internal barriers restored solid phase reference immediately. The balancing crew finished their job on schedule with clean data for the bump test and runout compensation.
Niche Applications
- Phase-referenced vibration analysis on combustion gas turbines
- Order tracking on variable speed centrifugal compressors
- Synchronous averaging for gearbox fault detection in marine propulsion

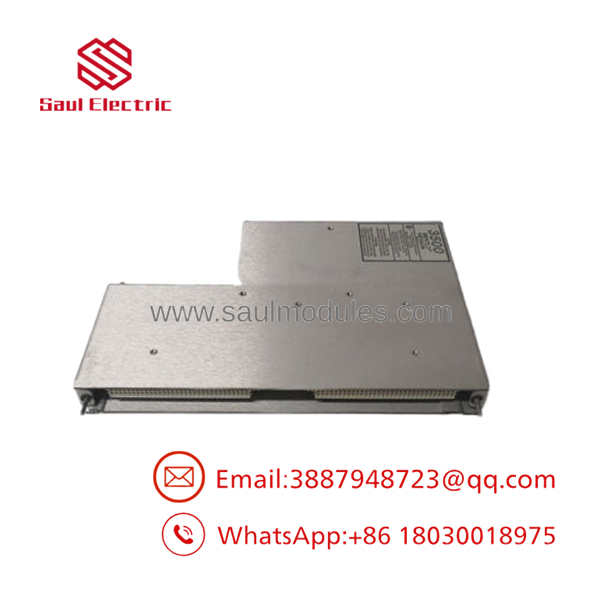

- 135473-01

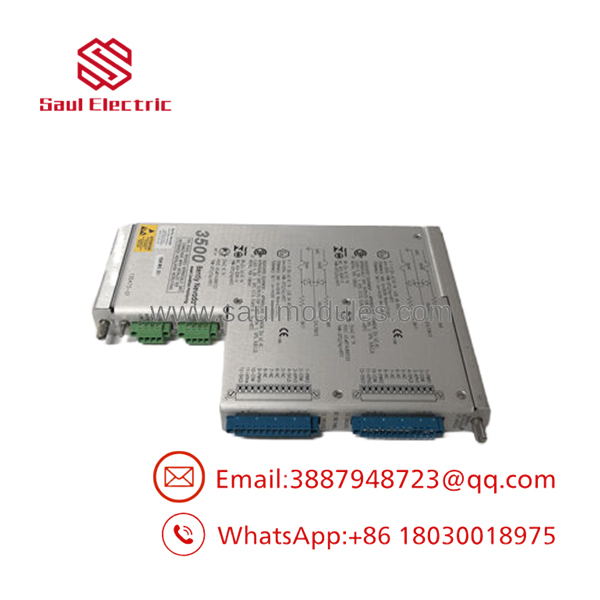

- 135473-01
Transparency SOP: QA & Testing
We pair each 135473-01 with a 3500/25 Enhanced Keyphasor module in our test rack. Using calibrated signal generators, we verify signal isolation, accurate pulse generation across a wide speed range, and proper barrier function. Phase shift measurements and noise rejection tests confirm performance before the unit ships with its detailed report.
The Veteran’s Tech Trap Guide
⚠️ Pickup Type Selection — Magnetic pickups need sufficient shaft speed to generate clean signals. Proximity probes work better at low RPM. Choose wrong and you get noisy or missing Keyphasor events.
PRO TIP: Document your Keyphasor transducer orientation during initial setup — it saves hours when replacing modules later.
⚠️ Barrier Version Confirmation — Using the isolated version where non-isolated is needed (or vice versa) can introduce unexpected phase shifts that affect diagnostic accuracy.
Dynamic FAQ
Q: What makes the 135473-01 different from standard Keyphasor I/O? A: It includes internal barriers and terminations for easier wiring and hazardous area use.
Q: How many Keyphasor channels does this I/O support? A: Two independent channels per module.
Q: Is this module compatible with older 3500/25 setups? A: Yes, but best performance comes when paired with the Enhanced Keyphasor main module.
Q: What warranty applies to New Surplus stock? A: One full year on all 135473-01 New Surplus units.
Q: Can this I/O connect to multiple devices simultaneously? A: Yes. The isolated design allows Keyphasor signals to feed both the 3500 rack and external control systems.
Q: Do I need special tools to install the 135473-01? A: Standard screwdriver for rear rack mounting. No special configuration beyond matching the monitor settings.
