Product Introduction & Engineering Value
Standard speed-tracking devices often fall short when tasked with simultaneous acceleration tracking, reverse-rotation prevention, and zero-speed validation on a single, high-stakes rotor. These multi-variable speed scenarios require more than basic pulse counting; they demand high-density, real-time signal analysis. The Bently Nevada 3500/54 286566-01 addresses these demands by combining four independent channels of precision speed and acceleration processing on a single backplane module.
By packing four channels into one slot, the 286566-01 minimizes physical space while significantly expanding monitoring versatility. This card does not just measure RPM; it continuously analyzes phase relationships to detect reverse-rotation onset within fractions of a turn. It delivers reliable machine diagnostics directly to your 3500 system without lagging or dropping critical transient events.
Technical Specifications
- Input Channels: 4 independent speed/frequency channels.
- Transducer Options: 3-wire Proximitor sensors, passive magnetic pickups, or active shaft encoders.
- Signal Resolution: Configurable up to 0.001 RPM for high-resolution low-speed loops.
- Frequency Range: 0.006 Hz to 20 kHz (equivalent to 1 RPM to 99,999 RPM).
- Isolation Protection: 500 Vrms galvanic isolation between field wiring and system backplane.
- Keyphasor Outputs: Module acts as a multi-channel driver, routing up to 4 distinct Keyphasor signals to the backplane.
- Power Draw: 6.2 Watts typical power consumption.
- Operating Limits: -30°C to +65°C (-22°F to +150°F) operating temperature.
- Alarms: Configurable Under-Speed, Over-Speed, Acceleration, and Zero-Speed setpoints.

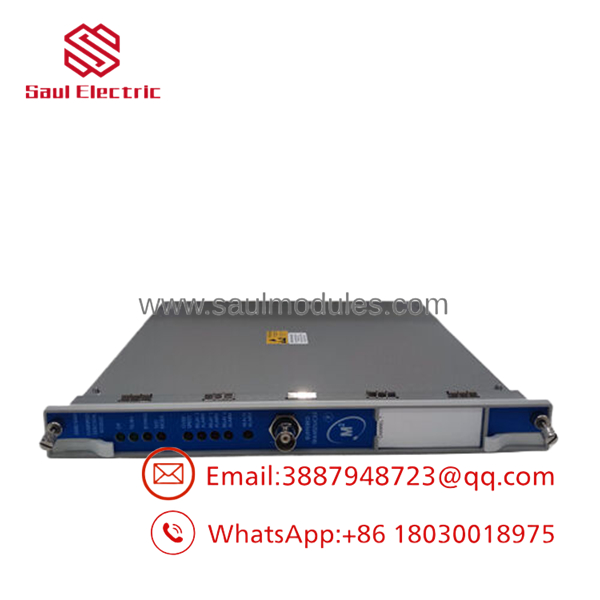

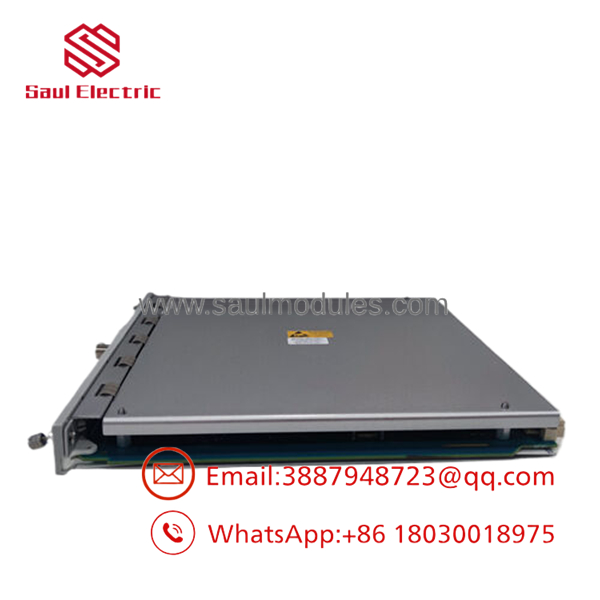

- 3500/54 286566-01
Field Application & The “Trench” Experience
During a commissioning sequence for a large vertical cooling water pump at a nuclear facility, engineers ran into immediate trouble with starting interlocks. The pump had a tendency to spin backward due to backflow when shut down, and starting the motor during reverse rotation risked breaking the pump shaft. The existing legacy instrumentation could not determine spin direction fast enough to prevent a startup attempt.
We installed the 3500/54 286566-01 and wired a pair of eddy-current proximity probes spaced at a specific angular offset. By configuring the 286566-01’s internal phase-angle logic, the module identified reverse rotation within the first 15 degrees of movement. This signal was immediately interlocked to the motor starter circuit, completely protecting the pump shaft from catastrophic shear stress during subsequent plant trips.
Specific Niche Applications:
- Turbine Shaft Zero-Speed Lockout: Monitoring slow-roll cooling rotation (~1 to 10 RPM) to ensure the turning gear is engaged and working properly before steam admission.
- Gearbox Ratio Slip Detection: Utilizing two channels on the input shaft and two on the output shaft to continuously calculate and alarm on transmission slip.
- Gas Turbine Multi-Spool Acceleration Profiling: Tracking both the High-Pressure (HP) and Low-Pressure (LP) compressor shaft speeds simultaneously to monitor thermal expansion limits.
Transparency SOP: QA & Testing
Every 286566-01 card we supply undergoes rigorous functional validation inside our specialized testing lab. We insert the card into an active Bently Nevada 3500 test rack and hook it up to a 4-channel arbitrary function generator. We simulate phase-shifted inputs to test reverse-rotation detection limits, sweep frequencies from sub-1 Hz up to 20 kHz to check low-speed and high-speed accuracy, and monitor the module’s diagnostic LEDs. No card leaves our facility unless it maintains a clean “OK” status under thermal load and logs flawless telemetry inside the 3500 System Configuration utility.
The Veteran’s Tech Trap Guide
⚠️ THE INTERNAL VS. EXTERNAL BARRIER CONFUSION: The 286566-01 is a standard, non-barrier tachometer module. If your speed sensors are installed in a classified hazardous area requiring intrinsic safety barriers, do not connect them directly to this card. You must use an external barrier or purchase the specific internal-barrier version of this module to prevent creating an ignition hazard.
PRO TIP: When setting up multi-channel speed monitoring, ensure you configure the “Sensor Supply Voltage” jumpers on the side of the 286566-01 board correctly before slotting it into the rack. Mixing up a -24 Vdc supply setting meant for a Proximitor sensor with a passive magnetic pickup input will trigger a permanent “Transducer Fault” error and could damage the input circuitry.
Dynamic FAQ
- Q: Can the 3500/54 286566-01 be used as a primary overspeed protection device?
- A: No. The 3500/54 is a tachometer protection and diagnostic module. While it has alarm relays, it is not designed to meet the strict response times required for dedicated emergency overspeed trip systems. For emergency overspeed protection (API 670/612), you should use the 3500/53 module.
- Q: Does this card support “Gap” measurement diagnostics for speed sensors?
- A: Yes. When paired with standard 3-wire proximity probes, the 286566-01 continuously measures and displays the DC bias voltage (Gap), allowing you to detect if a sensor has drifted too close or too far from the target wheel.
- Q: What is the differences between the older 3500/54 cards and this 286566-01 assembly?
- A: The 286566-01 represents the modernized “M” version of the 3500/54 assembly. It features updated, more robust component layouts that improve signal processing efficiency and run cooler than the older obsolete hardware runs.
- Q: How does your warranty handle cards that fail during commissioning?
- A: We provide a full 12-month warranty from the date of delivery. If a card experiences component failures, channel dropouts, or configuration communication errors during installation or operation, we will replace the unit or issue a full refund.
