Bently Nevada 135489-01 Proximitor/Seismic I/O Module

Description

Product Introduction

The Bently Nevada 135489-01 is a four-channel rear Input/Output (I/O) interface module engineered specifically to partner with the 3500/42M Proximitor/Seismic Monitor inside the 3500 Machinery Protection System. Installed in the full-height rear slot directly behind the main 3500/42M card, the 135489-01 serves as the primary field wiring connection point for critical machinery monitoring.

Designed for Internal Termination configurations, the 135489-01 features integrated Euro-style screw terminals mounted directly on the circuit board. It distributes regulated -24V DC transducer power to field sensors while routing dynamic proximity, acceleration, or velocity signals into the 3500/42M monitor for real-time vibration processing, overall amplitude calculation, and trip relay logic.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a routine turnaround at a petrochemical processing plant, technicians discover a cracked terminal block header on an aging rear card behind a 3500/42M monitor protecting a primary gas export compressor. The damaged terminal caused intermittent high-vibration spikes on Channel 3 due to wire strain. Replacing the damaged module with a fresh 135489-01 internal termination card allows engineers to land the field sensor leads and shield drain wires directly onto new, secure Euro-style screw terminals. Once re-terminated, clean AC/DC dynamic signal continuity is restored across all four channels without disturbing adjacent monitor slots.

• Refinery Centrifugal & Axial Compressors: Directly terminates field cabling for multi-bearing radial vibration and axial thrust probes.
• Power Generation Steam & Gas Turbines: Routes dynamic vibration signals from accelerometers and proximity transducers directly inside control cabinets.
• High-Pressure Boiler Feed Pumps: Provides reliable internal terminal connections for continuous casing and shaft vibration tracking.
• 3500 Rack Maintenance & Upgrades: Essential spare part for cabinets using direct internal wiring rather than external remote terminal panels.

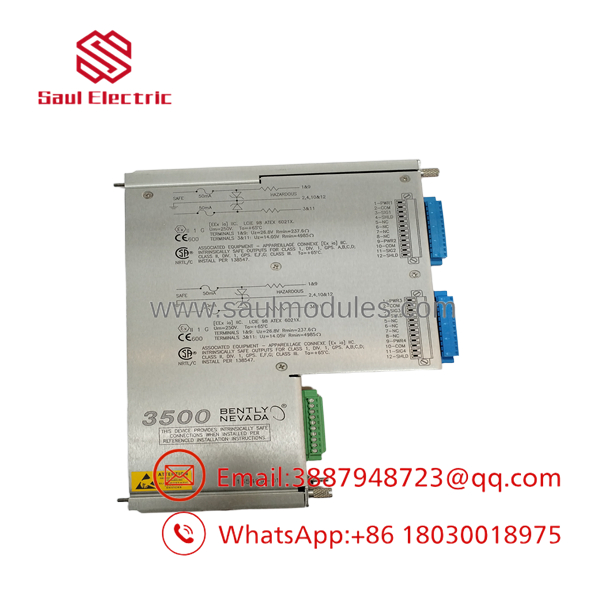

135489-01

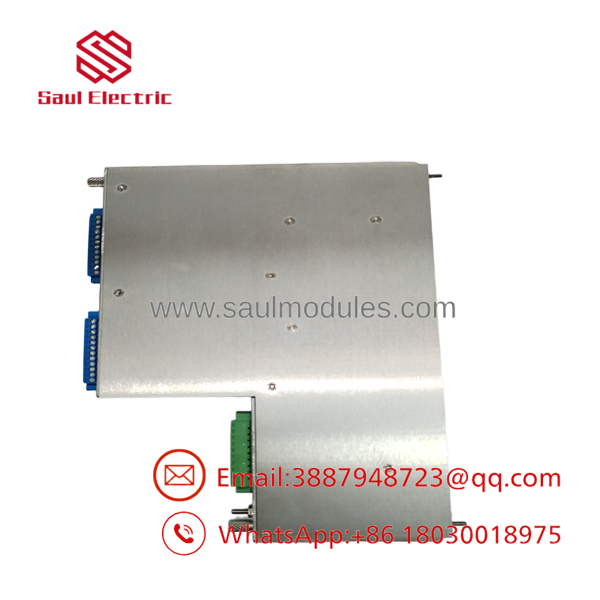

135489-01

Transparency SOP: Quality Assurance & Testing

1. Visual & Mechanical Inspection: Terminal block screws, internal PCB traces, solder connections, and edge connectors are rigorously checked for stripped threads, corrosion, or thermal stress.
2. Backplane Alignment & Compatibility Test: Installed into a live Bently Nevada 3500 test rack behind a functional 3500/42M main card to confirm backplane slot recognition and mechanical alignment.
3. Signal Pass-Through & Load Audit:
   • Power Pass-Through Verification: Confirmed stable -24V DC field transducer power delivery across all 4 terminal groups.
   • Signal Continuity Test: Precision dynamic signals from a calibrator are passed through all 4 channels to verify linear voltage transmission to the front processing card.
4. Final ESD Packaging: Cleaned, fitted with edge connector protective covers, sealed in anti-static shielding bags, and packed in heavy-duty foam casing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Internal vs. External Termination Choice: The 135489-01 is an Internal Termination card (field wires screw directly onto the board). If your installation utilizes multi-pin cable harnesses connecting to DIN-rail mounted terminal blocks outside the rack, you require an External Termination module (such as the 128240-01) instead.
• ❗ Front Monitor Card Pairing: Ensure this module is paired strictly with a 3500/42M Proximitor/Seismic Monitor. Mismatched pairings (such as plugging a 3500/25 Keyphasor or 3500/40M monitor into this slot) will cause a card-mismatch fault on the 3500/22M Rack Interface Module (RIM).
• ⚠️ Terminal Torque & Wire Dress: Avoid over-torquing the Euro-style screw terminals. Use a precision flathead screwdriver and tighten to a maximum of 0.5 Nm (4.4 in-lbs) to prevent tearing the PCB solder pads or stripping the terminal housing.
• ❗ Single-Point Shield Grounding: Always land sensor cable shields strictly at the designated SHIELD terminals on the 135489-01 card. Ensure the shield is isolated/floating at the field sensor junction box to avoid ground loops that introduce 50/60 Hz noise into low-level vibration signals.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the Bently Nevada 135489-01?

A: It is the internal termination rear I/O card for the 3500/42M Proximitor/Seismic Monitor, providing direct screw terminal connections for 4 field transducer channels and -24V DC sensor power.

Q: Can I use the 135489-01 to replace a 128240-01 rear module?

A: Functionally, both modules interface field sensors with the 3500/42M monitor. However, the 135489-01 uses internal screw terminals on the card itself, whereas the 128240-01 uses multi-pin cable connectors for external DIN-rail terminal blocks. You can only swap them if you re-route field wiring directly to the rack.

Q: What sensor types can be wired to the 135489-01 module?

A: It accepts inputs from 3300 XL proximity probes, accelerometers, Velomitors, and electrodynamic Seismoprobes as configured on the front 3500/42M card.

Q: Is it necessary to power down the 3500 rack before replacing this rear card?

A: Yes. Powering down the rack slot or disconnecting transducer power before servicing rear I/O cards prevents accidental short circuits across backplane terminal pins.

Q: What warranty is provided on surplus or reconditioned 135489-01 modules?

A: All New Surplus and fully reconditioned Bently Nevada 135489-01 modules include a full 12-month replacement warranty from the invoice date.
