Bently Nevada 143729-01 Internal Termination I/O Module

Description

Product Introduction & Engineering Value

Reciprocating compressors rarely fail without warning. Changes in cylinder pressure patterns often reveal valve leakage, worn piston rings, or rod loading issues long before vibration levels become abnormal. The Bently Nevada 143729-01 provides the I/O interface that delivers cylinder pressure signals to the 3500/77M Recip Cylinder Pressure Monitor for continuous performance analysis.

Rather than serving as a general-purpose analog input module, the 143729-01 is engineered specifically for reciprocating compressor diagnostics. It supports approved third-party cylinder pressure transducers and integrates directly into the 3500 machinery protection architecture used in critical compression applications.

Technical Specifications

Field Application & The “Trench” Experience

A gas transmission station began reporting inconsistent compressor efficiency despite normal vibration readings. Performance engineers suspected leaking discharge valves, but vibration analysis alone could not confirm the diagnosis.

During a scheduled outage, technicians traced intermittent cylinder pressure signal loss to the existing 143729-01 I/O module. After installing a replacement module and verifying each pressure transducer channel, the 3500/77M system once again produced stable pressure waveforms. Engineers identified a deteriorating discharge valve within hours, preventing an unplanned compressor shutdown.

Typical applications include:

• Reciprocating natural gas compressor valve performance monitoring
• Hydrogen compressor cylinder pressure analysis
• Process gas compressor rod load and compression efficiency evaluation

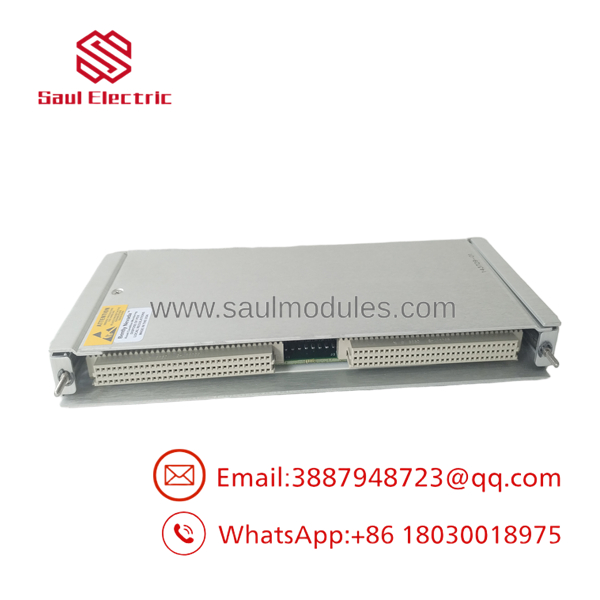

143729-01

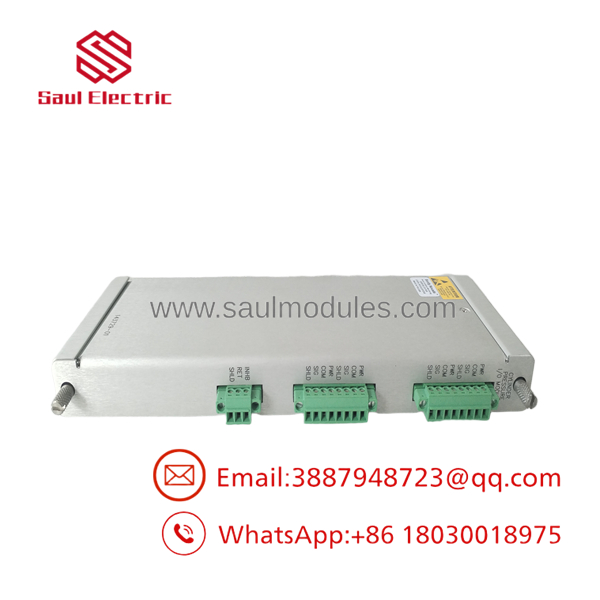

143729-01

Transparency SOP: QA & Testing

Every New Surplus or professionally refurbished 143729-01 undergoes documented inspection before shipment.

1. Verify manufacturer markings, hardware revision, and serial identification.
2. Inspect PCB assemblies, connector headers, and internal termination blocks.
3. Examine solder joints and connector pins for mechanical damage.
4. Verify electrical continuity and insulation integrity.
5. Perform functional communication checks using a compatible 3500/77M test platform when available.
6. Package the module in anti-static protection with industrial-grade shock-resistant materials.

The Veteran’s Tech Trap Guide

⚠️ Don’t confuse internal and external termination versions.

The 143729-01 uses internal terminations. If your rack is wired for external termination blocks, you need 143737-01 instead. The two modules are not interchangeable.

⚠️ Only approved pressure transducers should be connected.

The 3500/77M system is designed to work with approved cylinder pressure transducers. Installing unsupported sensors can result in inaccurate pressure traces and unreliable compressor diagnostics.

PRO TIP:

Always label each cylinder channel before removing the existing module. Accidentally swapping head-end and crank-end pressure inputs can produce compression diagrams that appear valid but lead to incorrect maintenance decisions.

Dynamic FAQ

Q1. What is the primary purpose of the 143729-01?

The module interfaces approved cylinder pressure transducers with the 3500/77M Cylinder Pressure Monitor, enabling continuous cylinder pressure measurement and reciprocating compressor diagnostics.

Q2. Can this module be used with any 3500 monitor?

No. The 143729-01 is specifically designed for the 3500/77M Cylinder Pressure Monitor and is not intended for vibration, temperature, or process variable monitoring modules.

Q3. What is the difference between 143729-01 and 143737-01?

The 143729-01 provides internal terminations, while the 143737-01 is the version with external terminations. Your rack wiring configuration determines which model is required.

Q4. What machinery typically uses this module?

It is commonly installed on reciprocating compressors used in natural gas transmission, petrochemical processing, refinery services, and industrial gas compression where cylinder pressure analysis is essential for machine health assessment.

Q5. What does “New Surplus” mean?

A New Surplus module is an unused OEM component sourced from excess inventory or canceled projects. Although it has not been placed into industrial service, it is inspected to verify part identification and physical condition before shipment.

Q6. Is warranty coverage available?

Yes. Warranty terms depend on the inventory condition and supplier policy. Both New Surplus and professionally refurbished modules are typically supplied with documented inspection records and functional verification before shipment.
