Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 3500/45 |
| Part Number | 176449-04 |
| Product Type | Position Monitor |
| Number of Channels | 4 |
| Supported Sensors | Proximity Probes, Rotary Position Transducers (RPT), AC LVDTs, DC LVDTs, Rotary Potentiometers |
| Measurement Functions | Axial Position, Differential Expansion, Case Expansion, Valve Position |
| Configuration | 3500 Rack Configuration Software |
| Rack Compatibility | 3500 Series Rack |
| Alarm Processing | User-programmable Alert and Danger Setpoints |
| Communication | Via 3500 Rack Backplane and 3500/22M TDI |
| Compliance | API 670 Machinery Protection |
The monitor channels are configured in pairs, allowing different position-monitoring functions to be assigned depending on the application and installed I/O module.
Product Introduction
The Bently Nevada 3500/45 (176449-04) is designed for continuous online monitoring of machine position-related parameters in turbines, compressors, generators, and other critical rotating assets.
Unlike vibration monitors such as the 3500/40M or 3500/42M, the 3500/45 specializes in displacement and expansion measurements that are essential for turbine supervisory instrumentation (TSI), including:
- Axial (thrust) position
- Differential expansion
- Single-ramp and dual-ramp differential expansion
- Complementary differential expansion
- Case expansion
- Valve position
The module conditions sensor inputs, compares measurements against configurable alarm thresholds, and communicates data through the 3500/22M Transient Data Interface (TDI) for integration with System 1 condition monitoring software.
Typical Applications
The 3500/45 Position Monitor is widely used in:
- Steam turbines
- Gas turbines
- Hydro turbines
- Centrifugal compressors
- Turboexpanders
- Large generators
- Industrial pumps
- Petrochemical plants
- LNG facilities
- Power generation stations
- Refineries

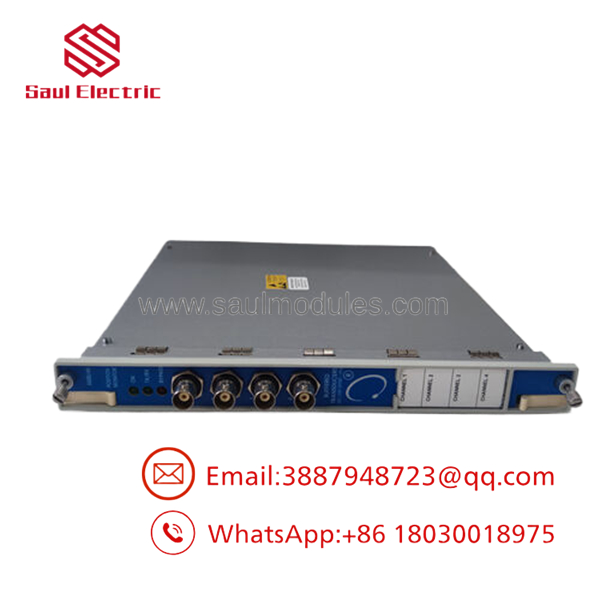

- 3500/45 176449-04

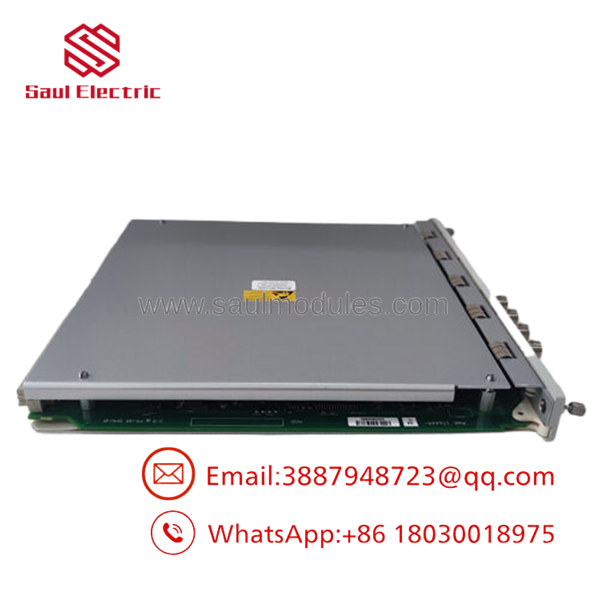

- 3500/45 176449-04
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Recommended Action |
|---|---|---|---|
| Axial position alarm | Actual thrust movement or probe issue | ✅ High | Verify thrust bearing condition and probe gap |
| Differential expansion alarm | Rotor or casing thermal expansion | ✅ High | Compare readings with machine operating conditions |
| No position signal | Sensor wiring or transducer failure | ✅ High | Check continuity and sensor power |
| Incorrect valve position | LVDT or potentiometer calibration error | ✅ High | Recalibrate or verify sensor installation |
| Channel Not OK | Transducer fault or configuration mismatch | ⚠️ Medium | Confirm sensor type matches configured channel |
| Module OK LED off | Rack power or module fault | ⚠️ Medium | Verify 3500 power supply and module seating |
| Communication unavailable | TDI or backplane issue | ⚠️ Medium | Inspect the 3500/22M TDI and rack communication |
Technical Note:
In field service, most 3500/45 alarms are caused by improperly adjusted probes, LVDT calibration drift, damaged field wiring, or mechanical movement of the monitored equipment. The monitor module itself is generally highly reliable, so transducers and installation should be verified before replacing the module.
Frequently Asked Questions (FAQ)
Q1. What is the Bently Nevada 3500/45 (176449-04)?
The 3500/45 Position Monitor is a 4-channel monitoring module that measures machine position-related parameters such as thrust position, differential expansion, case expansion, and valve position within the 3500 Machinery Protection System.
Q2. Which transducers are supported?
The module supports:
- Bently Nevada 3300 XL® Proximitor® Systems
- Rotary Position Transducers (RPTs)
- AC Linear Variable Differential Transformers (AC LVDTs)
- DC Linear Variable Differential Transformers (DC LVDTs)
- Rotary potentiometers
The required rear I/O module depends on the selected transducer type.
Q3. Does it operate as a standalone device?
No. The 3500/45 must be installed in a 3500 Series rack with compatible power supplies, a 3500/22M Transient Data Interface (TDI) or legacy Rack Interface Module (RIM), and the appropriate I/O modules.
Q4. What measurements can it perform?
Depending on configuration, the monitor supports:
- Axial (thrust) position
- Standard single-ramp differential expansion
- Non-standard single-ramp differential expansion
- Dual-ramp differential expansion
- Complementary differential expansion
- Case expansion
- Valve position
Each channel pair can be configured independently for different measurement functions.
Q5. What does Part Number 176449-04 represent?
176449-04 identifies a specific catalog/configuration variant of the 3500/45 Position Monitor. Before ordering, verify that the part number, front module, and rear I/O module match the installed system configuration.
Q6. What should be verified before replacement?
Before replacing a 3500/45 176449-04, verify:
- Complete model and part number
- Rear I/O module type
- Sensor type (Proximitor®, RPT, AC/DC LVDT, or potentiometer)
- Rack slot assignment
- Channel configuration
- Firmware compatibility
- Alarm and danger setpoints
- Rack configuration backup
- Probe gap or LVDT calibration
Backing up the rack configuration and documenting the existing channel settings before replacement helps minimize commissioning time and ensures accurate restoration of machinery protection functions.
