Bently Nevada 3500/33-01-02 149986-01 16-Channel Relay Module

Description

Product Introduction

The Bently Nevada 3500/33-01-02 (ordering part 149986-01) is a 16-channel relay module designed for the 3500 Series Machinery Protection System. It mounts directly into any available slot in a 3500 rack, interfacing with main monitor modules via the backplane to drive field annunciators, trip circuits, and plant emergency shutdown systems.

Unlike basic 4-channel relay cards (3500/32), the 3500/33 packs 16 independent relays into a single slot footprint paired with its corresponding Rear I/O module (149986-01). This density saves rack space when you need extensive logical OR/AND tripping schemes across large turbomachinery trains.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2 AM on a rainy Tuesday. A vibration spike hits the drive-end bearing on a primary boiler feed pump. The monitor card flags a Danger alarm, but the trip signal never energizes the steam turbine trip solenoid because a mechanical relay contact on an aging output card welded shut. That failure turns a routine automatic shutdown into a $400,000 rotor rebuild.

That is why critical plant assets rely on hardware-level trip logic through dedicated relay cards.

• Oil & Gas Refineries – Compressor Train Emergency Shutdown: Interfacing 3500 vibration monitors directly to trip solenoids and DCS alarms using Voting (2-out-of-3) logic.
• Power Generation – Gas & Steam Turbine Protection: Driving high-speed alarm lockout relays when shaft displacement or overspeed thresholds breach limits.
• Chemical Processing – Extruder & Mixer Gearbox Trip Lines: Providing hardware dry-contact outputs to local breaker trip coils without reliance on network PLC bus latency.

Field Case Scenario: During a turn-around at a Gulf Coast ethylene plant, a maintenance team accidentally shorted the 125VDC trip loop across an older 3500/33 output terminal block, frying three onboard relays on the legacy card. The plant couldn’t restart without valid machinery trip coverage on the main charge gas compressor. We pulled a pre-tested 3500/33-01-02 149986-01 module from surplus stock, cleared the software fault log, verified relay coil actuation, and had the compressor package online before sunrise—saving an estimated $80,000 per hour in extended outage costs.

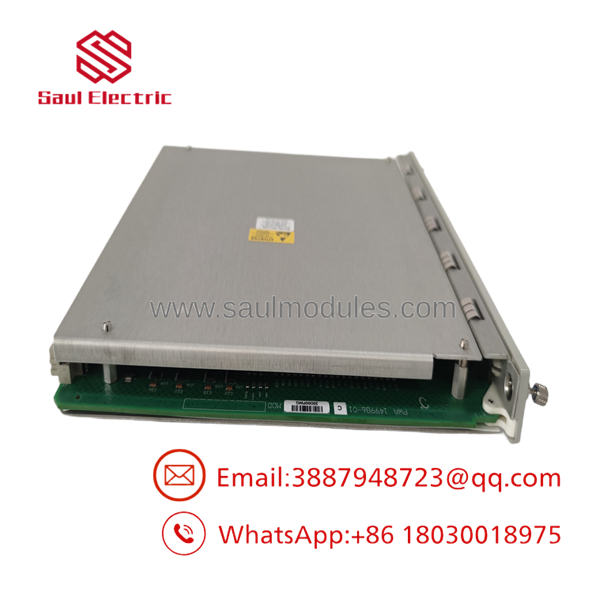

3500/33-01-02 149986-01

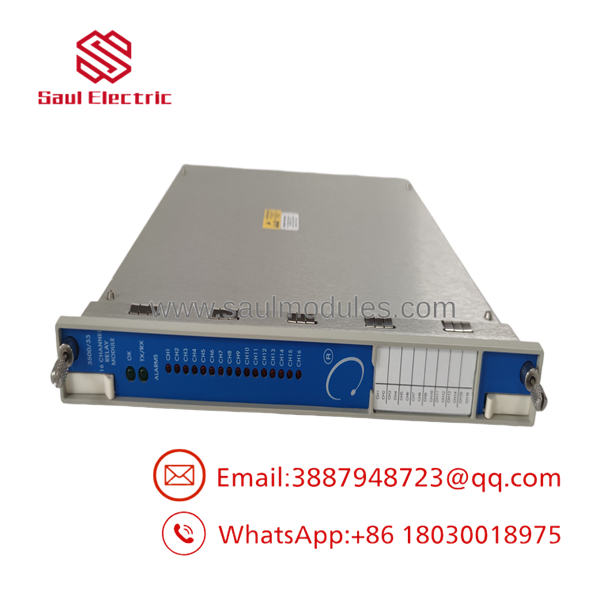

3500/33-01-02 149986-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Visual Inspection: We inspect board traces, check for thermal stress marks on relay housings, and verify the OEM anti-counterfeit serial numbers.
2. Backplane Handshake Test: The module goes into a live 3500 rack. We verify power-on self-tests (POST) and check that the System Rack Interface Module (3500/22M) recognizes card ID and firmware without rack errors.
3. Software Drive Verification: Using Bently Nevada 3500 Rack Configuration Software, we cycle all 16 relays individually through forced logic commands to hear contact closure and verify low contact resistance (<0.1 Ohm).
4. Dielectric Isolation & Parameter Checks: Contact circuits undergo insulation resistance testing to ensure no short circuits exist between adjacent channel contacts or backplane power rails.
5. Anti-Static Packaging: Once verified, the board goes directly into conductive ESD shielding bags with custom foam packing blocks.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Check Normally Open vs. Normally Closed Jumper Pinouts: Don’t assume default factory jumper positions match your plant’s trip logic. The physical jumper blocks on the 149986-01 Rear I/O board determine default contact states on power loss. If you get this wrong, your turbine trips the second you turn on power. Take a photo of the jumpers on the old card before you swap it out.
• ❗ Epoxy-Sealed Relays vs. Inductive Loads: If you drive inductive loads like large solenoid valves or heavy contactor coils directly from these relay contacts without external flyback diodes or RC snubbers, arcing will weld the contact points over time. Always wire suppression across inductive DC loads at the field device.
• ⚠️ Software Configuration Mismatches: Replacing a 3500/33 card requires uploading or matching the rack configuration file. If the slot assignment or voting logic defined in the 3500 Rack Configurator doesn’t match the card’s firmware rev, the rack OK LED will go amber and disable the entire card.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Bently Nevada 3500/33-01-02 hot-swappable?

A: Yes, the front main module can be hot-swapped while the rack is powered. However, to be honest, doing a live swap on a module wired to active plant trip circuits is risky business. Always bypass or disable external trip loops before pulling any relay module out of the rack.

Q: What is the difference between 3500/32 and 3500/33 modules?

A: The 3500/32 is a 4-channel relay module featuring full DPDT relay contacts for high-power switching. The 3500/33-01-02 is a high-density 16-channel card designed for applications needing many discrete outputs in fewer rack slots.

Q: Can I replace a 149986-01 terminal module without reconfiguring the software?

A: Yes. The rear terminal block (149986-01) is passive hardware containing relay components and wiring interfaces. As long as you match the jumper settings on the new board, no software changes are needed.

Q: Does this unit come with a warranty?

A: Yes. Every module—whether new surplus or fully tested refurbished—comes backed by our full 12-month replacement warranty.

Q: Why buy new surplus or refurbished over ordering direct from the OEM?

A: Lead times from the factory can stretch 16 to 26 weeks for legacy 3500 parts. We source original OEM inventory globally from plant spares and cancelled capital projects, giving you verified hardware on your desk in 24 to 48 hours at a fraction of the cost.
