Product Introduction & Engineering Value
When a machinery protection rack is collecting valuable vibration data but cannot communicate upstream, the problem often sits at the interface layer. The Bently Nevada 146031-01 provides the Ethernet communication path that allows transient and steady-state machinery data to move from the 3500 rack to plant diagnostic systems.
Designed for the 3500/22M TDI architecture, this module supports maintenance teams managing critical rotating equipment where historical trends, waveform capture, and remote diagnostics are essential for condition-based maintenance decisions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 146031-01 |
| Series | 3500 Machinery Protection System |
| Module Type | 3500/22M Transient Data Interface I/O Module |
| Network Interface | 10Base-T / 100Base-TX Ethernet |
| Communication Protocol | Bently Nevada Host Protocol |
| Power Supply | 24 VDC |
| Power Consumption | Approximately 10.5 W |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Rating | Up to 95% non-condensing |
| Rack Compatibility | 3500/22M Transient Data Interface system |
| Data Function | Static and transient machinery monitoring data transfer |
Field Application & The “Trench” Experience
A petrochemical plant operating large compressor trains noticed that local vibration alarms from the Bently Nevada 3500 rack were functioning, but engineers could no longer retrieve waveform data through the plant monitoring workstation.
The instrumentation team first checked Ethernet switches, communication cables, and software settings. The network infrastructure was healthy. The failure was eventually traced to the 3500/22M communication path, where the 146031-01 Ethernet I/O module had stopped maintaining reliable communication.
After replacing the module and restoring the network configuration, the maintenance team regained access to vibration trends and transient data without replacing the complete protection rack.
Typical application scenarios include:
- Centrifugal compressor vibration monitoring systems
- Steam turbine condition monitoring networks
- Gas turbine machinery diagnostic cabinets
- Bently Nevada System 1 data acquisition installations

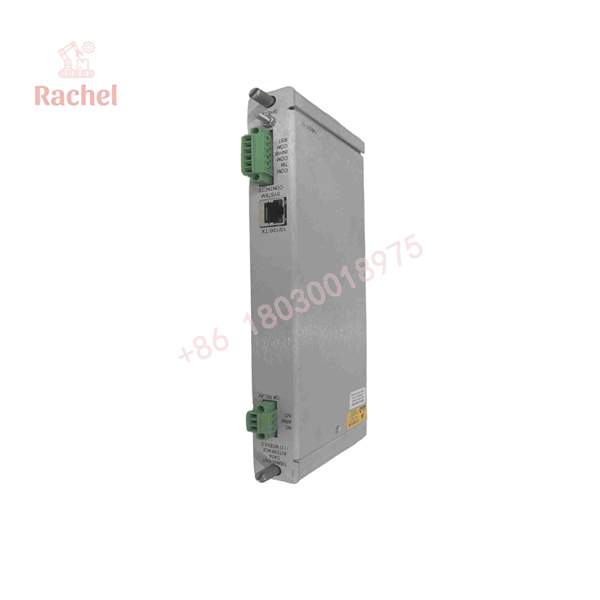

146031-01

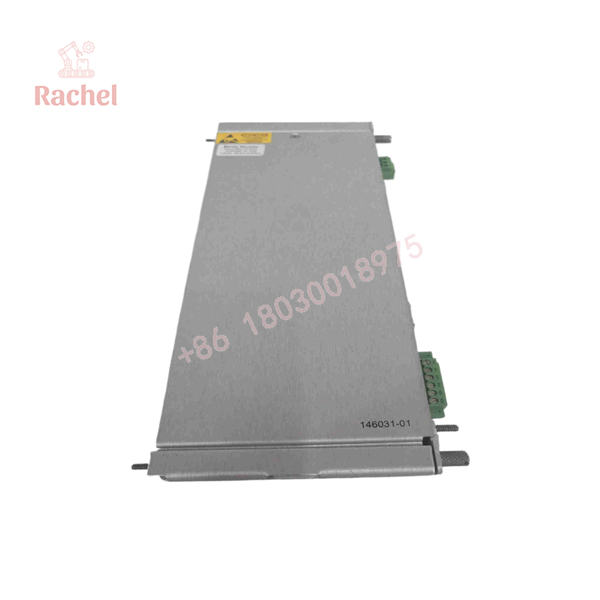

146031-01
Transparency SOP: QA & Testing
A communication interface module requires both hardware inspection and network validation.
QA process:
1. Incoming inspection
- Verify Bently Nevada identification label
- Confirm part number and revision information
- Inspect Ethernet connector condition
- Check rack interface pins
2. Electrical verification
- Confirm 24 VDC input behavior
- Check power consumption characteristics
- Verify module startup sequence
- Inspect status indicators
3. Communication testing
- Test Ethernet link establishment
- Verify host communication
- Confirm rack recognition
- Record diagnostic results
The tested module should be matched with the existing 3500/22M configuration before installation.
The Veteran’s Tech Trap Guide
⚠️ Do not replace the module before checking network configuration.
An incorrect IP address, damaged Ethernet cable, or software communication setting can create symptoms identical to a failed I/O module.
⚠️ Verify the correct Ethernet version.
The 146031-01 uses copper Ethernet (10Base-T/100Base-TX). Fiber-based versions such as 146031-02 are not direct substitutes.
⚠️ Remember the TDI architecture.
The 146031-01 is not a standalone monitoring processor. It works as part of the 3500/22M TDI system and depends on the associated rack configuration.
PRO TIP: Before removing the failed module, record the existing network parameters, System 1 communication settings, and rack slot arrangement.
Dynamic FAQ
Q1. What is the Bently Nevada 146031-01 used for?
The 146031-01 is a 3500/22M Transient Data Interface Ethernet I/O module used to connect Bently Nevada 3500 monitoring systems with host diagnostic software.
Q2. Is the 146031-01 the complete 3500/22M TDI module?
No. The 146031-01 is the Ethernet I/O module component used with the 3500/22M TDI system. The complete TDI assembly includes additional hardware components.
Q3. What communication interface does the 146031-01 support?
The module supports 10Base-T and 100Base-TX Ethernet communication.
Q4. Can 146031-01 replace 146031-02?
Not always. The two versions use different network interfaces. The -01 version is designed for copper Ethernet, while other versions may support different communication media. Confirm the installed configuration before replacement.
Q5. Is Bently Nevada 146031-01 available as new surplus?
Availability depends on supplier inventory. Units may be supplied as new surplus, unused stock, tested used, or refurbished 3500 Series spare modules.
Q6. How should a refurbished 146031-01 be tested?
Testing should include physical inspection, power verification, Ethernet communication checks, rack compatibility testing, and confirmation of communication with the host monitoring software.
Q7. What warranty is normally provided for this module?
Warranty coverage depends on supplier condition classification. New surplus and refurbished Bently Nevada modules usually have different warranty terms that should be confirmed before purchase.
