Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 3500/42M |
| Part Number | 140734-02 |
| Product Type | Proximitor®/Seismic Monitor |
| Number of Channels | 4 |
| Supported Sensors | Proximity Probes, Velometers, Accelerometers, Seismoprobe Sensors |
| Measured Parameters | Radial Vibration, Shaft Absolute, Thrust Position, Differential Expansion, Eccentricity, Velocity, Acceleration, REBAM® |
| Configuration | 3500 Rack Configuration Software |
| Rack Compatibility | 3500 Series Machinery Protection Rack |
| Recorder Outputs | Individual outputs for each channel |
| Communication | Through 3500 Rack Backplane and TDI/RIM Module |
| Compliance | API 670 Machinery Protection |
The monitor channels are programmed in pairs, allowing each channel pair to perform one monitoring function while the second pair performs the same or a different function.
Product Introduction
The Bently Nevada 3500/42M 140734-02 is one of the most widely used monitoring modules in the 3500 Machinery Protection System. It provides continuous online monitoring of both shaft-related and casing-related machine conditions by accepting signals from eddy-current proximity probes and seismic sensors.
Typical monitored parameters include:
- Radial shaft vibration
- Shaft absolute vibration
- Axial (thrust) position
- Differential expansion
- Shaft eccentricity
- Velocity
- Acceleration
- REBAM® (Rolling Element Bearing Activity Monitor)
- Circular Acceptance Region
The module continuously compares measured values against configured Alert and Danger setpoints and generates alarms when thresholds are exceeded, enabling early fault detection and machinery protection.

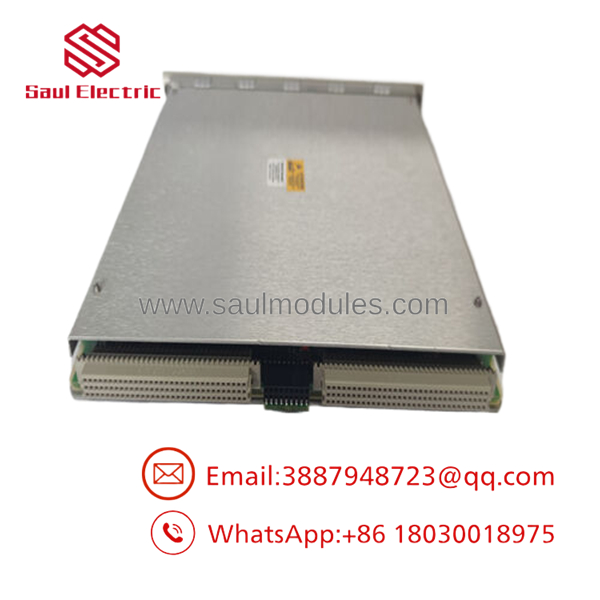

- 3500/42M 140734-02

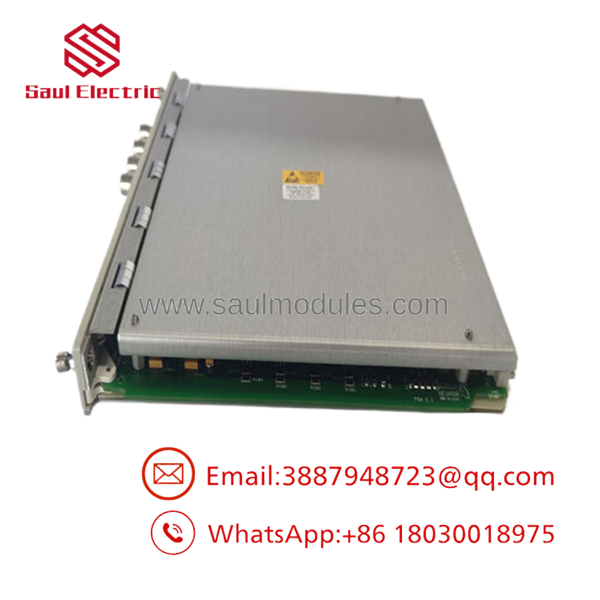

- 3500/42M 140734-02
Typical Applications
The 3500/42M is commonly installed on:
- Steam turbines
- Gas turbines
- Centrifugal compressors
- Reciprocating compressors
- Industrial pumps
- Large electric motors
- Generators
- Gearboxes
- LNG facilities
- Refineries
- Petrochemical plants
- Power generation stations
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Recommended Action |
|---|---|---|---|
| Channel Not OK | Sensor wiring fault | ✅ High | Verify probe or accelerometer wiring and power |
| High vibration alarm | Actual machine vibration | ✅ High | Confirm using a portable vibration analyzer |
| Gap voltage abnormal | Incorrect probe gap | ✅ High | Check probe installation and gap voltage |
| Velocity/Acceleration reading unavailable | Wrong transducer configuration | ✅ High | Verify sensor type and channel configuration |
| REBAM alarm | Rolling-element bearing defect | ⚠️ Medium | Inspect bearing condition and lubrication |
| Module OK LED off | Rack power supply fault | ⚠️ Medium | Verify 3500 power supply and rack health |
| No communication | TDI/RIM or rack communication issue | ⚠️ Medium | Check the 3500/22M or legacy RIM module |
| Recorder output incorrect | Configuration mismatch | ⚠️ Medium | Verify recorder scaling and monitor setup |
Technical Note:
Field experience shows that most 3500/42M issues originate from:
- Damaged proximity probes
- Faulty accelerometers or velocity sensors
- Incorrect probe gap adjustment
- Cable or connector failures
- Improper channel configuration
The monitor module itself is generally highly reliable; external transducers and installation issues are more common sources of faults.
Frequently Asked Questions (FAQ)
Q1. What is the Bently Nevada 3500/42M 140734-02?
It is a 4-channel Proximitor®/Seismic Monitor for the 3500 Machinery Protection System, designed to monitor shaft vibration, shaft position, acceleration, velocity, and other critical machinery parameters for continuous protection.
Q2. Which sensors are supported?
The module supports a range of Bently Nevada transducers, including:
- 3300 XL® 8 mm Proximity Probe Systems
- 3300 NSv® Proximity Systems
- Velomitor® sensors
- Accelerometers
- Seismoprobe® velocity transducers
The supported sensor types depend on the installed I/O module and channel configuration.
Q3. What measurements can the module perform?
Depending on configuration, the 3500/42M can monitor:
- Radial vibration
- Shaft absolute vibration
- Thrust position
- Differential expansion
- Eccentricity
- Velocity
- Acceleration
- REBAM®
- Circular Acceptance Region
Each pair of channels can be independently configured for different measurement functions.
Q4. Does it work as a standalone monitor?
No. The 3500/42M is a rack-mounted module and must be installed in a Bently Nevada 3500 Rack equipped with a 3500/22M Transient Data Interface (TDI) or legacy Rack Interface Module (RIM), power supplies, and the appropriate I/O modules.
Q5. Is Part Number 140734-02 still available?
The 140734-02 version has been listed by several distributors as discontinued, with some recommending 176449-02 as an upgrade or replacement option, subject to system compatibility verification. Existing units are often available as surplus inventory or professionally refurbished modules.
Q6. What should be verified before ordering?
Before purchasing or replacing a 3500/42M 140734-02, verify:
- Complete model and part number
- I/O module type
- Sensor type (proximity or seismic)
- Rack slot assignment
- Channel configuration
- Firmware compatibility
- Alarm and danger setpoints
- Rack configuration backup
Performing a full backup of the 3500 rack configuration and documenting the existing channel settings before replacement can significantly reduce commissioning time and help ensure seamless system operation.
