Product Introduction
The Bently Nevada 3500/42M-01-00 is a complete 4-channel proximity and seismic monitoring assembly. The suffix ordering code (-01-00) defines the exact hardware bundle: the standard 3500/42M front main monitor module (135489-01), a standard Prox/Seismic Rear I/O module (128229-01), and standard Euro-style screw terminal connectors without internal safety barriers.
This specific configuration serves as the primary machinery protection building block across global industrial plants. It processes dynamic voltage and current signals from eddy current probes, Velomitor sensors, and accelerometers. By conditioning static gap measurements alongside overall vibration amplitudes, the 3500/42M-01-00 delivers hardware-level alarm trips to backplane relays while streaming high-integrity diagnostic waveforms to Bently Nevada System 1 software.
Key Technical Specifications
| Parameter | Specification Value |
| Ordering Code | 3500/42M-01-00 (01 = Standard Prox/Seismic I/O, 00 = Standard Technical Approval) |
| Main Card / Rear I/O Assembly | 135489-01 (Front Module) + 128229-01 (Rear I/O Module) |
| Channel Count | 4 fully independent, software-configurable channels |
| Supported Sensors | 3300 XL Proximitors, Velomitors, Piezo-velocity, Accelerometers |
| Field Wiring Connection | Standard Euro-Style removable screw terminal blocks |
| Signal Processing | Radial Vib, Axial Thrust, Eccentricity, Casing Acceleration, REBAM |
| Transducer Power Rail | Dedicated -24 VDC output per channel (short-circuit protected) |
| Buffered Signal Outputs | 4 Front-Panel coaxial BNC outputs (100 Ω impedance) |
| Power Consumption | 7.7 Watts typical |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
When an unbalance condition or bent shaft develops on an unspared induced draft fan, casing vibration alone might look normal while the shaft journal is actively destroying the fluid-film bearing sleeve. By the time the casing sensor notices the imbalance, the bearing housing is cracked.
The 3500/42M-01-00 combines shaft displacement and casing velocity processing into one card assembly, capturing internal shaft orbit distortion and external housing stress simultaneously.
- Refineries – Main Charge Gas Compressors: Reading orthogonal X-Y proximity probe pairs to monitor shaft orbits and prevent catastrophic impeller-to-casing contact.
- Power Generation – Boiler Feed Water Pumps: Monitoring axial thrust movement and journal vibration under heavy thermal cycling.
- Mining & Metals – Heavy Crusher Drives: Measuring high-g casing acceleration on rolling-element bearings using piezoelectric accelerometers.
Field Case Scenario: A combined-cycle plant experienced a sudden trip fault on channel 2 of a critical cooling water pump monitor. The local tech assumed the field probe had failed, but a quick multimeter check showed the field wiring was fine. The issue was an internal breakdown on the channel 2 signal conditioning path of an old 128229-01 Rear I/O module caused by dirty ambient air in the control cabinet. We swapped in a pre-tested 3500/42M-01-00 assembly from surplus inventory, re-terminated the Euro-style pluggable block in under five minutes, and brought the cooling system back online without having to touch the field wiring terminations wire-by-wire.

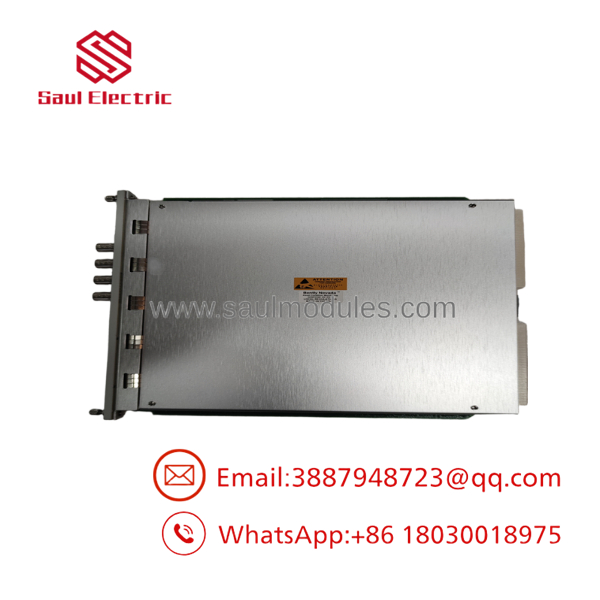

3500/42M-01-00

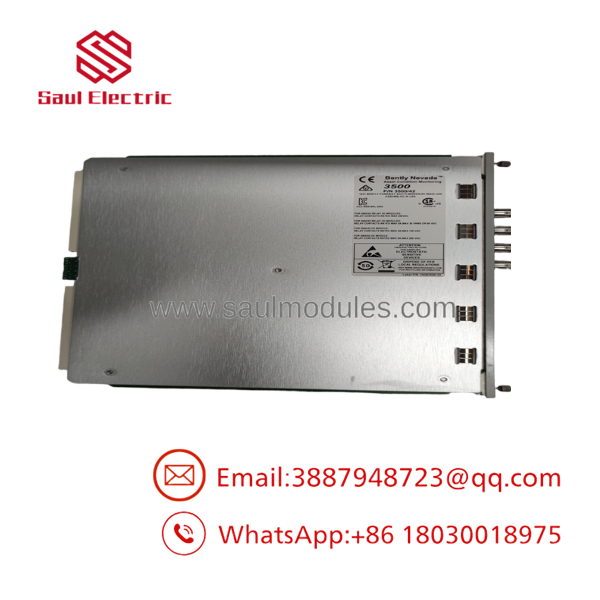

3500/42M-01-00
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.
- Inbound Visual & Pin Inspection: We check board traces, look for stressed power components, examine backplane gold fingers, and verify that the Euro-style terminal headers on the 128229-01 rear module are undamaged.
- Backplane Handshake & POST: The front 135489-01 main board and 128229-01 rear module are mated in a live 3500 test rack. We execute Power-On Self-Tests (POST) to verify communication with the 3500/22M interface card without rack error indicators.
- Signal Injection & Scale Verification: Using calibrated signal generators and 3300 XL Proximitor loops, we inject dynamic AC/DC signals into all 4 channels on the rear Euro-block to verify gap voltage, peak-to-peak amplitude accuracy, and Alert/Danger relay trigger levels.
- Buffered BNC Output Check: Every front-panel BNC jack is connected to an oscilloscope to guarantee clean, unattenuated buffered signal pass-through.
- Anti-Static Packaging: Tested assemblies are sealed in Faraday ESD shielding bags with custom foam protection.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Confirm Your Ordering Options Match: The
-01in 3500/42M-01-00 specifies the 128229-01 Standard Prox/Seismic Rear I/O. If your existing rack uses Internal Barriers (-02/ 135613-01) or Internal Terminators (-03), plugging a-01Rear I/O card into that slot will mess up field wiring connections and blow channel power fuses. Always match the option codes on the side label of the old module before ordering. - ❗ Do Not Pull Terminal Plugs Under Power: While the front 135489-01 module is hot-swappable, pulling the live Euro-style terminal block off the 128229-01 rear module while field transducer power (-24 VDC) is active can short adjacent pins. This can trip the card’s onboard solid-state fuses or send a false trip signal down your Danger relay loop.
- ⚠️ Check Software Sensor Type Configuration: Swapped cards retain no memory of their channel assignments—settings live in the 3500/22M System Rack Interface. If your replacement card lights up with a red “Not OK” LED on slot power-up, connect with Bently Nevada 3500 Rack Configuration Software and re-send the saved
.3500rack file to sync the channel profiles.
Frequently Asked Questions (FAQ for Conversion)
Q: What do the “-01-00” suffix codes stand for on the 3500/42M?
A: The first suffix (-01) defines the I/O Module Type, which is the Standard Prox/Seismic I/O Module with Euro-style screw terminals (part 128229-01). The second suffix (-00) specifies Standard Agency Approvals (CSA, CE, UL).
Q: Does the 3500/42M-01-00 come with the rear terminal block included?
A: Yes. A complete 3500/42M-01-00 package consists of both the front main processing module (135489-01), the rear Prox/Seismic I/O module (128229-01), and the removable Euro-style screw terminal connector plugs.
Q: Is the 3500/42M-01-00 hot-swappable?
A: Yes, the front main processing module can be hot-swapped while the rack is powered. To be honest, swapping cards tied to active shutdown logic carries risk—always bypass connected Danger relay channels in software before pulling the module.
Q: Can I use this card to monitor both proximity probes and accelerometers at the same time?
A: Yes. Each of the 4 channels on the 3500/42M card is individually programmable in software. You can configure channels 1 and 2 for Proximitor proximity probes (shaft vibration) and channels 3 and 4 for Accelerometers or Velomitors (casing vibration).
Q: What warranty comes with this module assembly?
A: All our Bently Nevada 3500/42M-01-00 assemblies—whether factory-sealed new surplus or fully rig-tested units—come backed by our full 12-month replacement warranty.
