BENTLY NEVADA 3500/53 133396-01 Overspeed Detection I/O Module

Description

Product Introduction

The Bently Nevada 3500/53 133396-01 is the Overspeed Detection I/O Module used with the 3500/53 Electronic Overspeed Detection System. It is designed for steam turbines, gas turbines, compressors, and other high-value rotating assets where overspeed protection is a safety-critical requirement. The system is engineered to satisfy the overspeed protection requirements defined in API 670 and API 612.

Unlike the 3500/50M Tachometer Module, which focuses on speed monitoring, the 3500/53 is intended specifically for overspeed protection. In our field experience, this distinction is often misunderstood. One thing to watch out for is that the complete overspeed system requires redundant rack power supplies and proper voting logic. Simply replacing one module without verifying the entire system configuration can create unnecessary commissioning delays.

Key Technical Specifications

Verify the exact channel option, agency approval option, rack firmware revision, and rear I/O configuration using the OEM documentation before installation.

Application Scenarios & The “Trench” Experience

This is the kind of module you hope never has to prove its value.

A steam turbine suddenly accelerates after a governor malfunction. The control system attempts to recover, but acceleration continues. At that moment, the overspeed protection system—not the DCS—must make the shutdown decision within milliseconds. If that protection fails, the result can be catastrophic rotor damage and serious personnel hazards.

Typical Applications

• Power Generation — Steam turbine overspeed protection — Meets API overspeed protection requirements.
• Oil & Gas — Gas turbine compressor trains — Provides redundant overspeed detection for critical rotating equipment.
• Petrochemical Plants — Process compressors — Supports emergency shutdown logic during abnormal acceleration.
• Pipeline Stations — Turbine-driven compressors — Prevents rotor damage caused by governor failures.
• Industrial Cogeneration — Turbine-generator sets — Delivers dedicated overspeed protection independent of process control.

Typical Field Case

During a scheduled turnaround at a combined-cycle power station, maintenance engineers upgraded an aging overspeed protection rack. The replacement 3500/53 133396-01 module was installed alongside redundant power supplies and tested using simulated speed inputs. Functional testing confirmed correct 2oo3 voting logic before startup. The commissioning team completed proof testing in a single shift, avoiding additional turbine downtime before returning the unit to commercial operation.

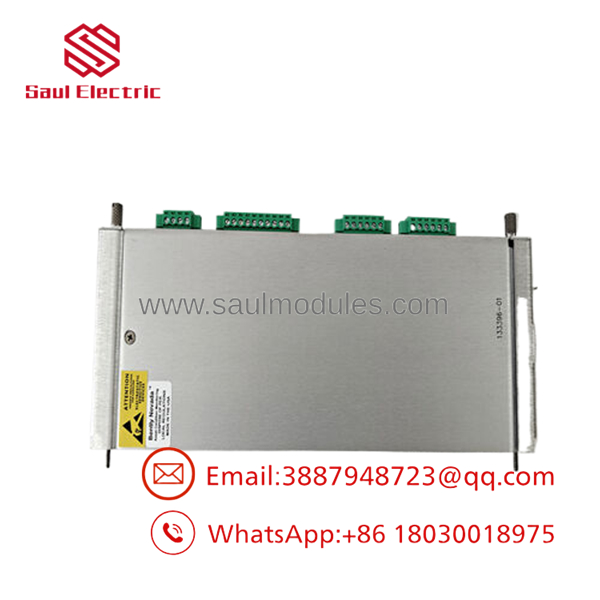

3500/53 133396-01

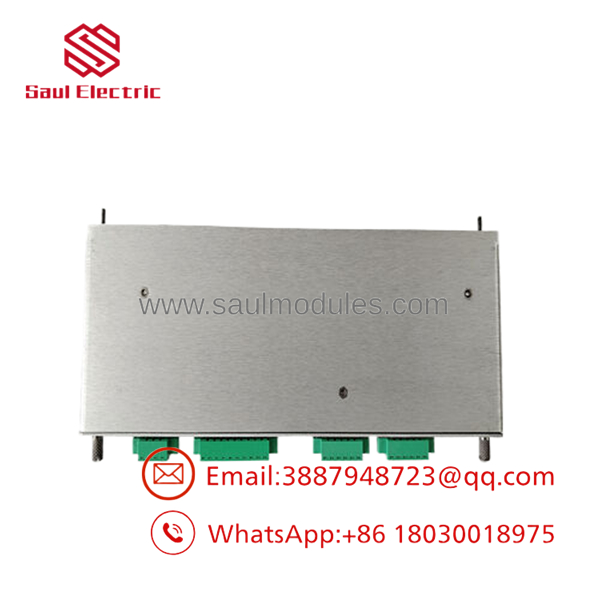

3500/53 133396-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks whenever practical.

• Inbound Inspection
  • Verify OEM labels and serial numbers
  • Inspect PCB coating and epoxy sealing
  • Check connector integrity
  • Examine enclosure for mechanical damage
• Live Rack Testing
  • Rack power-up verification
  • Module recognition
  • Simulated overspeed inputs
  • Alarm relay verification
  • Voting logic confirmation
• Electrical Parameter Checks
  • Power consumption verification
  • Input channel testing
  • Recorder output calibration
  • Transducer supply voltage measurement
• Firmware Verification
  • Record firmware revision
  • Verify compatibility with rack firmware
  • Confirm hardware revision history
• Final QC & Packaging
  • Burn-in observation
  • Final functional inspection
  • Anti-static packaging
  • Shock-resistant export packaging
  • Serialized inspection report

The Veteran’s Tech Trap Guide

⚠️ Don’t Confuse the 3500/53 with the 3500/50M

They both receive speed signals, but they perform completely different jobs.

The 3500/50M is a monitoring module.

The 3500/53 is designed for electronic overspeed protection.

Installing the wrong module can leave a turbine without the intended protection architecture.

⚠️ Redundant Power Supplies Are Mandatory

The overspeed detection system requires dual redundant power supplies in the 3500 rack. Skipping redundancy defeats the system design and does not meet the intended protection architecture.

❗ Check Rack Firmware Before the Shutdown Window

If the module is being added to an existing rack, minimum firmware and software revisions are required. Discovering an outdated rack after the outage begins can easily consume an entire maintenance shift.

⚠️ Proof-Test the Entire Protection Loop

Replacing the module is only half the job.

Always verify:

• Probe polarity
• Simulated overspeed trip
• Voting logic
• Relay outputs
• Emergency shutdown interface

A module that powers up successfully is not necessarily a system that will trip correctly.

Frequently Asked Questions (FAQ)

Q1. Can the 3500/53 be hot-swapped?

No. Because it is part of a machinery protection system, replacement should follow the plant’s approved maintenance and lockout procedures.

Q2. Is the 3500/53 the same as the 3500/50M?

No.

• 3500/50M: Machinery speed monitoring.
• 3500/53: Electronic overspeed protection.

They are designed for different safety functions and are not interchangeable.

Q3. Does the 3500/53 support redundant voting?

Yes. It supports 2oo2 and the recommended 2oo3 voting architecture for high-integrity overspeed protection applications.

Q4. Are redundant rack power supplies required?

Yes. The Electronic Overspeed Detection System requires a 3500 rack equipped with redundant power supplies.

Q5. What warranty is typically available?

Most reputable industrial automation suppliers provide a 12-month warranty covering manufacturing defects and verified functional operation under normal industrial service conditions.

Q6. Why is this module less expensive than purchasing directly from the OEM?

Many available units originate from surplus inventories, modernization projects, or decommissioned facilities. Price differences usually reflect sourcing channels rather than functionality. Always request functional test records, firmware information, and serial-number traceability before purchasing.

Q7. How can I verify the module is genuine?

Request:

• Original nameplate photographs
• Serial-number verification
• Rack functional test report
• Firmware revision record
• Inspection checklist
• ESD-safe packaging documentation

A genuine 3500/53 133396-01 should include documented traceability and successful testing in a compatible Bently Nevada 3500 system rather than relying solely on cosmetic appearance.
