Product Introduction & Engineering Value
Few things disrupt a control room faster than an erratic speed spike trip on a critical asset. When your 3500/50M monitor stops seeing clean pulses from your proximity probes or passive magnetic pickups, the issue frequently traces right back to loose or corroded termination points at the rear of the rack.
The 133442-01 acts as the dedicated physical interface that brings those high-frequency pulse trains directly into the Bently Nevada backplane. By embedding Euro-style internal terminal strips directly onto the board, this card eliminates the signal loss and failure points associated with external breakout blocks. It provides noise filtration and precise signal pathing, ensuring your turbomachinery metrics remain accurate under brutal plant floor conditions.
Technical Specifications
- Channels Supported: 2 independent speed/frequency inputs.
- Input Signal Range: +10.0 Vdc to -24.0 Vdc maximum limits.
- Input Impedance: 20 kΩ standard non-TMR configuration.
- Transducer Compatibility: Eddy current proximity probe systems or passive magnetic pickups.
- Maximum Frequency: Up to 20 kHz maximum input frequency.
- Power Consumption: 5.8 Watts typical draw.
- Termination Form Factor: Fixed internal terminal blocks (Euro-style green headers).
- Operational Temperature: -30°C to +65°C (-22°F to +150°F).
- Analog Proportional Outputs: 4 to 20 mA or 0 to +12 Vdc recorder configurations.

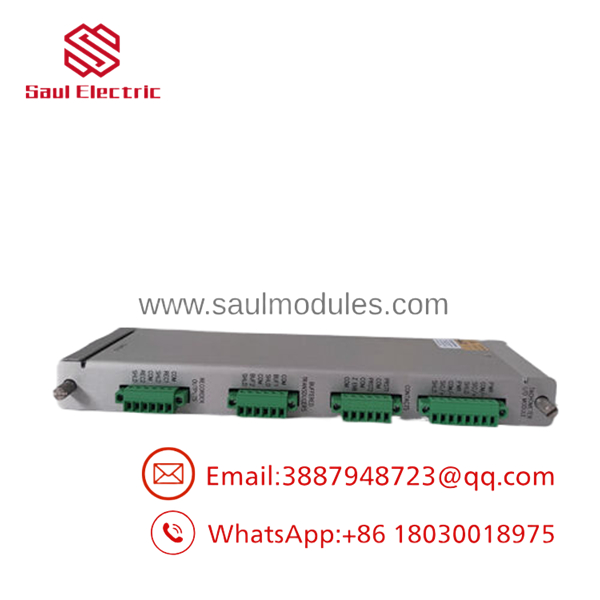

- 3500/50 133442-01

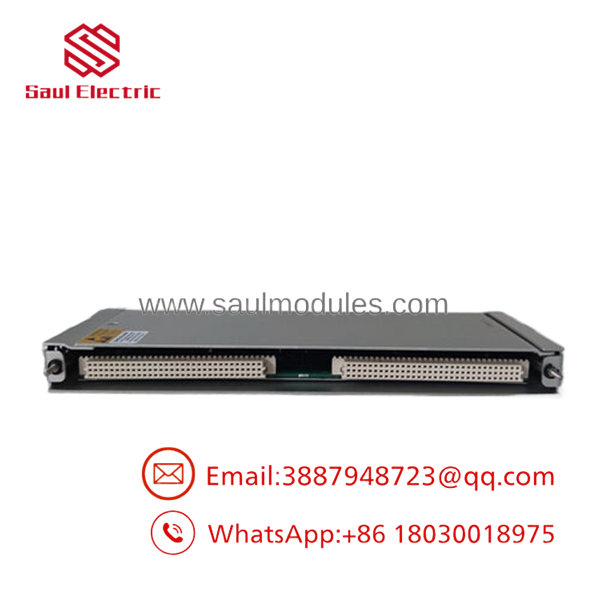

- 3500/50 133442-01
Field Application & The “Trench” Experience
During a winter turnaround at a Gulf Coast combined-cycle plant, a critical steam turbine failed to restart because the tachometer module kept dropping the speed signal below 400 RPM. The crew suspected a bad front monitor module, but swapping it changed nothing. Tracing the wires to the back of the panel revealed that vibration from an adjacent extraction line had sheared a secondary terminal wire leading to an old external termination block. We swapped out the existing external setup for a clean 133442-01 internal termination I/O card, landed the field wiring directly onto the green headers, and brought the speed signal back online instantly. The machine fired up safely without another erratic trip.
Specific Niche Applications:
- Syngas Compressor Speed Loop Guarding: Direct integration with proximity probes on high-speed synthesis gas trains to capture rotor acceleration trends.
- Hydroelectric Pelton Runner Tracking: Monitoring low-frequency rotation and zero-speed thresholds using dedicated eddy-current sensors.
- Boiler Feed Pump Reverse Rotation Sensing: Dual-channel phase configuration to alert operators if a discharge check valve fails and forces the pump backward.
Transparency SOP: QA & Testing
Every 133442-01 card passing through our inventory undergoes a multi-point component assessment before it reaches your facility. We inspect the physical trace layers, check the condition of the Euro-style green terminals, and clean all backplane gold fingers. Next, the card goes into a live Bently Nevada 3500 rack. We use a function generator to inject standard pulse frequencies up to 20 kHz across both channels, confirming that the internal signal filtering circuits do not attenuate or clip the voltage inputs. No item ships until the 3500/50M front monitor reports an “OK” status LED and logs clean data via the configuration software.
The Veteran’s Tech Trap Guide
⚠️ THE SPEED SENSOR POWER PITFALL: The 133442-01 provides power to your proximity sensors, but passive magnetic pickups do not require external power. If you are swapping an existing card that was running magnetic pickups, check your 3500 Rack Configuration software settings before connecting the new module to avoid frying the input stage or getting immediate sensor fault errors.
PRO TIP: When landing your field shielding wires, ensure they are grounded only at the designated rack grounding points provided on the 133442-01 block. Grounding both ends of a high-frequency tachometer cable creates a ground loop that introduces electromagnetic noise, resulting in false overspeed trips.
Dynamic FAQ
- Q: Can I use this I/O module in a Triple Modular Redundant (TMR) rack slot?
- A: No. The 133442-01 is built for standard, non-barrier simplex configurations. If your rack is running a TMR setup, you will need the 133450-01 TMR I/O module, which features an completely different internal input impedance structure.
- Q: What is the exact difference between this card and the 133434-01 module?
- A: The difference is purely down to wiring termination preference. The 133442-01 features built-in internal Euro-style screw terminals so you land wires directly onto the card. The 133434-01 uses multi-pin D-sub connectors designed to connect to an external termination block via an interface cable.
- Q: Is this module compatible with older 3500/50 cards, or does it require the 3500/50M?
- A: It works reliably with both standard 3500/50 and upgraded 3500/50M main monitor modules. The physical backplane pinouts for the tachometer data bus remained consistent across generations.
- Q: What kind of warranty coverage comes with your New Surplus inventory?
- A: Every Bently Nevada 133442-01 unit—whether sourced as New Surplus or fully refurbished—comes complete with our full 12-month operational warranty. If the card fails to clear its “OK” status indicator or exhibits channel degradation within the first year, we will issue a replacement or full refund.
