Description
Product Introduction
The Bently Nevada 3500/72M 140734-08 is a Recip Rod Position Monitor Module designed for the 3500 Machinery Protection System. It monitors piston rod position, rod drop, and related measurements on reciprocating compressors using proximity transducer inputs. The module is commonly installed in oil, gas, petrochemical, and power generation facilities.
The 3500/72M differs from standard vibration monitors because it focuses on mechanical position behavior rather than shaft vibration alone. It conditions proximity probe signals, performs measurement calculations, and compares values against configurable alarm thresholds inside the 3500 rack architecture.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Product Series | 3500 Machinery Protection System |
| Model | 3500/72M |
| Part Number | 140734-08 |
| Product Function | Reciprocating Rod Position Monitoring |
| Input Type | Proximity transducer signals |
| Number of Channels | 4 channels |
| Measurement Functions | Rod Position, Rod Drop, Hyper-compressor measurement |
| Input Impedance | 10 kΩ |
| Power Consumption | Approx. 7.7 W |
| Dimensions | 241.3 mm × 24.4 mm × 241.8 mm |
| Weight | Approx. 0.91 kg |
| Operating Platform | Bently Nevada 3500 Rack |
| Configuration Software | 3500 Rack Configuration Software |
Application Scenarios & The “Trench” Experience
A compressor trips during a high-demand production period. Operations blames the machine first. Maintenance checks the compressor. Mechanical inspection finds nothing obvious.
Then the instrumentation team discovers the problem: the Bently Nevada 3500/72M module has stopped processing rod position signals correctly.
This happens more often than many plants expect. The compressor itself may be fine. The protection layer is what failed.
Replacing a legacy monitoring module sounds simple until procurement discovers the original hardware has been installed for 15 years and the OEM delivery lead time does not match the plant shutdown window.
That is why many sites maintain tested spare 3500 modules.
Common Application Scenarios
Oil & Gas – Reciprocating Compressor Monitoring –
The 3500/72M is used to monitor piston rod position and rod drop conditions where compressor reliability directly affects production output.
Petrochemical Plants – Hydrogen and Process Gas Compressors –
Provides continuous rod position measurement for critical reciprocating equipment operating under high mechanical stress.
Pipeline Stations – Gas Compression Units –
Maintains machinery protection coverage in remote compression facilities where emergency repairs are expensive.
Power Generation – Auxiliary Compressor Systems –
Supports existing Bently Nevada 3500 installations without requiring a complete monitoring rack replacement.
Industrial Manufacturing – Large Reciprocating Machines –
Used where mechanical position monitoring helps identify wear, alignment issues, and abnormal piston movement.

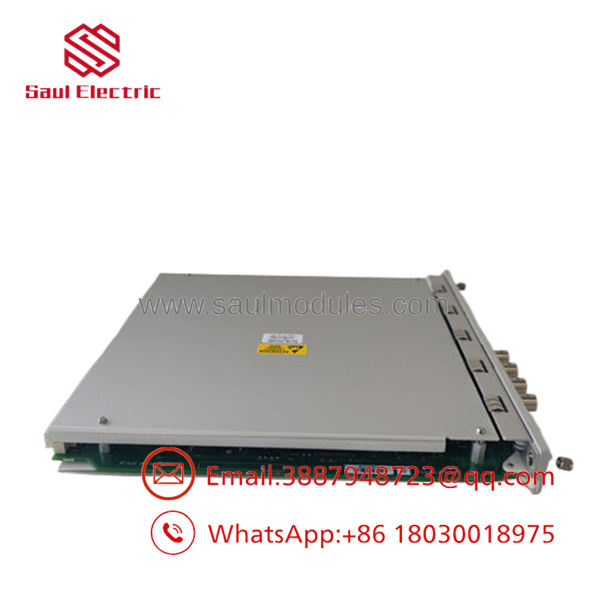

- 3500/72M 140734-08

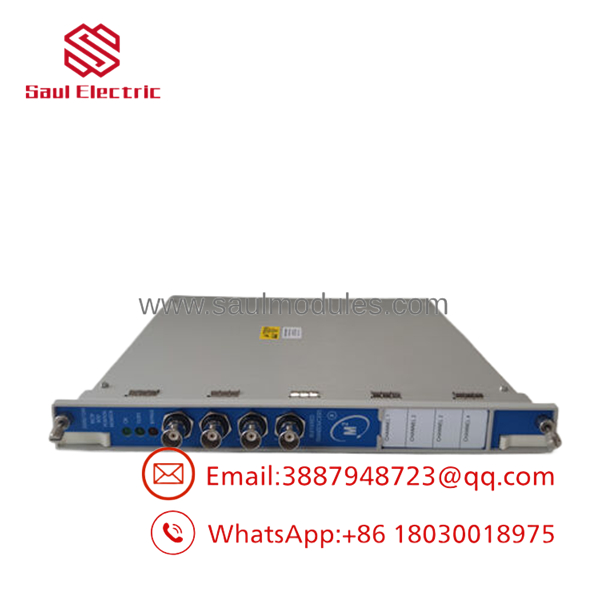

- 3500/72M 140734-08
Field Replacement Example
A refinery compressor experienced repeated false alarms during startup. The maintenance team verified the proximity probes and field wiring. Both were acceptable.
The investigation moved to the 3500 rack. The 3500/72M channel processing was unstable.
A tested Bently Nevada 3500/72M 140734-08 replacement was installed during the scheduled maintenance window. After configuration verification, the compressor protection system returned to normal operation.
The plant avoided an unnecessary compressor overhaul and prevented an extended production delay.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada 3500-compatible racks.
Incoming Inspection
- Verify OEM identification labels and part number markings.
- Confirm model number matches 3500/72M 140734-08 configuration.
- Inspect connectors, terminal interfaces, and rack edge contacts.
- Check for unauthorized repairs or damaged components.
- Record serial information and physical condition.
Live Rig Testing
- Power module inside a compatible 3500 rack.
- Confirm startup diagnostics and LED status.
- Verify communication with 3500 configuration software.
- Test channel recognition and configuration access.
- Simulate proximity probe input signals.
Electrical Parameter Checks
- Measure operating power consumption.
- Verify input response from simulated transducer signals.
- Check alarm threshold response.
- Confirm buffered signal output where applicable.
Firmware Verification
- Record available firmware revision information.
- Verify compatibility with existing 3500 rack configuration.
- Document firmware and hardware revision before shipment.
Final QC & Packaging
- Perform final inspection.
- Apply ESD protective packaging.
- Secure module against mechanical shock during transport.
- Provide test documentation when requested.
The Veteran’s Tech Trap Guide
⚠️ Do not replace a 3500/72M without checking the configuration file first.
The hardware may install correctly, but incorrect channel settings can create immediate alarm problems.
❗ Take a picture of the old module configuration before removal. Trust me.
Rod position alarms, alert levels, and danger thresholds are easy to overlook.
⚠️ Verify the proximity probe system.
A 3500/72M depends on correct probe compatibility, cable length, and signal characteristics. A bad probe setup can look like a failed monitor.
❗ Do not assume every 3500 module revision is identical.
Check exact part numbers. A similar-looking module may not support the same measurement functions.
⚠️ Respect ESD procedures.
These cards contain sensitive electronic circuits. One careless handling event can damage a spare before it reaches the machine.
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the Bently Nevada 3500/72M 140734-08?
A: It monitors reciprocating compressor rod position, rod drop, and related mechanical position measurements using proximity transducer inputs.
Q2: Is the 3500/72M 140734-08 hot-swappable?
A: It depends on the site-approved maintenance procedure and rack configuration. Do not assume live replacement is acceptable. Verify with the installed Bently Nevada 3500 system documentation before removing any module.
Q3: Can this replace another 3500/72M module directly?
A: Usually yes if the replacement has the same part number and compatible hardware revision. Always verify configuration parameters before returning the machine to service.
Q4: Why is this module cheaper than buying directly from Bently Nevada?
A: Industrial automation spare modules often come from surplus inventory, plant upgrades, and equipment lifecycle changes. Lower cost does not automatically mean lower quality. The important factors are inspection, testing, and traceability.
Q5: Is the 140734-08 module new or refurbished?
A: Availability varies. Some units are unused surplus stock; others are professionally refurbished. Request inspection records and test results before purchase.
Q6: What software is used to configure the 3500/72M?
A: The module is configured through Bently Nevada 3500 Rack Configuration Software. Channel functions and alarm settings are defined according to the machine protection requirements.
Q7: Does the 3500/72M replace a vibration monitor like 3500/42M?
A: No. These modules monitor different machine parameters. The 3500/72M focuses on reciprocating rod position measurements, while vibration monitors such as the 3500/42M handle proximity and seismic vibration monitoring.
Reference: Bently Nevada 3500 Machinery Protection System documentation identifies the 3500/72M as a four-channel reciprocating rod position monitor used for compressor condition monitoring applications.
