BENTLY NEVADA 3500/54-03-00 Electronic Overspeed Detection System

Description

Product Introduction

The Bently Nevada 3500/54-03-00 is part of the 3500 Electronic Overspeed Detection System, developed for steam turbines, gas turbines, compressors, and other critical rotating equipment where overspeed protection is a safety function rather than a process monitoring function. It integrates with the 3500 Machinery Protection System and supports high-integrity shutdown applications that comply with API recommendations.

In our field experience, engineers often confuse overspeed monitoring with overspeed protection. They are not the same. The 3500/54-03-00 is intended for protective shutdown logic, while standard tachometer modules are intended for monitoring. Verify the complete rack configuration, redundant power supplies, firmware revisions, and I/O options before replacing any module in the protection chain.

Key Technical Specifications

Note: The suffix “-03-00” identifies a specific ordering configuration. Always verify the complete ordering code and hardware revision against the OEM documentation before purchasing replacement parts.

Application Scenarios & The “Trench” Experience

I’ve seen plants lose an entire weekend because someone assumed the turbine control system would handle an overspeed event by itself.

It won’t.

When the governor sticks or a control valve fails open, the protection system has only milliseconds to react. That’s exactly why dedicated overspeed protection exists.

Typical Applications

• Power Generation — Steam turbine overspeed protection — Independent shutdown logic for turbine safety.
• Oil & Gas — Gas turbine compressor trains — Detects dangerous rotor acceleration before mechanical damage occurs.
• Petrochemical Plants — Process compressors — Protects high-value rotating assets during upset conditions.
• Pipeline Stations — Turbine-driven compressors — Supports emergency shutdown functions.
• Industrial Cogeneration — Turbine-generator packages — Provides dedicated overspeed protection independent of the DCS.

Typical Field Case

A combined-cycle power plant scheduled a major outage to replace several aging protection modules. During commissioning, technicians discovered that one overspeed detection module carried the wrong ordering option. Mechanically, it fit the rack perfectly. Electrically, it did not match the existing I/O configuration. Fortunately, the mistake was caught during proof testing instead of turbine startup. The replacement was corrected before synchronization, avoiding a potentially expensive commissioning delay.

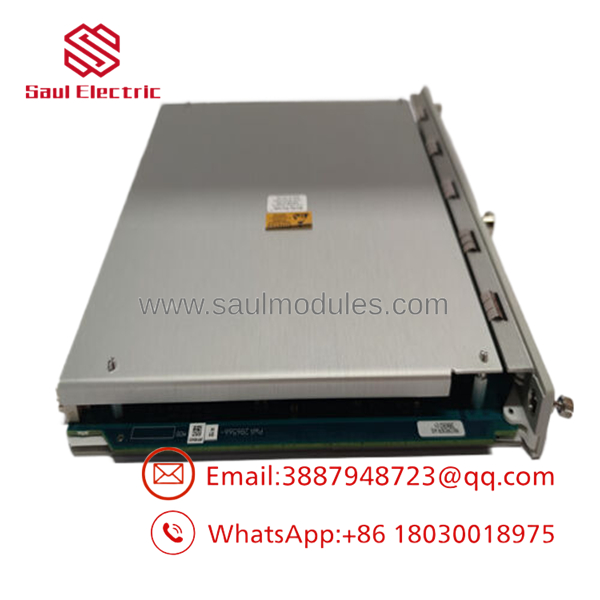

350054-03-00

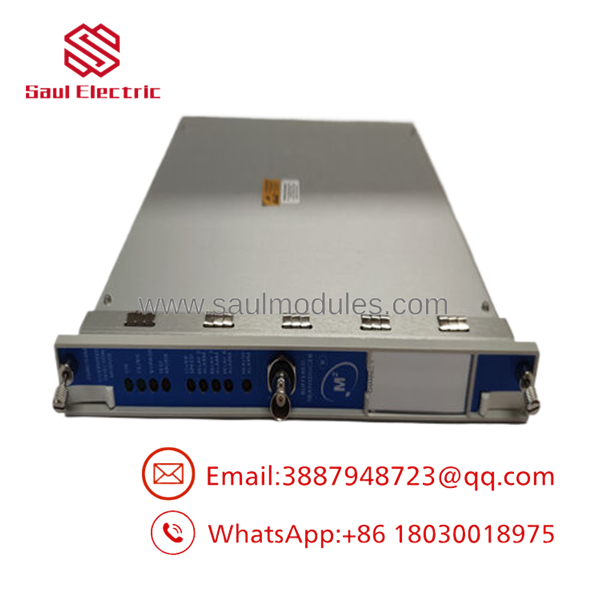

350054-03-00

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks whenever possible.

• Inbound Inspection
  • Verify OEM identification labels
  • Confirm serial number traceability
  • Inspect PCB coating and connectors
  • Examine enclosure for physical damage
• Live Rack Testing
  • Rack recognition verification
  • Power-up diagnostics
  • Configuration download
  • Simulated overspeed input testing
  • Relay output verification
• Electrical Parameter Checks
  • Input channel verification
  • Supply voltage confirmation
  • Output signal validation
  • Communication diagnostics
• Firmware Verification
  • Record firmware revision
  • Verify compatibility with installed rack software
  • Confirm hardware revision
• Final QC & Packaging
  • Functional burn-in
  • Final inspection checklist
  • Anti-static packaging
  • Shock-resistant export packaging
  • Serialized test documentation

The Veteran’s Tech Trap Guide

⚠️ Don’t Assume Every 3500 Module Is Interchangeable

The front modules may appear nearly identical, but different ordering codes use different rear I/O assemblies and configuration options. Always compare the complete part number—not just “3500/54.”

⚠️ Always Perform a Full Proof Test

Installing the module is only the beginning.

Verify:

• Sensor polarity
• Trip setpoints
• Relay outputs
• Shutdown logic
• Complete turbine trip sequence

Powering up successfully does not prove the protection system will trip correctly.

❗ Check Rack Firmware Before the Shutdown Begins

Nothing wastes outage time faster than discovering a firmware mismatch after the rack has already been disassembled. Compare firmware revisions before maintenance starts.

⚠️ Maintain Redundant Power Supplies

Overspeed protection is designed around system availability. Operating without the intended redundant power architecture reduces fault tolerance and can compromise the protection strategy.

Frequently Asked Questions (FAQ)

Q1. Can the 3500/54-03-00 be replaced while the rack is energized?

No. Follow approved lockout/tagout procedures and the maintenance instructions for the 3500 Machinery Protection System before replacing protection modules.

Q2. Is this module the same as a 3500/50M Tachometer Module?

No.

• 3500/50M performs machinery speed monitoring.
• 3500/54-03-00 is part of an electronic overspeed protection system intended for protective shutdown applications.

These products serve different purposes and are not interchangeable.

Q3. Does this system comply with API 670?

Yes. The 3500 Machinery Protection System is designed to meet the requirements of API 670 for continuous online machinery protection when installed and configured correctly.

Q4. Are redundant power supplies recommended?

Yes. Critical protection systems should use the redundant power supply capability provided by the 3500 rack architecture to maximize system availability.

Q5. What warranty is typically available?

Most qualified industrial automation suppliers provide a 12-month warranty covering manufacturing defects and verified functional operation under normal industrial service conditions.

Q6. Why is this module often less expensive than buying directly from the OEM?

Many units originate from surplus inventories, modernization projects, or plant decommissioning. Price differences usually reflect sourcing channels rather than reduced functionality. Always request a rack functional test report and traceability documentation.

Q7. How can I verify that a 3500/54-03-00 is genuine?

Request the following before purchasing:

• Original nameplate photographs
• Serial-number verification
• Rack functional test report
• Firmware revision record
• Inspection checklist
• ESD-safe packaging documentation

A genuine unit should include documented traceability and successful testing in a compatible Bently Nevada 3500 system—not simply a cosmetic inspection.
