Bently Nevada 3500/92 136188-02 Ethernet & RS-485 Modbus I/O

Description

Product Introduction & Engineering Value

We have all dealt with the headache of needing to stream machinery protection data to two entirely different platforms at once—like trying to feed high-resolution diagnostics to an engineering server while sending fast, basic registers to a legacy control system. Traditionally, this required stacking multiple gateway modules or adding expensive external signal converters that only introduced more points of failure to your cabinet.

The Bently Nevada 136188-02 I/O module completely eliminates this hardware clutter by providing both Ethernet TCP/IP and serial RS-485 connectivity on a single rear card. Slotted directly behind the 3500/92 gateway, it lets you establish a Modbus TCP link on its RJ-45 port alongside a multi-drop Modbus RTU serial loop. This allows you to handle administrative configuration, diagnostic client access, and local DCS integration simultaneously through a single slot.

Technical Specifications

• Ethernet Connection: 1x RJ-45 connector (designed for 10BASE-T star networks).
• Serial Port: 1x 9-pin D-SUB port configured for RS-485 differential serial communications.
• Ethernet Protocol: Modbus TCP/IP, supporting concurrent TCP socket connections.
• Serial Protocol: Modbus RTU (serial).
• Baud Rates: Configurable from 9,600 bps to 115,200 bps.
• Power Consumption: 5.6 Watts typical when paired with the 3500/92 main processor card.
• Isolation Protection: 500 Vdc galvanic isolation on the serial communication channel.
• Operating Temperature: -30°C to +65°C (-22°F to +149°F).
• Relative Humidity: 95% non-condensing.

Field Application & The “Trench” Experience

The “Trench” Story

We were called into a chemical processing plant during an unplanned outage where their old 3500/90 rack had lost serial communication. The plant was trying to pull both bearing temperatures into their SCADA network and transmit system configurations over a single serial loop. The line was completely saturated and kept timing out. Rather than adding a second rack or running expensive serial splitters, we upgraded their gateway to a 3500/92 and installed the 136188-02 I/O module in the rear. We split the workloads: we routed the primary DCS polling to the RJ-45 port via Modbus TCP/IP, and kept the localized diagnostic terminal on the RS-485 serial link. The network utilization issues instantly cleared up, and the operators had rock-solid, sub-second screen updates.

Specific Niche Applications

• Dual-Path Turbomachinery Telemetry: Running high-speed Modbus TCP to the main plant DCS while utilizing the RS-485 serial port to daisy-chain data to an on-skid PLC.
• Isolated Boiler Feed Pump Panels: Connecting local 3500 monitoring racks to remote RTUs across long-distance copper RS-485 runs while maintaining local Ethernet access for field technicians.
• Packaged Air Compressor Integration: Multi-drop serial monitoring configurations where the 136188-02 bridges older Modbus RTU loops into a modern plant-wide Industrial Ethernet network.

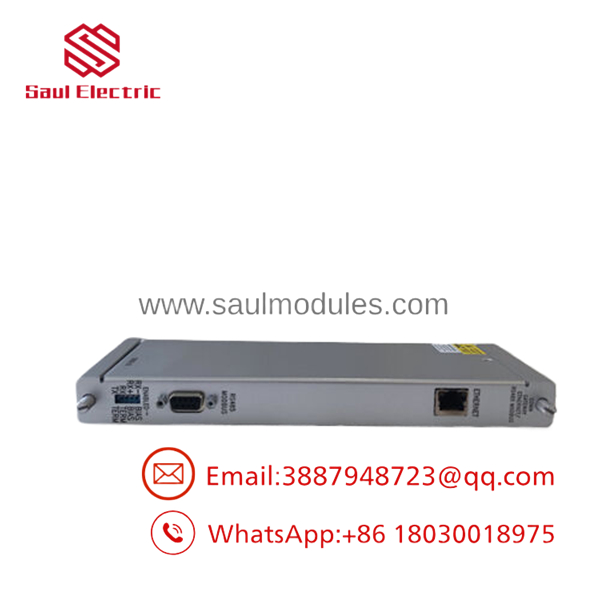

3500/92 136188-02

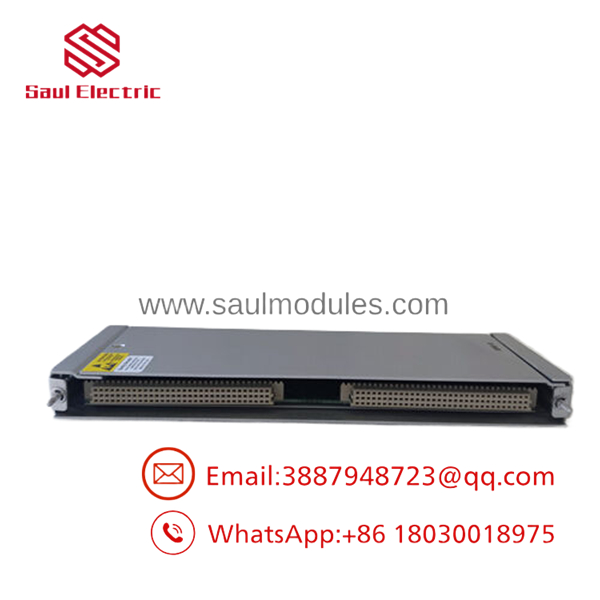

3500/92 136188-02

Transparency SOP: QA & Testing

Every 136188-02 card in our inventory undergoes a structured physical and functional verification protocol before shipment:

• Visual Microscopy Audit: We inspect the backplane pins, RJ-45 housing, and 9-pin serial connector under magnification to verify there are no stress fractures or cold solder joints.
• Ethernet Communications Test: The card is paired with a live 3500/92 main module. We establish a Modbus TCP connection and run a high-volume ping and data retrieval loop to check for latency or packet loss.
• RS-485 Signal Verification: Using an oscilloscope, we monitor the differential voltage wave on the serial lines at maximum baud (115.2 kbps) to ensure clean, spike-free rise/fall times.
• Dual-Port Loading: We run concurrent queries over both the Ethernet and serial ports simultaneously, validating that the card handles multi-protocol routing without memory freezes or data dropouts.

The Veteran’s Tech Trap Guide

• ⚠️ The Firmware Kit Trap: Many engineers order the 136188-02 as a direct drop-in replacement for older serial cards without realizing it often requires a firmware upgrade kit (Bently part number 126M4118-01) on the front 3500/92 module. If your front module has mismatched firmware, the card’s Ethernet port will link up physically, but the rack configuration utility will fail to recognize or map your Modbus registers.
• PRO TIP (Shared Address Constraints): Keep in mind that while you have two physical ports (Ethernet and Serial), they share the same internal Modbus Register map configured via the Configurable Modbus Register Utility. If you change a register coordinate to accommodate a new DCS polling address on Modbus TCP, it will simultaneously shift that address on the Modbus RTU serial side. Always verify compatibility with both hosts before editing maps.
• ⚠️ Port Speed Misconception: The RJ-45 Ethernet port on the 136188-02 is rated for 10BASE-T (10 Mbps) star networks, not 100 Mbps or 1 Gbps. If you connect this module to a managed network switch that is locked to a forced 100 Mbps or 1000 Mbps speed configuration, the link will fail to negotiate. You must configure the switch port to “Auto-Negotiate” or manually lock it to 10 Mbps Half/Full Duplex.

Dynamic FAQ

• Q: Can I use the Ethernet and Serial ports on the 136188-02 at the same time?
  • A: Yes. The 136188-02 is designed for simultaneous dual-port communication. You can poll registers via Modbus TCP on the RJ-45 port while simultaneously running a Modbus RTU serial query on the 9-pin RS-485 port.
• Q: Does this I/O module work with the older 3500/90 gateway module?
  • A: No. The 136188-02 is designed specifically for the updated 3500/92 Communication Gateway. It is not backward compatible with the older 3500/90 series front cards due to different pinouts and processing architectures.
• Q: What is the difference between this module and the 136188-01?
  • A: The 136188-01 module provides an Ethernet port paired with an RS-232 serial port. This module, the 136188-02, replaces the RS-232 port with an RS-485 serial interface, making it much better suited for long-distance, noise-resistant industrial networks.
• Q: Are there internal jumpers on this board that need to be set before installation?
  • A: Yes. The board features hardware jumpers to select the serial line bias and termination options for the RS-485 port. If this rack is at the end of your physical serial line, you should enable the onboard 120-ohm termination resistor via these jumpers to prevent signal reflection.
