Description
Product Introduction & Engineering Value
When a heavy industrial steam turbine or high-speed compressor spikes past its safe operating velocity, milliseconds make the difference between a controlled emergency trip and catastrophic rotor failure. Relying on standard PLC speed-tracking cards introduces control-loop latencies that simply cannot process safety-critical shutdown sequences fast enough. The Bently Nevada 3500/53 133388-01 is engineered specifically to eliminate this dangerous propagation delay.
By running independent, high-frequency input channels that connect directly to physical speed sensors, this overspeed card executes shutdown logic locally on the hardware level. It provides immediate response times to safeguard your machinery. Built to conform strictly to API 670 and API 612 guidelines, the module handles voting logic internally, serving as a dedicated safety firewall that isolates your most valuable rotating assets from slow control networks.
Technical Specifications
| Parameter | Specification Detail |
| Input Channels | 2 independent speed/frequency channels per module |
| Sensor Compatibility | Passive magnetic pickups or eddy-current proximity probes |
| Signal Input Range | +10.0 Vdc to -24.0 Vdc maximum limits |
| Input Impedance | 20 kΩ standard |
| Power Consumption | 8.0 Watts typical draw |
| Onboard Relays | SPDT (Single-Pole, Double-Throw), epoxy sealed |
| Relay Contact Rating | 5 A @ 24 Vdc / 120 Vac (resistive load) |
| Recorder Output | 4 to 20 mA proportional to configurable full-scale RPM |
| Standards Compliance | API 670 (Machinery Protection), API 612 (Steam Turbines) |
| Operating Temp | -30°C to +65°C (-22°F to +150°F) |

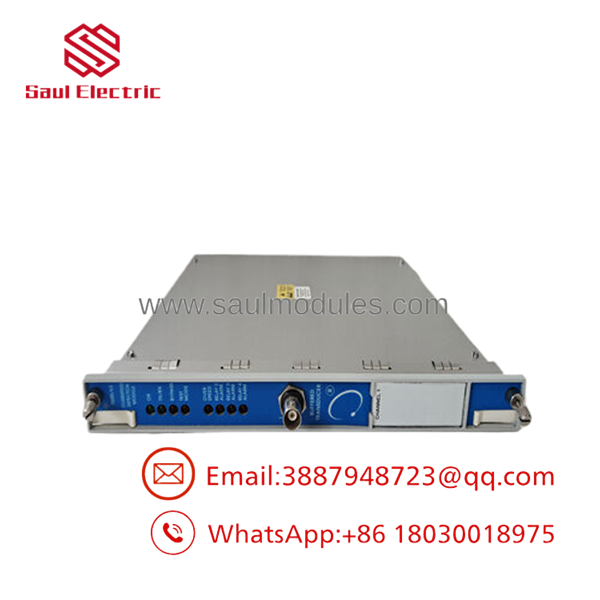

- 3500/53 133388-01

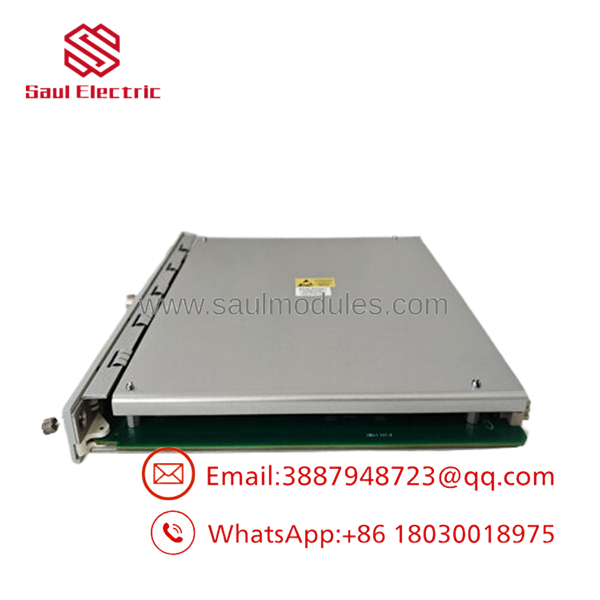

- 3500/53 133388-01
Field Application & The “Trench” Experience
During a winter storm at an ethylbenzene plant, high levels of electrical noise from an adjacent switchgear failure began coupling onto the speed-sensing lines of a critical charge gas compressor. The plant’s legacy non-voted speed monitor interpreted this electromagnetic interference (EMI) as a real run-away overspeed condition, triggering an immediate, false emergency shutdown that cost the facility hundreds of thousands of dollars in downtime.
To resolve this vulnerability, we replaced the setup with three Bently Nevada 3500/53 modules configured in a 2-out-of-3 (2oo3) hardware-voted arrangement. When similar power-line transients occurred several months later, the 133388-01 modules successfully cross-referenced the inputs. Because the noise only spiked a single channel’s frequency, the internal voting logic filtered the anomaly, maintained normal operations, and prevented another costly, unnecessary trip.
Specific Niche Applications:
- Syngas Compressor High-Speed Guarding: Interfacing directly with high-frequency magnetic pickups to detect immediate coupling slip or shaft shearing.
- Steam Turbine Emergency Trip System (ETS) Integration: Wiring the onboard SPDT relays directly to the high-pressure steam trip valve solenoids to ensure instantaneous pressure release.
- Reheat Turbine Runaway Interlocking: Continuous microsecond-level rate-of-acceleration monitoring on dual-shaft power generation systems.
Transparency SOP: QA & Testing
Every 133388-01 overspeed detection module we handle is put through a rigorous simulated operating environment before it leaves our test lab. We place the card into a live, fully powered Bently Nevada 3500 rack and attach precise signal-generation instruments to the speed inputs. We run the frequency sweeps past configured alert and danger setpoints to confirm that the onboard SPDT relays transition cleanly and without latency. Finally, the unit is subjected to a continuous thermal burn-in test under load, verifying that the card draws normal power (~8.0 Watts) and maintains active communication with the rack interface without flagging system faults.
The Veteran’s Tech Trap Guide
⚠️ REDUNANT POWER MANDATE: You cannot run the 3500/53 overspeed detection system in a 3500 rack that only has a single power supply. For critical safety reasons, the overspeed system firmware checks the backplane state and requires that the rack be populated with redundant (dual) power supplies to clear its system OK relay.
PRO TIP: When replacing a 133388-01, pay close attention to your relay contact suppression. If you are using the onboard relays to directly drive highly inductive loads (like heavy-duty trip solenoids), ensure you install external flyback diodes or RC snubbers. Failing to suppress inductive kickback will rapidly pit and weld the contacts of the module’s SPDT relays, rendering the safety system useless.
Dynamic FAQ
- Q: Can I combine multiple 3500/53 modules to create a 2-out-of-3 voting system?
- A: Yes. While a single module can operate in a simplex configuration, the 3500/53 is designed so that multiple modules can be linked on the backplane to establish a highly reliable 2-out-of-2 or 2-out-of-3 voting block.
- Q: Does this card provide power to my speed sensors?
- A: Yes. The 133388-01 module provides a dedicated -24 Vdc transducer power supply (up to 40 mA maximum) to power active proximity probes. If you are utilizing passive magnetic pickups, you do not use this power loop.
- Q: Is this card’s firmware compatible with any Bently Nevada 3500 rack monitor?
- A: The overspeed detection module requires specific firmware compatibility matching your other rack monitor configurations. When ordering, provide your existing rack firmware version so we can pre-flash or verify the matching EEPROM on the card.
- Q: What warranty coverage do you provide on “New Surplus” units?
- A: We provide a comprehensive 12-month warranty on all New Surplus and fully reconditioned 133388-01 modules. This covers component defects, relay failures, and signal input degradation.
