Bently Nevada 3500/93 135785-02C System Display Module

Description

Product Introduction

The Bently Nevada 3500/93 135785-02C is the dedicated System Display Module for the 3500 Machinery Protection System. It provides operators and maintenance personnel with a local or remote graphical view of machinery protection data, including vibration values, alarm status, relay conditions, Keyphasor information, and system events. The display is configured through 3500 Rack Configuration Software and can be installed directly on the rack or mounted remotely.

In our field experience, the 3500/93 is much more than a convenience. During troubleshooting, having machine data available directly at the equipment often saves repeated trips between the control room and the machinery train. One thing to watch out for is the mounting configuration—the required Display Interface Module (DIM) location changes depending on whether the display is face-mounted or installed remotely.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The turbine wasn’t tripped.

The vibration monitors were working.

The operators simply couldn’t see what was happening at the machine.

I’ve seen technicians spend hours walking between the turbine deck and the control room because the local display had failed. Every alarm acknowledgement required another trip. Replacing the 3500/93 restored immediate visibility and made troubleshooting far more efficient.

Typical Applications

Power Generation – Steam and Gas Turbines –
Displays vibration, thrust position, differential expansion, and alarm status directly at the turbine package.

Oil & Gas – Compressor Trains –
Provides local indication of machinery condition without relying solely on the DCS or SCADA.

Petrochemical Plants – API 670 Machinery Protection –
Allows maintenance personnel to review machine health, relay status, and event history at the equipment location.

Pipeline Stations – Remote Compressor Facilities –
Provides local monitoring where engineering workstations are not continuously available.

Industrial Manufacturing – Critical Rotating Equipment –
Offers quick access to machinery diagnostics during commissioning and maintenance activities.

Field Replacement Example

A combined-cycle power plant experienced intermittent communication with its operator workstation during a scheduled outage.

The protection rack continued operating normally.

Maintenance personnel, however, could not review machine status locally.

Replacing the 3500/93 135785-02C restored on-site visualization of vibration levels and alarm history, allowing startup checks to proceed without additional delays.

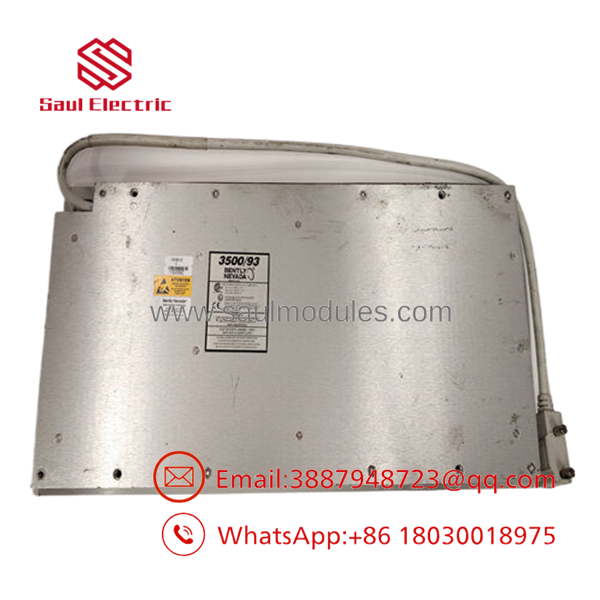

3500/93 135785-02C

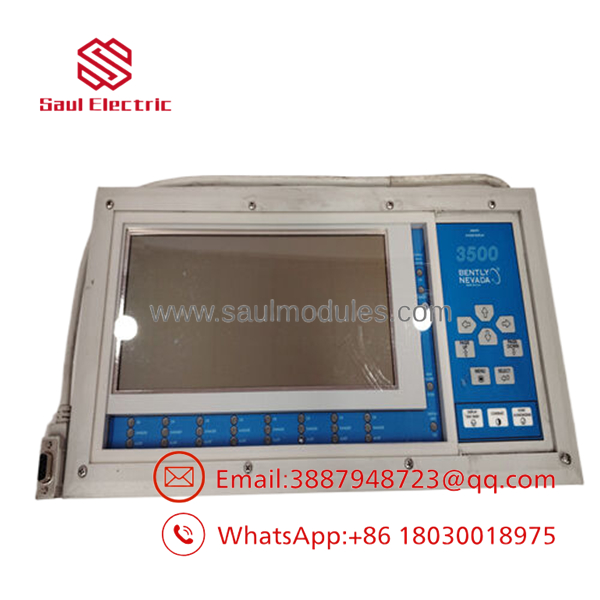

3500/93 135785-02C

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels, serial numbers, and hardware revision.
• Inspect LCD surface for scratches or dead pixels.
• Examine communication connectors and keypad operation.

2. Live Rig Testing

• Connect the display to a functioning 3500 rack.
• Verify boot sequence.
• Confirm live channel updates.
• Test alarm and event display functions.

3. Electrical Parameter Checks

• Measure operating current.
• Verify display brightness and contrast.
• Confirm communication with the Display Interface Module.

4. Firmware Verification

• Record firmware revision.
• Verify compatibility with the installed 3500 rack software.
• Confirm proper menu navigation and display refresh.

5. Final QC & Anti-Static Packaging

• Complete a full operational inspection.
• Package in ESD-safe materials.
• Protect the display during transportation.
• Maintain traceable inspection records.

The Veteran’s Tech Trap Guide

⚠️ Mounting method matters.
For face-mounted installations, the Display Interface Module (DIM) must be installed in Slot 15, the right-most slot of a full-size 3500 rack. Remote installations use different mounting arrangements.

❗ Don’t confuse a blank screen with a failed display.
Before replacing the 3500/93, verify the DIM, power connections, and communication cable. We’ve seen far more cable failures than display failures.

⚠️ Check cable length before relocating the display.
The standard connection supports 100 feet (30 m). Longer distances require the optional external power supply to extend communication up to 4000 feet (1219 m).

❗ Back up the rack configuration first. Trust me.
Any system modifications should begin with a saved configuration. It saves hours if additional hardware needs replacement later.

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the 3500/93 135785-02C?

A: It provides a graphical interface that displays vibration values, alarms, relay status, Keyphasor information, and system events from a Bently Nevada 3500 Machinery Protection System.

Q2: Does the 3500/93 perform machinery protection?

A: No. It is a display device only. Protection functions are handled by monitor modules such as the 3500/40M, 3500/42M, 3500/44M, and related protection modules.

Q3: Can the display be mounted remotely?

A: Yes. The 3500/93 supports face mounting, 19-inch rack mounting, panel mounting, and independent wall mounting. Standard cable length is 100 ft, with distances up to 4000 ft supported when an external power supply is used.

Q4: Is the 3500/93 compatible with API 670 applications?

A: Yes. The display was designed to support the information presentation requirements of API Standard 670 when used as part of a complete 3500 Machinery Protection System.

Q5: Is the display hot-swappable?

A: Replacement should be scheduled during an approved maintenance window. Although the display is not part of the machinery protection path, removing it during operation can interrupt local visualization and operator access.

Q6: Why are surplus display modules less expensive than buying directly from the OEM?

A: Most surplus inventory comes from plant modernization projects, spare-parts reductions, or unused maintenance stock. Pricing reflects the supply chain rather than functionality. Always request functional display testing, communication verification, and serial-number traceability before purchase.

Q7: What warranty is typically available?

A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 3500/93 135785-02C display modules. Before purchasing, request the display function test report, communication verification results, and hardware revision documentation.
