Bently Nevada 3500/93 System Display Interface Module

Description

Product Introduction

The Bently Nevada 3500/93 is a System Display Interface Module designed for the 3500 Series Machinery Protection System. It acts as the dedicated processor card that formats and drives real-time rack data to local display units, such as the 3500 faceplate display or remote panel-mounted display screens.

Unlike external HMI software that relies on network polling, the 3500/93 pulls overall values, alarm statuses, and system event logs directly from the 3500 backplane. It provides plant operators with an immediate, hardware-level visual readout of critical machinery parameters right at the rack enclosure without relying on control room DCS communications.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: Your plant’s central control room network switch crashes during an emergency storm event. The DCS HMIs freeze, leaving operators blind to a critical boiler feed pump’s vibration status. The field technician runs to the local cabinet, but the 3500/93 display card has dead LEDs due to an internal power rail short. You cannot verify if the bearings are failing or if it’s a false alarm. Swapping the 3500/93 restores local screen diagnostics instantly.

• Power Generation – Local Turbine Deck Inspection – Allows field operators to review real-time shaft displacement and bearing temperatures directly at the rack enclosure.
• Chemical Refineries – Hazardous Area Local Diagnostics – Feeds explosion-proof external panel displays mounted outside high-risk containment zones.
• Gas Compression – Remote Compressor Station Troubleshooting – Gives field engineers immediate alarm list access during local commissioning without booting up a laptop.
• FPSO / Offshore – Local Machinery Enclosure Monitoring – Provides ruggedized visual status updates in high-vibration marine skid environments.

Field Case Study: An offshore platform lost serial communication to its central HMI panel during a scheduled generator test. The field crew needed to verify generator vibration amplitude before ramping up load. A pre-tested 3500/93 surplus module was installed into the local 3500 rack, instantly restoring the local touch-display readout and allowing the team to complete the test safely without waiting for DCS network repairs.

Transparency SOP: Quality Assurance & Testing

We test Bently Nevada hardware on live 3500 racks before shipping. Here is our exact testing protocol:

1. Inbound Physical Inspection: Inspection of the PCB assembly, faceplate latches, backplane edge connectors, and solder joints.
2. Rack Power-On & Diagnostic Self-Test: Insertion into an active Bently Nevada 3500 rack to verify backplane handshakes and clear all system fault indicators.
3. Display Port Communication Test: Cable connection to a Bently Nevada System Display Unit to test real-time screen updating, menu navigation, and contrast controls.
4. Firmware Logging: Verifying installed firmware revs via 3500 Rack Configuration Software to ensure seamless rack configuration downloads.
5. Anti-Static Packaging: Encapsulation in ESD-safe shielding bags and custom-cut protective foam packaging.

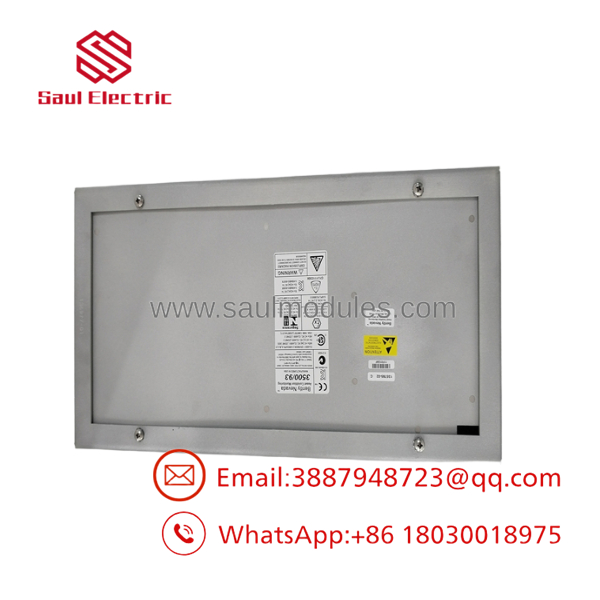

3500/93

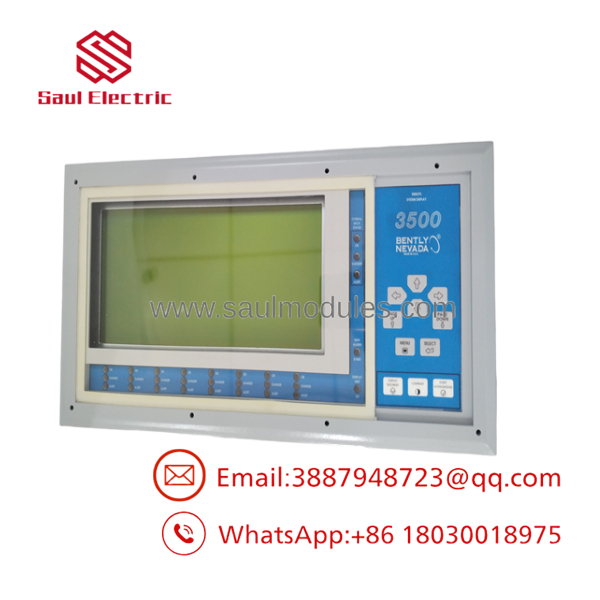

3500/93

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Rear I/O Cable Pinout: The 3500/93 module requires its matching rear Display I/O card (e.g., 135799-01). Never use generic serial cables or standard VGA extensions to wire the 3500/93 to a remote display panel—doing so can short the internal power supply pins on the rear connector.
• ❗ TDI Rack Synchronization: If the replacement 3500/93 module has a different firmware revision than the 3500/22M TDI module, the display screen may freeze on a “Configuration Mismatch” error. Use 3500 Rack Configuration Software to re-download the rack configuration to the new display card.
• ⚠️ Display Cable Distance Limits: The proprietary display cable running from the 3500/93 rear I/O card to an external display panel has strict distance limitations (typically max 100 feet / 30 meters). Exceeding this length without an approved signal extender causes screen flickering and dropped data packets.
• ❗ Slot Location Restrictions: While the 3500/93 fits standard backplane slots, ensure your rack configuration file matches the exact physical slot where the module is inserted. Misaligning software slot assignments will result in a rack configuration fault.

Frequently Asked Questions (FAQ for Conversion)

Q: Does the 3500/93 module affect the machinery protection trip logic if it fails?

A: No. The 3500/93 is strictly a display interface module. Machine protection trip functions are executed locally by individual monitor cards (such as the 3500/42M or 3500/50). A failure or removal of the 3500/93 will not cause or prevent a machine shutdown.

Q: Can I hot-swap the Bently Nevada 3500/93 module under live rack power?

A: Yes. The 3500 system fully supports live hot-swapping of display modules. Pulling or inserting the 3500/93 card will not disrupt other monitoring modules in the rack.

Q: What display screens are compatible with the 3500/93 module?

A: The 3500/93 is designed to interface with Bently Nevada 3500 System Display Units, including both the rack-mounted faceplate display and the panel-mounted external display assemblies.

Q: Is this 3500/93 module new surplus or refurbished, and what is the warranty?

A: We supply both Factory Sealed New Surplus and fully bench-tested Refurbished hardware. Every 3500/93 card is tested on a live 3500 rack prior to dispatch and is backed by a full 12-month replacement warranty.

Q: Why buy surplus Bently Nevada display cards instead of ordering from the OEM?

A: Legacy display modules like the 3500/93 can carry extended factory lead times. Sourcing pre-tested surplus stock allows you to restore local rack visibility immediately at a significantly reduced price point.
