Description
Core Product Summary

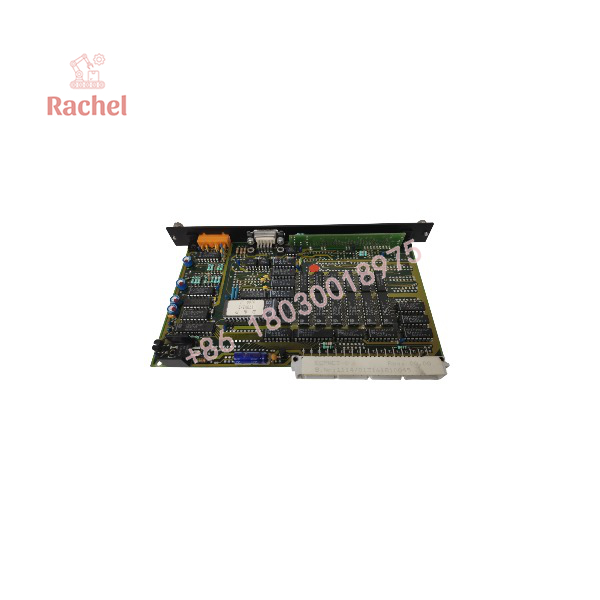

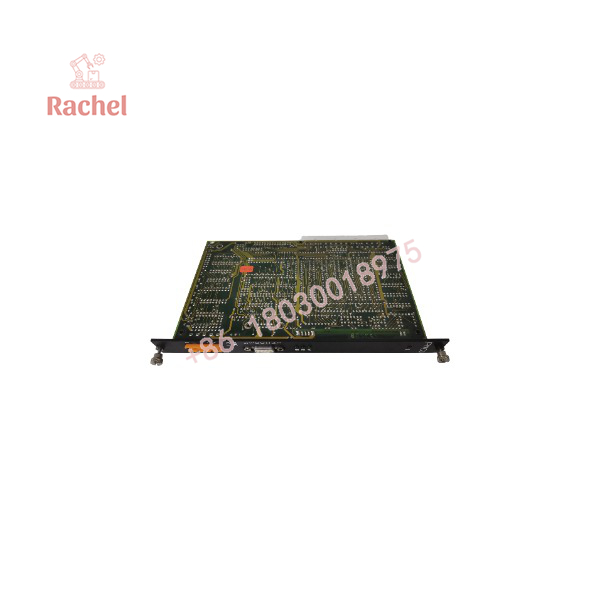

The B&R ECPNC3-0 is a PNC3 counter and positioning module designed for the B&R MULTI automation system family. It processes incremental encoder signals for position measurement, counting and positioning applications.
The module supports one incremental encoder input, a 24-bit binary counting range and a bipolar analog output of ±10 V with 11-bit resolution. The ECPNC3-0 version is designed for externally supplied 24 V DC encoders, with galvanic isolation of the encoder signal inputs documented in the historical technical manual.
This module is associated with legacy B&R MULTI control hardware. Before selecting a replacement, verify the rack type, module revision, encoder electrical characteristics, connector pinout and application requirements.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | B&R |
| Model | ECPNC3-0 |
| Module family | PNC3 |
| System family | B&R MULTI |
| Product type | Counter and positioning module |
| Encoder input | 1 incremental encoder channel |
| Counter range | 24-bit binary |
| Encoder signals | A, B and reference pulse R |
| Encoder supply | 24 V DC, externally supplied encoder |
| Encoder input isolation | Galvanic isolation through optocouplers |
| Analog output | ±10 V |
| Analog output resolution | 11-bit |
| Maximum input frequency | 50 kHz in some product listings; historical documentation specifies up to 200 kHz under applicable conditions |
| Encoder input types | Positive-switching, negative-switching or push-pull, subject to documented limits |
| Connector | 9-pin female D-sub encoder connection |
| System integration | Compatible B&R MULTI rack and control architecture |
| Hardware status | Legacy/discontinued, according to third-party product listings |
Frequency note: Published product listings and historical documentation show different frequency figures. Confirm the applicable limit against the original manual, operating mode and hardware revision before using the module in a high-speed counting application.
Engineering Selection Highlights
- Incremental encoder processing: Accepts encoder A/B signals and a reference pulse for counting and position feedback.
- 24-bit counting range: Supports binary count values for positioning and measurement applications.
- Analog control output: Provides a bipolar ±10 V output with 11-bit resolution.
- 24 V DC encoder interface: Intended for externally supplied 24 V DC incremental encoders.
- Galvanically isolated inputs: Historical PNC3 documentation describes optocoupler isolation between encoder signals and the module.
- Legacy system integration: Intended for compatible B&R MULTI hardware; rack placement and system support must be verified.
- Replacement verification: Check connector wiring, encoder signal levels, output requirements and counting frequency before installation.
ECPNC3-0
ECPNC3-0
System Compatibility & Integration Requirements
The ECPNC3-0 is designed for use within the relevant B&R MULTI control architecture. Its compatibility depends on the rack, encoder, analog interface and application configuration.
| Integration item | Requirement |
|---|---|
| Host system | Verify the specific B&R MULTI controller and rack |
| Encoder type | Use an incremental encoder compatible with the documented 24 V DC interface |
| Encoder signals | Confirm A, B and reference pulse R wiring |
| Switching characteristics | Match positive-switching, negative-switching or push-pull operation to the encoder and module specifications |
| Counting frequency | Verify the supported frequency for the actual operating mode |
| Analog output | Confirm the receiving device accepts the ±10 V signal |
| Connector | Verify the 9-pin D-sub pinout before connecting the encoder |
| Rack installation | Check approved rack type and slot position in the system manual |
| Commissioning | Validate counting direction, reference pulse behavior and output scaling |
Do not assume that the ECPNC3-1 or another PNC-series module is a direct substitute. Encoder supply requirements and electrical isolation differ between variants.
Dimensions, Mounting & Connection Notes
The ECPNC3-0 uses a 9-pin female D-sub connector for the encoder interface. The module is intended for installation in a compatible B&R MULTI rack rather than as a standalone controller.
Before installation:
- Confirm rack compatibility and approved slot position.
- Verify the connector pin assignments against the original manual.
- Check encoder supply wiring and current requirements.
- Confirm the A, B and reference-pulse signal connections.
- Verify the analog output wiring and receiving-device input range.
- Inspect the module label and connector condition before commissioning.
Use the applicable B&R hardware and positioning documentation for installation and wiring.
Detailed Product Overview
Incremental encoder interface
The PNC3 module processes the encoder’s A and B channels along with the reference pulse R. These signals provide the count information used by the application to determine movement and position. Correct signal wiring and configuration are essential for accurate position tracking.
Counter and analog output functions
The module combines a 24-bit binary counting range with a ±10 V analog output rated at 11-bit resolution. The analog output can serve compatible control equipment, but its actual purpose and scaling depend on the application program and connected hardware.
Electrical compatibility
The ECPNC3-0 is designed for externally supplied 24 V DC encoders. The historical manual also documents galvanic isolation of the encoder signal inputs. Confirm signal levels, supply arrangements and the applicable input-frequency limits before integrating a replacement.
Legacy system maintenance
Because the module belongs to the legacy B&R MULTI platform, replacement planning should include verification of rack support, slot position and the original control-system configuration. A physically compatible module may still differ in electrical behavior or application requirements.
Commissioning and validation
After installation, verify encoder direction, count response, reference-pulse detection and analog output scaling. Test the complete machine function according to the equipment manufacturer’s procedures before returning the system to service.
Applications & System Role
The ECPNC3-0 is intended for encoder-based counting and positioning tasks in compatible industrial automation systems.
Typical applications include:
- Incremental encoder position feedback.
- Machine-axis position measurement.
- Counting and movement monitoring.
- Positioning systems requiring a ±10 V analog output.
- Maintenance of legacy B&R MULTI automation equipment.
- Industrial machinery retrofits where the original counter-module architecture is retained.
The specific motion-control function depends on the host controller, application program, encoder and connected analog-control equipment.
Frequently Asked Questions
1. What is the B&R ECPNC3-0?
It is a PNC3 counter and positioning module for compatible B&R MULTI automation systems, designed to process incremental encoder signals.
2. How many encoder inputs does it support?
The module has one incremental encoder input with A, B and reference-pulse R signals.
3. What is the counter resolution?
The documented counter range is 24-bit binary. This describes the counting range, not the absolute accuracy of the complete positioning system.
4. What is the analog output range?
The module provides a bipolar analog output of ±10 V with 11-bit resolution. Verify output loading and scaling requirements in the applicable manual.
5. Which encoder supply does the ECPNC3-0 use?
It is designed for externally supplied 24 V DC incremental encoders. Confirm the encoder’s electrical characteristics and current requirements before connection.
6. What is the maximum counting frequency?
Some product listings specify 50 kHz, while historical PNC3 documentation specifies a maximum of 200 kHz under applicable operating conditions. Use the limit documented for the exact configuration rather than assuming either value applies universally.
7. Can the ECPNC3-0 replace the ECPNC3-1?
Do not assume direct interchangeability. The ECPNC3-0 and ECPNC3-1 differ in their encoder supply and input-isolation arrangements. Check the encoder type, wiring and system documentation before selecting a replacement.
8. What should be checked before purchasing?
Verify the complete model number, module condition, host rack, encoder type, connector pinout, counting-frequency requirement and analog output compatibility.
