Description
Product Introduction
The B&R Industrial Automation 5AC600.FLAP-K11 is an authentic front access cover flap designed specifically for B&R Automation PC 600 (APC600) industrial computer housings. Functioning as a critical mechanical barrier, it covers internal front-accessible components including CompactFlash card slots, lithium backup battery holders, reset buttons, and service interfaces.
Crafted from high-impact industrial-grade composite material, the 5AC600.FLAP-K11 retains factory IP ratings and prevents accidental ejection or mechanical vibration damage to system CF cards during continuous machine operation. Replacing broken or missing access flaps protects internal system drives and maintains the aesthetic and physical integrity of the IPC unit.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | B&R Industrial Automation |
| Model Code | 5AC600.FLAP-K11 |
| Compatibility | B&R Automation PC 600 (APC600) Series IPCs |
| Access Port Protected | Front CompactFlash (CF) slot, CMOS Battery, Diagnostic Port |
| Material | High-impact molded polycarbonate / industrial polymer |
| Latch Type | Integrated spring-tension snap hinge / lock latch |
| Enclosure Rating | Helps maintain original cabinet IP rating when closed |
| Color/Finish | Standard B&R Industrial Light Grey/Anthracite |
Application Scenarios & The “Trench” Experience
In a high-vibration automotive assembly plant, an unlatched or missing front door on an Automation PC 600 allows ambient metal dust and coolant mist to enter the CompactFlash slot, resulting in drive read errors and sudden controller rebooting. Installing a replacement B&R 5AC600.FLAP-K11 access door seals the CF drive bay, preventing environmental contamination and securing the boot media against accidental contact by operators.
- Automated Packaging Lines: Seals IPC storage media against ambient dust, washdown moisture, and airborne debris.
- CNC & Metalworking Stations: Protects system boot cards from fine metal shavings and cutting fluid spray.
- Plastics Molding Facilities: Prevents heat and airborne particulates from entering front-facing service ports.
- Cabinet Maintenance Restorations: Restores full mechanical enclosure integrity during IPC refurbishment and PM cycles.

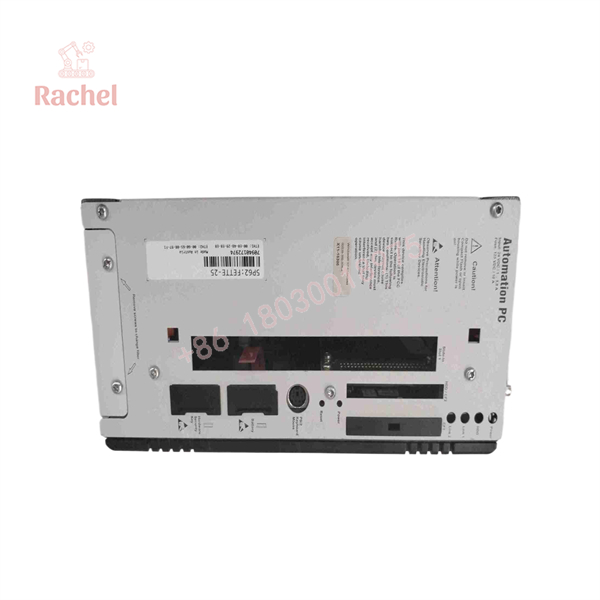

5AC600.FLAP-K11

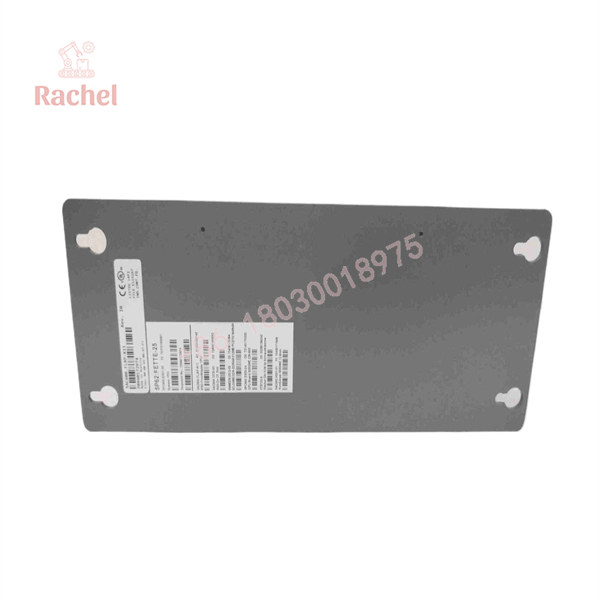

5AC600.FLAP-K11

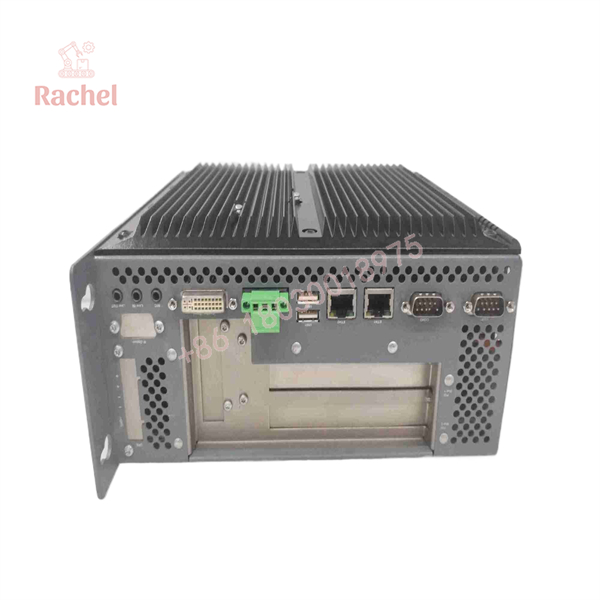

5AC600.FLAP-K11

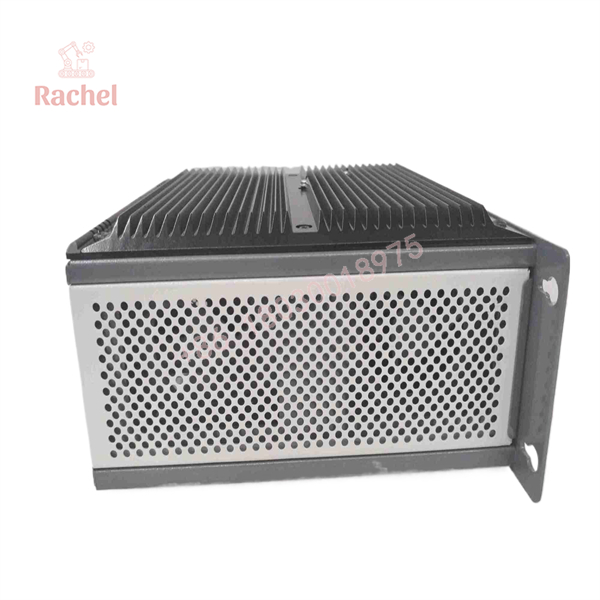

5AC600.FLAP-K11
Transparency SOP: Quality Assurance & Testing
- Mechanical Hinge & Latch Audit: Inspect plastic hinges, snap tabs, and retaining clips for hairline cracks, stress whitening, or structural wear.
- Alignment & Seating Check: Test-fit the flap onto an APC600 chassis to confirm smooth hinge movement, proper flush alignment, and firm latch engagement.
- Dust Seal Integrity Check: Verify integral foam or rubber sealing gaskets (where applicable) are flexible and free of tear marks.
- Surface Cleaning: Wipe down using industrial plastic cleaners to remove surface oil, smudges, or adhesive residue.
- Protective Packaging: Wrap securely in cushioning bubble film and package inside a protective rigid container to prevent tab damage during transit.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Do Not Force Hinge Pins: When clipping the flap back onto the APC600 front chassis, align the hinge pins carefully before applying pressure. Snapping the pins angle-wise will shear the mounting tabs off the main housing.
- ❗ Verify CF Card Alignment First: Ensure the internal CompactFlash card and battery release tabs are fully seated before closing the flap. Forcing the door closed over a partially ejected card will break the internal latch mechanism.
- ⚠️ Match Series Variants: B&R uses distinct flap designs across APC600, APC800, and APC900 series. Double-check the exact part number
5AC600.FLAP-K11to ensure correct physical dimensions and pin placement.
Frequently Asked Questions (FAQ)
Q: Is the 5AC600.FLAP-K11 compatible with B&R Automation PC 800 or 900 series?
A: No. The 5AC600.FLAP-K11 is engineered specifically for the APC600 footprint. Other IPC series require their respective series-specific door accessories.
Q: Does this flap come with replacement hinge pins or springs?
A: The flap is manufactured as an integrated one-piece assembly with molded snap-hinges ready for installation into the APC600 front panel slots.
Q: Why is it important to replace a missing front access flap on an IPC?
A: Missing flaps expose internal boot media (CF cards) and logic components to airborne dust, liquid drops, and static buildup, significantly increasing the risk of drive failure.
Q: What warranty applies to this replacement B&R component?
A: All clean surplus and inspected B&R 5AC600.FLAP-K11 covers carry a full 12-month replacement warranty from the delivery date.
