Product Introduction & Engineering Value
Machine builders often select compact PLC controllers because they need high processing performance without moving to larger rack-based systems. The B&R X20CP1584 provides the computing platform required for complex automation tasks, including PLC logic execution, communication handling, and coordinated machine functions.
For equipment already built around the B&R X20 ecosystem, replacing the CPU is not simply a hardware exchange. Engineers must verify firmware version, Automation Studio project compatibility, fieldbus configuration, and retained machine parameters before returning the machine to production.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model | X20CP1584 |
| Series | X20 Controller System |
| Controller Type | PLC CPU module |
| Processor | Intel Atom 1 GHz |
| RAM | 256 MB |
| Internal Storage | CompactFlash support (up to 2 GB depending on configuration) |
| Operating System | B&R Automation Runtime |
| Programming Software | Automation Studio |
| Communication Interfaces | Ethernet, USB, POWERLINK |
| Fieldbus Support | POWERLINK and expansion modules |
| Mounting | X20 modular backplane |
| Application Class | Machine automation and motion control |
Field Application & The “Trench” Experience”
A packaging machine manufacturer operating several high-speed filling lines began experiencing unexpected controller restarts on one production cell. The I/O modules, servo drives, and safety system remained healthy, but the machine would occasionally stop during complex sequence execution.
The maintenance team reviewed controller diagnostics and identified abnormal behavior from the existing B&R CPU module. Because the machine software was developed specifically in Automation Studio, replacing the controller with a different platform would have required extensive redevelopment.
A tested B&R X20CP1584 replacement was installed. Engineers restored the project archive, verified firmware compatibility, checked POWERLINK communication, and confirmed motion synchronization. The production line returned to normal operation without changing the machine architecture.
Typical application scenarios include:
- High-Speed Packaging Equipment — coordinating motion axes, sensors, and production sequences
- Robotic Assembly Cells — managing multi-axis synchronization and machine logic
- Precision Manufacturing Machines — controlling servo systems, inspection processes, and operator interfaces

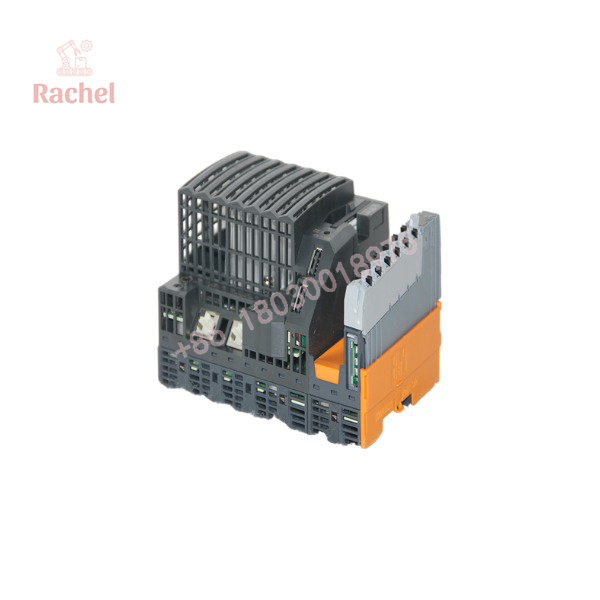

X20CP1584

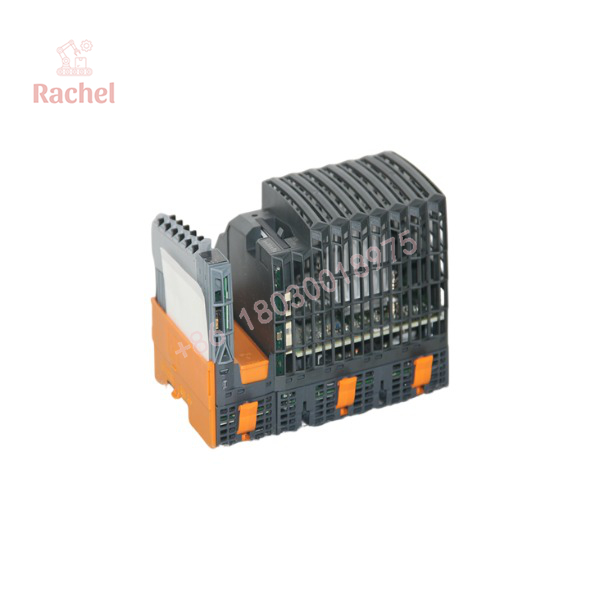

X20CP1584
Transparency SOP: QA & Testing
For B&R X20CP1584 new surplus or refurbished inventory, the verification process should include:
Controller Validation Checklist
- Confirm B&R label and exact X20CP1584 part number.
- Inspect housing, connectors, and backplane contacts.
- Verify CPU startup sequence.
- Check firmware and Automation Runtime information.
- Test Ethernet communication.
- Verify POWERLINK communication where applicable.
- Confirm memory recognition.
- Validate project loading capability using compatible B&R tools.
- Record diagnostic results and warranty status.
A PLC CPU should be tested as a controller, not only as a powered electronic module.
The Veteran’s Tech Trap Guide
⚠️ Do not replace an X20 CPU without checking Automation Runtime compatibility.
B&R controllers depend heavily on firmware versions. A CPU with incompatible runtime software may prevent the machine project from starting.
⚠️ Back up the original project before replacement.
The controller contains important machine configuration data. Always preserve the Automation Studio project, controller settings, and communication parameters.
PRO TIP: Record the existing CPU hardware revision, firmware version, and POWERLINK configuration before removing the module.
⚠️ Watch for retained variable requirements.
Some machines rely on persistent variables, recipes, counters, or calibration values stored in controller memory. Confirm backup and restoration procedures before replacement.
Dynamic FAQ
Q1: What is the B&R X20CP1584 used for?
The X20CP1584 is a B&R X20 series PLC CPU used for industrial machine control, automation logic execution, communication management, and motion applications.
Q2: Is the X20CP1584 a complete PLC system?
It is the CPU/controller component of the X20 modular PLC platform. Additional I/O, communication, and expansion modules are installed according to machine requirements.
Q3: What programming software is used with the X20CP1584?
The controller is programmed and configured using B&R Automation Studio with the appropriate Automation Runtime version.
Q4: Can another B&R X20 CPU replace the X20CP1584?
Not automatically. Replacement requires checking processor performance, firmware compatibility, project requirements, communication interfaces, and machine application needs.
Q5: How are refurbished X20CP1584 controllers tested?
Testing should include power-up verification, firmware inspection, communication testing, project loading checks, and diagnostic evaluation.
Q6: Is the B&R X20CP1584 still available new?
Availability depends on current B&R lifecycle status and remaining inventory. Buyers should verify exact hardware revision, firmware compatibility, testing records, and warranty coverage.
Q7: What information is needed to source a replacement X20CP1584?
Provide the controller part number, hardware revision, Automation Runtime version, Automation Studio project version, machine model, and communication configuration.
