Description
Product Introduction
The CTI 2501 is a compact single-wide mixed analog module that packs eight analog input channels and four analog output channels into one slot of a CTI 2500 Series or Siemens SIMATIC 505 I/O base. It was engineered as a direct hardware replacement for the Siemens 505-7012 and 505-7016, allowing existing wiring and most ladder logic to remain unchanged.
In practice the module delivers a full update of all channels in approximately 6 ms (low-density mode) and supports both unipolar and bipolar voltage/current ranges selectable per channel. Inputs and outputs are isolated 1500 V from the backplane; the four outputs are also isolated channel-to-channel. Voltage and current outputs are available simultaneously on each channel, making the 2501 a practical choice for mixed signal control loops, weighing systems, and machine control where space and isolation matter.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Channels | 8 analog inputs |
| Output Channels | 4 analog outputs |
| Update Time | 6 ms (LO density) / 7 ms (HI density) all channels |
| Input Ranges | 0–5 V, 0–10 V, 0–20 mA, ±5 V, ±10 V, ±20 mA (per channel) |
| Output Ranges | 0–5 V, 0–10 V, 0–20 mA, ±5 V, ±10 V, ±20 mA (per channel) |
| Input Resolution | 15 bits + sign |
| Output Resolution | 12 bits |
| Isolation | 1500 V channel-to-backplane; 1500 V channel-to-channel (outputs) |
| Backplane Power | 3 W maximum |
| Wire Gauge | 14–22 AWG |
| Module Size | Single-wide |
| Operating Temperature | 0 °C to 60 °C |
| Connector | 2500-40F removable terminal block (ordered separately for new installs) |
| Compatibility | CTI 2500 Series and Siemens SIMATIC 505 bases |
| Shipping Weight | 1.5 lb (0.68 kg) |
Application Scenarios & The “Trench” Experience
It’s 02:40 on a continuous process line. An old Siemens 505-7016 analog module has failed and the temperature and pressure loops are offline. The plant cannot wait weeks for an obsolete OEM part. You need a drop-in CTI 2501 that accepts the existing wiring, logs in as the same word addresses, and restores the loops without rewriting the ladder.
- Process Control / Continuous Manufacturing – Temperature, pressure, and flow loops – Fast 6 ms update and channel isolation keep loop performance stable even with noisy field wiring.
- Machine Control & Packaging – Position, force, and speed analog signals – Simultaneous voltage and current outputs simplify mixed actuator requirements in a single slot.
- Weighing & Batching Systems – Load-cell and setpoint interfaces – High input resolution and selectable ranges match common transducer signals without external conditioners.
- Legacy Siemens 505 Migration – Direct replacement of 505-7012/7016 – No rewiring and minimal program changes reduce changeover risk and downtime.
Field Case Study
A chemical plant lost a critical 505-7016 module controlling four reactor temperature loops. OEM lead time was quoted at eight weeks. A tested CTI 2501 was installed the next morning using the existing terminal block and wiring. The module logged in as a 12WX/4WY device, the loops were re-enabled, and production resumed within three hours. The plant later standardized on CTI 2501 modules for all remaining mixed analog slots.

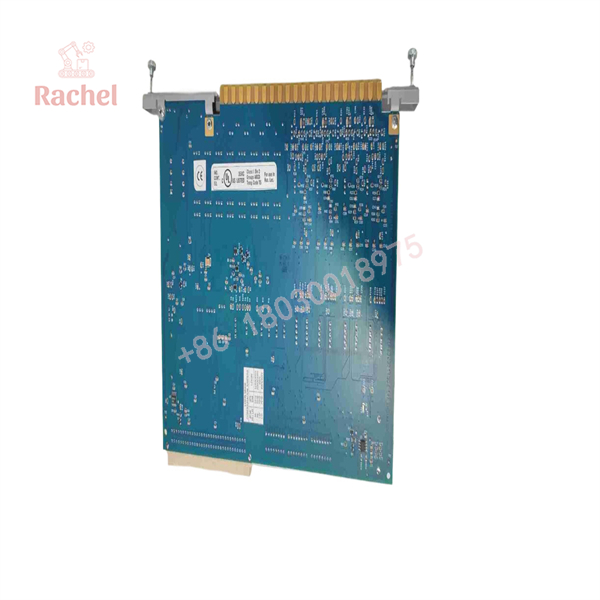

2501

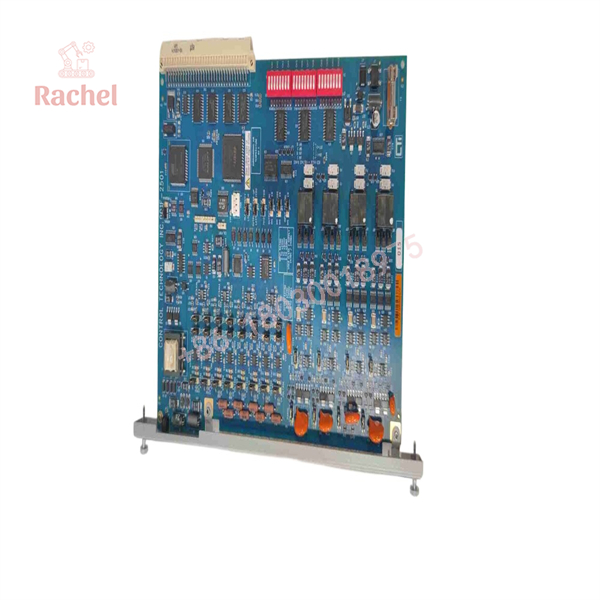

2501
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; every module is verified in a live 2500/505 base.
- Inbound Inspection – OEM part-number verification, visual inspection of connectors, jumpers, and conformal coating.
- Live Rig Testing – Powered in a CTI 2500 or SIMATIC 505 base; full channel scan, input/output range verification, and isolation checks performed.
- Electrical Parameter Checks – Backplane current draw, input accuracy, output load capability, and isolation resistance measured.
- Configuration Verification – Density mode, scaling, and filter settings confirmed against known-good reference.
- Final QC & Anti-static Packaging – Functional burn-in, serial documentation, and ESD-safe packaging ready for industrial transport.
The Veteran’s Tech Trap Guide
⚠️ Density mode and word mapping must match the original. The 2501 can log in as a 12WX/4WY (7012-style) or 20WX/4WY (7016-style) module. Set the jumpers correctly or the PLC will see the wrong number of words and the logic will fail.
❗ New installations need the 2500-40F connector. The module ships without the removable terminal block. Order the 2500-40F separately or reuse the existing Siemens connector carefully.
⚠️ Built-in scaling is not identical. The CTI 2501 does not replicate the Siemens built-in scaling feature. If the original application used that function, you will need to handle scaling in the PLC program.
❗ Channel configuration is per-channel. Voltage/current and uni/bipolar settings are independent. Leaving a channel in the wrong range is a common cause of “bad data” after replacement. Document every jumper and switch setting before you pull the old module.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the CTI 2501 a true drop-in for the Siemens 505-7012 and 505-7016?
A: Yes for wiring and most addressing. It does not support the Siemens built-in scaling feature, so applications that relied on that function require program changes.
Q: Can I hot-swap the module?
A: No. Power the base down before removing or inserting the module. Live insertion can damage the backplane or the module itself.
Q: What density mode should I use?
A: Match the original Siemens module. 7012 applications typically use the 12WX/4WY (low-density) setting; 7016 applications use the higher-density mapping. Confirm with the PLC I/O configuration.
Q: What warranty is provided?
A: 12 months from ship date on tested new-surplus units.
Q: Why is this cheaper than a new OEM Siemens module?
A: The Siemens 505-7012/7016 are long obsolete. Genuine CTI 2501 modules recovered from surplus inventory cost less while remaining fully compatible hardware.
Q: Does it require an external 24 V power supply?
A: Field wiring for outputs may require user-supplied 24 V depending on the load configuration. Backplane power is supplied by the I/O base (3 W max).
Q: Are voltage and current outputs available at the same time?
A: Yes. Each output channel can source both voltage and current simultaneously within the selected range.
