Eaton XVS-430-10MPI-1-1AC HMI XVS-430 Operator Panel

Description

Product Introduction & Engineering Value

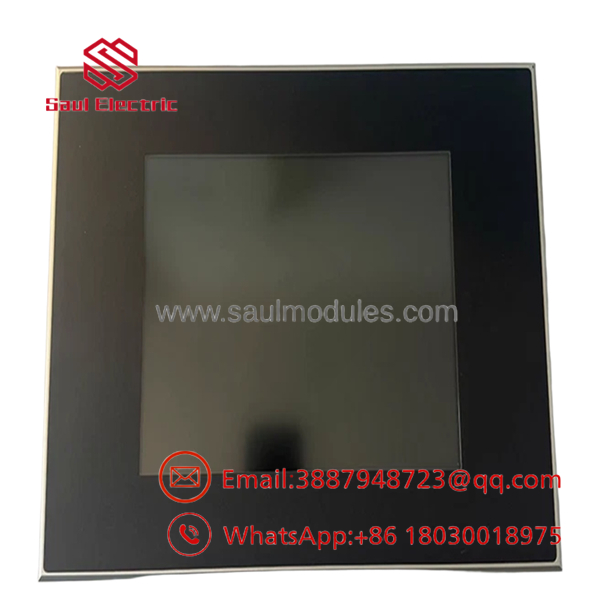

The Eaton XVS-430-10MPI-1-1AC is a 10.4-inch XVS-series operator panel designed for industrial visualization and operator control. The MPI designation is particularly important when evaluating this unit for legacy control systems because communication compatibility can determine whether the replacement can communicate with the installed controller.

This is not a simple screen-for-screen replacement. Before ordering, confirm the complete model, power arrangement, MPI communication requirements, HMI project, firmware/software compatibility, and cabinet mounting dimensions. The original configuration should be documented before removal.

Technical Specifications

Engineering note

The model suffixes should be retained exactly as supplied: XVS-430-10MPI-1-1AC. Do not substitute another XVS-430 based only on the display size. Exact power, communication, memory, environmental, and software characteristics should be confirmed against the applicable Eaton documentation.

Field Application & the “Trench” Experience

The MPI interface is the first thing I would investigate during a replacement. A panel can boot normally, display its menus, and still be completely unusable if it cannot establish the expected communication with the PLC.

A practical replacement procedure is to document the existing MPI address, controller connection, communication parameters, project version, and operator configuration before removing the old unit. Then test the replacement in a controlled environment before putting the machine back into production.

Specific application scenarios

• Legacy Siemens PLC-based machine panels where MPI communication is used between the operator panel and controller.
• Packaging and production equipment requiring local recipe, alarm, and machine-status displays.
• Industrial retrofit projects where an existing MPI-based operator station must be maintained during controller-system modernization.

XVS-430-10MPI-1-1AC

XVS-430-10MPI-1-1AC

Transparency SOP: QA & Testing

For New Surplus XVS-430-10MPI-1-1AC, use this inspection sequence:

Part verification: Confirm the complete XVS-430-10MPI-1-1AC marking.

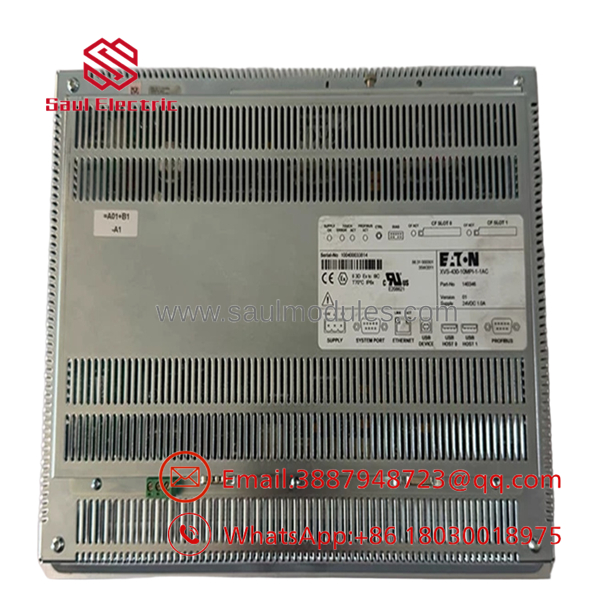

Physical inspection: Check the display, touchscreen, bezel, enclosure, mounting points, and rear connectors.

Power test: Verify the panel starts correctly under the appropriate supply conditions.

Touch test: Test the complete active area, including screen edges and commonly used navigation locations.

MPI test: Where the appropriate PLC/test equipment is available, verify that the unit can establish the required MPI communication.

Project test: Load or verify the intended HMI project and check alarms, navigation, data display, and operator controls.

Documentation: Record the unit’s condition and test scope before it enters critical spare inventory.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Forgetting the MPI address

When replacing an MPI-connected HMI, record the existing communication settings before disconnecting the old unit. A factory-default address may not match the machine configuration.

⚠️ Trap #2 — Assuming a working display means the HMI is ready

It does not. The critical test is whether the panel communicates correctly with the target PLC and runs the required project.

PRO TIP: Keep the original HMI available until the replacement has completed a full communication and functional check. It can provide valuable configuration information if commissioning encounters a problem.

⚠️ Trap #3 — Ignoring the 1AC designation

Do not assume the power configuration is identical to another XVS-430 variant. Verify the supply requirements before energizing the replacement.

Dynamic FAQ

What is Eaton -10MPI-1-1AC?

It is a 10.4-inch Eaton XVS-series touchscreen HMI/operator panel with an MPI-oriented configuration for industrial machine and process-control applications.

What does MPI indicate?

MPI refers to Multi-Point Interface, a communication method commonly associated with Siemens PLC systems. The actual communication configuration should be verified against the installed machine.

Can this HMI communicate with a Siemens PLC?

The model’s MPI designation indicates an intended MPI communication configuration, but compatibility must still be checked against the specific Siemens PLC, MPI settings, cable/interface arrangement, and HMI project.

Does the replacement include the original project?

Not necessarily. New Surplus hardware may be supplied without the customer’s application software. Confirm project availability separately.

What should I verify before ordering?

Confirm the complete model number, 10.4-inch display configuration, MPI interface requirements, power supply, mounting dimensions, PLC model, MPI address/settings, and HMI project compatibility.

How should New Surplus stock be authenticated?

Request photographs of the actual unit and identification label. Confirm whether it is unused or previously installed, whether the touchscreen and display were tested, and whether MPI communication was actually verified.

What warranty should I request?

Confirm the warranty period, test scope, hardware condition, software/project status, and return terms in writing. For an MPI-dependent HMI, communication testing should be clearly distinguished from a simple power-on test.
