Eaton XVS-440-10MPI-1-10 10.4-Inch TFT MPI HMI Panel

Description

Product Introduction & Engineering Value

Finding a spacious, large-format interface that drops directly into specialized legacy network architectures without needing multi-tiered protocol gateways can be a massive challenge. The Eaton XVS-440-10MPI-1-10 tackles this complication directly. By integrating a dedicated MPI/Profibus physical layer transceiver on the back panel, this 10.4-inch display coordinates high-density machine telemetry across legacy multi-point networks while ensuring clear visibility across the plant floor.

Most touch screens installed in high-duty zones degrade quickly because operators repeatedly strike the same visual buttons with heavy tools or grease-coated hands. This unit bypasses that vulnerability entirely by utilizing a perimeter optical infra-red scanning grid positioned behind laminated safety glass. By avoiding flexible plastic overlays that warp or delaminate, this HMI keeps operational loops running predictably and cleanly under tough conditions.

Technical Specifications

Field Application & The “Trench” Experience

During an unexpected hardware failure at a regional rubber vulcanization plant, the primary monitoring station for a multi-zone curing press went dark. The entire cell depended on continuous, high-speed Profibus-DP cyclic data transfers to maintain tight temperature zones across three legacy S7 controllers. Installing an uncertified substitute screen would have required hours of protocol remapping and hardware additions.

Instead, the team utilized a new surplus XVS-440-10MPI-1-10. Because the hardware matched the original footprint and network parameters, they transferred the compiled Galileo visualization package using a standard CompactFlash card and reconnected the 9-pin sub-D link. The press line achieved full synchronization with the master network in less than an hour, minimizing production loss.

Niche Application Scenarios:

• Multi-Zone Chemical Batching Stacks: Connects directly to legacy sub-networks to aggregate complex real-time temperature curves and pressure sets.
• Reciprocating Pumping Infrastructure: Replaces high-wear control interfaces exposed to heavy vibration where standard touch foils lose calibration over time.
• Textile Loom Control Panels: Manages dense graphical layout pages across multi-drop topologies while operating smoothly in high-lint environments.

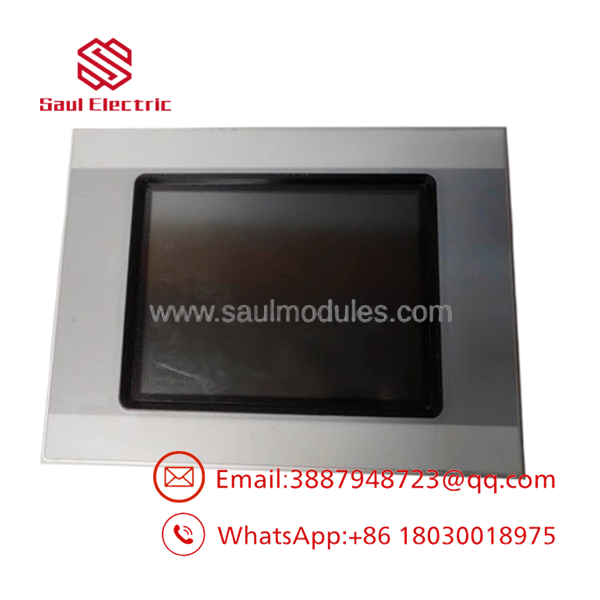

XVS-440-10MPI-1-10

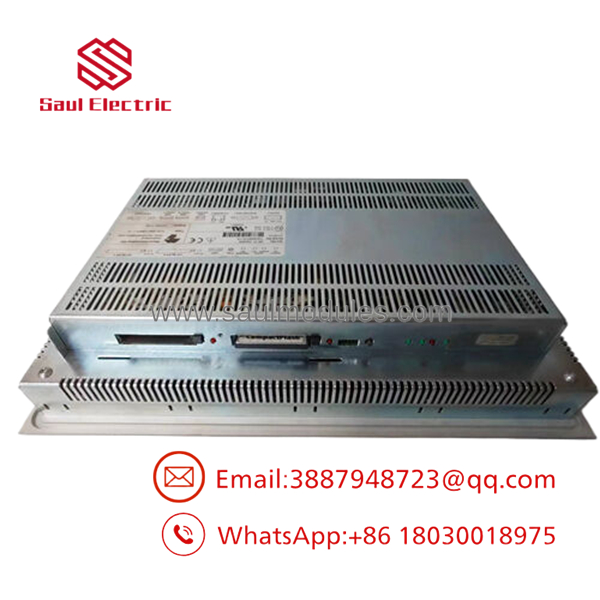

XVS-440-10MPI-1-10

Transparency SOP: QA & Testing

Our dedicated engineering team thoroughly verifies every XVS-440-10MPI-1-10 terminal to guarantee absolute reliability upon field deployment:

1. Network Bus Cycle Stressing: The 9-pin communications port is connected to an active Profibus-DP simulator, verifying data transmission stability up to full 12 Mbit/s speeds.
2. Optical Touch Array Calibration: Automated scripts trace the complete infra-red grid array to ensure immediate touch registration with zero dead coordinates across the 10.4-inch frame.
3. Power Margin Testing: Input power rails are varied from 18V up to 30V DC to ensure internal display inverters and logic boards maintain continuous operation without brownout faults.
4. Physical Seal Profiling: The outer bezel and structural mounting tracks are inspected to ensure true IP65 sealing compliance when torqued into an enclosure door panel.

The Veteran’s Tech Trap Guide

⚠️ CRITICAL RETROFIT WARNINGS

• The MPI Token Rotation Trap: When integrating this terminal onto a shared, active MPI loop with multiple master PLCs, pay close attention to your station node address. If your node address overlaps with another device, or if your Profibus network parameters mismatch the active token profile, you can disrupt the timing loop, dropping unrelated equipment off the bus.
• CompactFlash System Requirements: This OS is highly selective regarding external memory storage. When backing up or cloning runtime files, use industrial-grade CompactFlash media formatted explicitly to FAT16. Using high-capacity consumer cards will cause the panel to drop file references or fail to boot.
• Perimeter Shadow Interference: Because this display uses infra-red frame sensors, ensure that any external protective shield or custom enclosure door does not create a physical lip over the inner bezel tracking lane. Even slight mechanical shadows can block the optical sensors, causing phantom input faults or locking out operator interaction.

Dynamic FAQ

• Q: Does the XVS-440-10MPI-1-10 require an external protocol bridge to talk to a Siemens Simatic S7 PLC?
  • A: No. The unit contains an integrated, native MPI and Profibus-DP controller chip accessible via the standard 9-pin Sub-D interface port, bypassing the need for third-party converter boxes.
• Q: Can this terminal run a concurrent Ethernet network while connected to a Profibus fieldbus?
  • A: Yes. The communication controllers are entirely separate, allowing the panel to poll data via the MPI/Profibus link while simultaneously feeding diagnostic registers to an upper-level SCADA system via the RJ45 Ethernet connection.
• Q: What is the exact difference between this XVS series panel and the standard XV series units?
  • A: The XVS series is structurally and electronically optimized to feature onboard Siemens compatibility hooks (such as native MPI and Profibus support), tailored specifically for plants with established German multi-drop network infrastructure.
• Q: How do your New Surplus components ship, and do they include mounting clamps?
  • A: All New Surplus panels ship complete in their protective inventory packaging, containing the required physical mounting brackets and the plug-in terminal blocks for the primary 24V DC power connection.
