Emerson 1C31132G01 Ovation Analog Output Module

Description

Product Introduction & Engineering Value

The Emerson 1C31132G01 is an Ovation analog output personality module used with the corresponding 1C31129-series electronic modules. It provides the field-side interface between the Ovation I/O electronics and the terminal block, making correct module pairing essential during replacement.

This distinction matters during procurement. A listing that simply calls 1C31132G01 an “analog output card” can obscure the fact that it is the personality module, while the electronic module establishes the particular voltage or current configuration.

Technical Specifications

Emerson’s Ovation I/O documentation shows that the same 1C31132G01 personality module is used across four analog-output configurations. For current-output applications, the I/O Builder can configure the applicable card for 4–20 mA.

Terminal Interface

The reference manual’s wiring diagram identifies +V, +I, signal return, shield, and earth-ground positions on the analog-output terminal arrangement. It also specifies that unused or unmarked terminal locations should not be connected.

That is an important installation detail. Do not treat the connector layout as interchangeable with another Ovation personality module simply because the module has the same physical form.

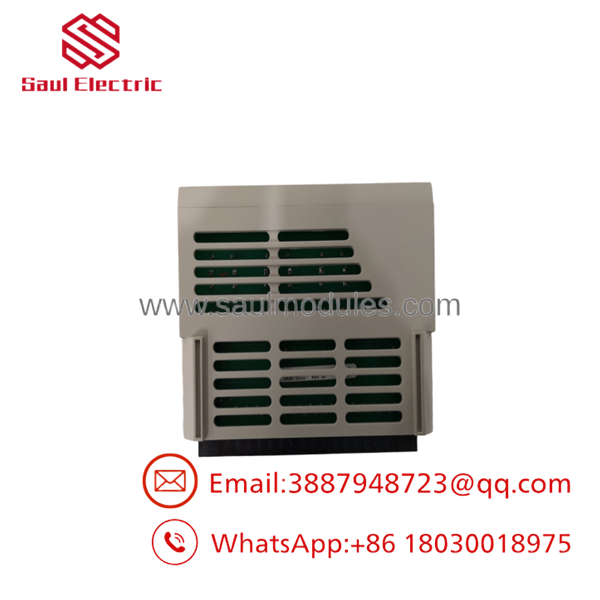

1C31132G01

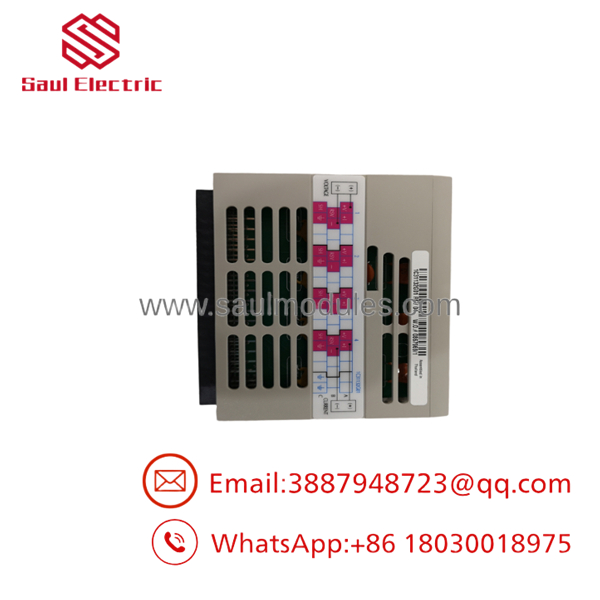

1C31132G01

Field Application & The “Trench” Experience

A common replacement scenario looks like this:

A maintenance team finds an analog output channel behaving incorrectly during a planned outage. The technician removes the suspect Ovation I/O assembly and discovers that the electronic module is still serviceable, while the 1C31132G01 personality module has become the replacement target. The easy mistake is to order another analog-output electronic module based only on the signal type shown on the drawings.

That can create a second problem.

The correct approach is to identify the complete pair: electronic module + personality module + configured signal range. The Ovation documentation explicitly maps the 1C31132G01 to the 1C31129G01 through G04 electronic modules.

Specific applications

• Boiler combustion control: analog command signals to fuel-control or associated positioning equipment.
• Turbine auxiliary control: proportional output signals used by downstream control interfaces.
• Process valve positioning: 4–20 mA control loops where the Ovation analog-output subsystem is configured for current output.

The key point is not the industry label. It is the signal architecture. Verify the configured I/O point before installing the replacement.

Transparency SOP: QA & Testing

For new-surplus or refurbished 1C31132G01 inventory, a sensible inspection sequence should include:

1. Part-number verification — Confirm the label reads 1C31132G01; check revision and visible manufacturing markings against the purchase specification.
2. Physical inspection — Examine the connector, terminal interface, housing, labels, mounting points, and PCB assembly for damage, contamination, corrosion, or evidence of overheating.
3. Configuration verification — Confirm that the personality module is being supplied for the intended Ovation analog-output subsystem and that the associated electronic module is compatible.
4. Functional testing — Where test equipment and a compatible Ovation test environment are available, verify the module as part of the applicable I/O assembly rather than treating the personality module as an isolated generic analog card.
5. Final QA record — Record part number, revision, condition, test status, and any observed discrepancies before shipment.

One supplier identifies the part as an analog output module, while the Ovation reference manual gives the more precise classification: Personality Module. For procurement and replacement work, the latter description is the safer technical reference.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP — Do not confuse the personality module with the electronic module.
The 1C31132G01 does not independently define every analog-output range. The Ovation subsystem pairs it with different 1C31129-series electronic modules for different voltage/current configurations.

⚠️ Check the complete I/O assembly before ordering.
If the existing system uses 1C31129G03 + 1C31132G01, replacing only the personality module may be appropriate. If the electronic module is also defective, however, the replacement must match the configured output type.

⚠️ Do not improvise terminal wiring.
The Ovation reference manual provides dedicated positions for voltage output, current output, signal return, shield, and earth. It specifically warns against using unmarked terminal locations.

PRO TIP: Photograph the existing module labels and terminal arrangement before removal. On legacy DCS hardware, that simple record can prevent an expensive troubleshooting session later.

Dynamic FAQ

Is 1C31132G01 an analog output electronic module?

Not exactly. Emerson’s Ovation I/O documentation identifies 1C31132G01 as the Personality Module used in the four-channel analog-output subsystem. The electronic module is selected separately.

How many analog channels does the 1C31132G01 support?

The documented analog-output subsystem provides four channels. The personality module is shared across the listed 1C31129-series electronic-module configurations.

Can 1C31132G01 be used for 4–20 mA?

Yes, within the appropriate Ovation analog-output configuration. The reference manual states that the 0–20 mA configurations can also be selected as 4–20 mA through the I/O Builder, with the card configured accordingly.

What should I verify before buying a replacement?

At minimum, verify the full part number, revision, existing electronic-module part number, output signal type, channel configuration, and terminal arrangement. Do not purchase based solely on the phrase “Ovation analog output.”

Is 1C31132G01 still available?

It is a legacy Ovation component, and current commercial listings show the part in surplus/repair channels; one source explicitly describes it as discontinued. Availability therefore depends heavily on current inventory and condition.

What should be included with New Surplus or refurbished stock?

Ask the supplier to identify the exact part number and revision, state whether the unit is factory-sealed, new surplus, used, or refurbished, and provide the applicable test/inspection status and warranty terms. Do not assume a “new” listing means current OEM production stock.
