Emerson Westinghouse 1C31219G01 Digital Output Module

Description

Product Introduction

The Emerson Westinghouse 1C31219G01 is a rugged Digital Output Module engineered for the Ovation Distributed Control System (DCS). It serves as the primary hardware interface for executing discrete control actions, energizing interlock relays, opening solenoid valves, and triggering motor starters across power plants and process facilities.

Designed to operate in harsh electrical environments, the 1C31219G01 features robust optical isolation on every channel to separate sensitive backplane logic from field-side voltage spikes and inductive kickback. Fast switching speeds ensure that critical safety interlocks and sequential logic trip commands execute without timing delays.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 4:00 AM on a freezing morning, and a plant’s main lube oil pump fails to start during a scheduled turbine roll. The Ovation operator clicks “START,” but nothing happens at the MCC breaker. The issue isn’t a blown motor; an aging digital output card’s output transistor shorted open after millions of switching cycles, failing to energize the pilot relay.

In our field experience, solid discrete output cards like the 1C31219G01 are the direct execution arms for plant logic. Typical application scenarios include:

• Power Generation – Turbine Trip Interlocks: Drives fast-acting solenoid trip valves on main steam stop valves during emergency shutdown events.
• Oil & Gas – Motor Control Center (MCC) Actuation: Sends 24VDC start/stop commands to high-voltage pump and compressor drives.
• Chemical Refineries – Solenoid Manifold Control: Coordinates air supply solenoids on double-acting pneumatic control valves.
• Water & Utilities – Valve Actuator Control: Executes open, close, and stop relay outputs for motorized intake gates.

Field Case Study: A combined-cycle plant in Ohio had a critical cooling tower fan trip line go dead when a channel on their primary digital output module failed. Emerson quoted a 10-week factory build time. We pulled a surplus 1C31219G01 from stock, verified output load switching and channel optocoupler isolation on our test rig, and overnighted the card. The instrument crew swapped the board during a planned 1-hour outage, restoring automatic fan sequencing before ambient temperatures spiked.

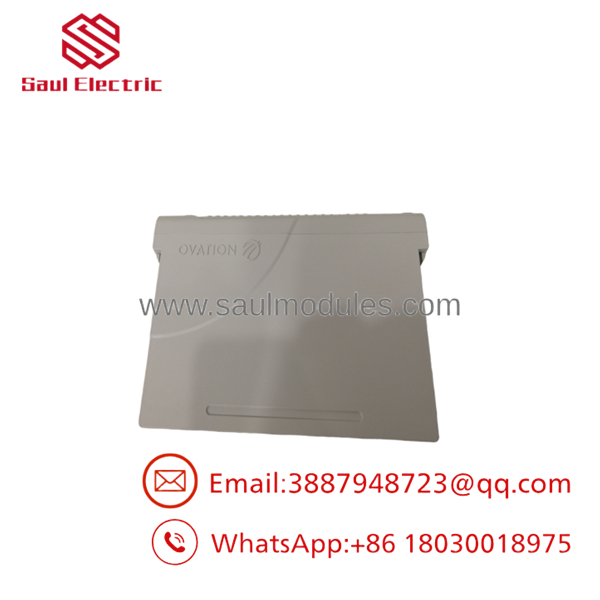

1C31219G01

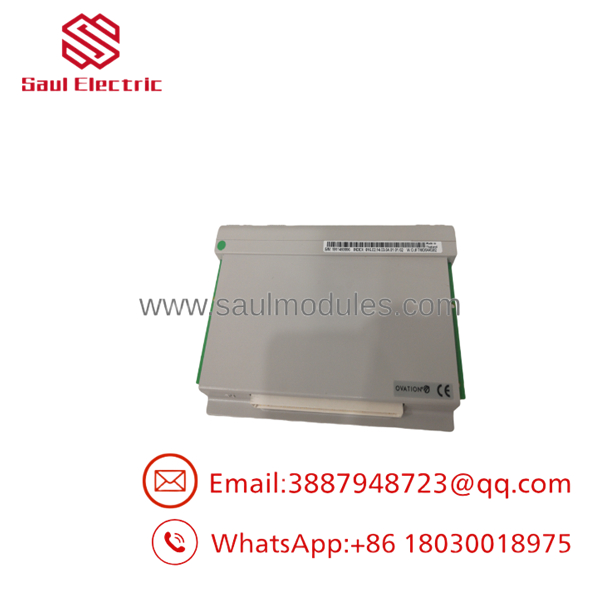

1C31219G01

Transparency SOP: Quality Assurance & Testing

We don’t just ship surplus boxes; we physically test every module on actual Emerson Ovation racks. Our 5-step SOP includes:

1. Inbound Visual Inspection: Inspect PCB traces for thermal darkening, check driver transistors for damage, verify connector pins, and confirm original OEM serial tags.
2. Backplane Interface & Power Test: Slot the card into an active Ovation baseplate to verify backplane bus handshakes and power rail health.
3. Full-Channel Load Switching Check: Cycle every individual output point under full rated resistive and inductive test loads to verify clean switching and LED indication.
4. Thermal Stress Chamber Run: Bake the board under active switching loads in an elevated-temperature chamber to surface heat-induced transistor breakdown.
5. ESD-Safe Packaging: Seal the cleared card in anti-static shielding bags with custom foam cradles for transport safety.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Install Flyback Diodes on Inductive Loads: If your field wiring drives inductive solenoid coils or heavy relays directly without a Field Termination Assembly (FTA) suppressor, install external flyback diodes or RC snubbers. Inductive kickback voltage spike will puncture the card’s output drivers over time.
• ❗ Check Field Sourcing Voltage Polarities: Verify whether your FTA setup uses high-side (sourcing) or low-side (sinking) driver configurations before landing external field power. Reversing power supply polarity on the field terminals can blow the onboard channel fuses instantly.
• ⚠️ Inspect the Baseplate Backplane Pins: Ovation baseplates are unforgiving. Grab a flashlight and look inside the slot before seating the module. Forcing a card in at an angle will crush the rear interface pins and trip the rack’s 24V supply.
• ❗ Isolate Trip Circuits Before Swap-Out: Even though the module supports hot-swapping, temporarily disarm down-stream safety or trip interlocks wired to the card’s FTA. A momentary voltage glitch during card seating can trigger a false trip on running equipment.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 1C31219G01 module hot-swappable while the system is running?

A: Mechanically, the Ovation baseplate supports hot insertion. Practically, pulling or inserting an active digital output card can briefly drop or pulse field outputs. Always place dependent process loops in manual or bypass before pulling the card.

Q: Does this card require software configuration or firmware flashing upon replacement?

A: No separate board-level firmware flashing is required for direct hardware replacement. The module automatically receives its channel assignments and logic parameters from the Ovation controller upon power-up.

Q: What is the primary cause of failure on these digital output modules?

A: Field-side inductive voltage spikes that break down output driver transistors, or sustained over-current conditions caused by shorted field solenoid coils.

Q: Why choose test-certified surplus over factory-new from the OEM?

A: Factory lead times for legacy Ovation modules often stretch into months. Our surplus stock is bench-tested, ready to ship today, and priced significantly lower without risking system reliability.

Q: What warranty coverage comes with this module?

A: We cover the 1C31219G01 with a full 12-month replacement warranty. If a module fails on your bench or in the field, we replace it immediately from our ready stock.
