Emerson Westinghouse 1C31169G02 Serial Link Controller

Description

Product Introduction

The Emerson Westinghouse 1C31169G02 is a Serial Link Controller Module designed specifically for the Ovation Distributed Control System (DCS). It acts as a dedicated hardware gateway for serial communication protocols, offloading data transfer overhead from the primary controller CPUs. The card connects intelligent field equipment, third-party PLCs, and auxiliary subsystems directly into the Ovation network environment.

Engineered to operate in demanding industrial environments, the 1C31169G02 features configurable physical layer terminations and opto-isolated serial channels to resist electrical noise. By offloading polling routines and protocol handshakes, it ensures low-latency data updates across the local network without bottlenecking the main process logic execution.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:30 AM during a heatwave, and the plant’s main emission monitoring skid drops communication with the DCS. The Ovation graphic displays a wall of red bad-quality flags across sulfur and nitrogen oxide readings. Environmental compliance requires a shutdown if data stays offline for more than 30 minutes. The culprit isn’t the analyzer; it’s an aged serial communication module that cooked its RS-485 transceiver chip after years of continuous high-temperature panel exposure.

In our field experience, dedicated serial interfaces like the 1C31169G02 are the true backbone of plant integration. Common installations include:

• Power Generation – Generator Excitation Subsystems: Feeds real-time terminal voltage and rotor field current data from standalone exciters to the main operator workstation.
• Oil & Gas – Custody Transfer Metering Skids: Pulls flow computer totals and gas chromatograph values over RS-485 Modbus links directly into Ovation history logs.
• Chemical Plants – Variable Frequency Drive (VFD) Integration: Executes high-speed start/stop and speed reference writes to multi-drive lineups across serial networks.
• Water Treatment – Remote Telemetry Outstations: Manages long-distance RS-422 links returning flow and pressure readings from intake pumping stations.

Field Case Study: A combined-cycle plant in Texas suffered intermittent serial bus resets between their GE gas turbine Mark VI control skid and the Ovation DCS overlay. Emerson reported a multi-month factory backorder on the legacy serial board. We pulled a 1C31169G02 from surplus stock, matched the board’s DIP switches and jumper blocks to the plant’s schematic on our test bench, and shipped it overnight. The site team swapped the module during a scheduled 2-hour window, instantly clearing all comm framing errors and restoring live telemetry to the control room.

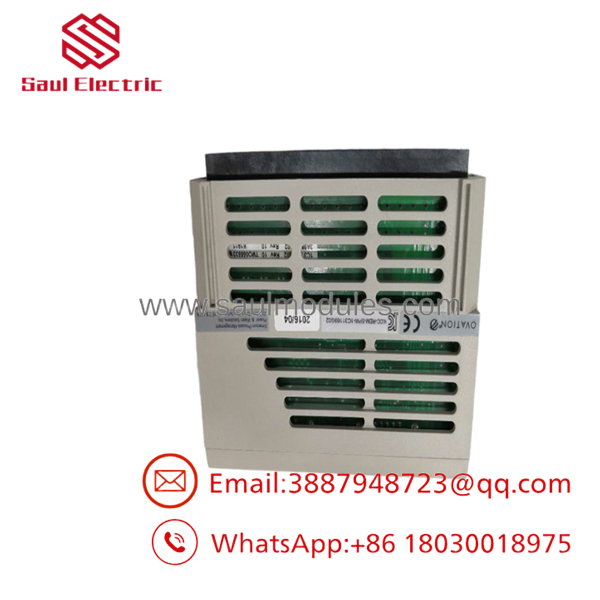

1C31169G02

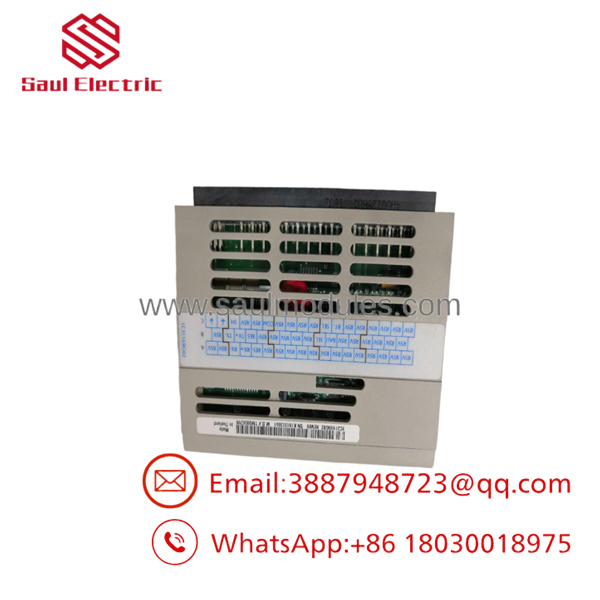

1C31169G02

Transparency SOP: Quality Assurance & Testing

We don’t just ship surplus boxes; we physically test them on actual Emerson Ovation racks. Our 5-step SOP includes:

1. Inbound Physical Inspection: Check for trace lifting, swollen capacitors, bent backplane pins, and verify original Westinghouse/Emerson serial tags.
2. Backplane Interface & Power Test: Slot the card into an active Ovation baseplate to verify clean power rail distribution and system handshake detection.
3. Serial Loopback Communication Checks: Drive continuous full-duplex traffic through the RS-485 and RS-422 transceiver ports at maximum baud rates to ensure zero dropped packets.
4. Thermal Stress Chamber Test: Soak the board under active communication loads inside an elevated-temperature chamber to detect heat-induced component breakdown.
5. ESD-Safe Packaging: Seal the cleared module in anti-static shielding bags with custom foam cradles to prevent transit damage.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Termination Resistor Jumpers: Before sliding the replacement 1C31169G02 into the baseplate, double-check the onboard termination and biasing jumpers. If this card sits at the end of an RS-485 daisy chain, termination must be enabled. If it’s in the middle, leave it off—otherwise, you will load down the bus and drop the entire loop.
• ❗ Match Baud Rate and Parity via Software/DIP Settings: A mismatched baud rate or parity setting will throw framing errors on the Ovation controller software immediately. Take a picture of the old card’s configuration switches before pulling it out of the rack.
• ⚠️ Watch for Bent Rear Connector Pins: Ovation baseplate slots can be unforgiving. Align the top and bottom card guides carefully before applying seat pressure. Forcing the module in at an angle will crush the backplane pins.
• ❗ Shield Grounding at One Point Only: Ground the communication cable shield at the Ovation Field Termination Assembly (FTA) ground bar only. Grounding both ends creates differential ground loops that will fry the RS-485 drivers on the card during lightning or switching surges.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I hot-swap the 1C31169G02 module while the Ovation baseplate is powered?

A: Physically, yes—the Ovation rack bus handles live insertion. However, pulling this card live will instantly break the serial link to all downstream sub-tier devices. Always bypass or disable active control loops depending on that serial data prior to removal.

Q: What is the difference between the 1C31169G01 and 1C31169G02 revisions?

A: The “G02” revision generally incorporates updated transceiver components and improved noise immunity over the original G01 footprint. The G02 serves as a direct drop-in replacement for earlier revisions in standard configurations.

Q: Does this card require external power supplies for the serial lines?

A: No. Logic power and isolated field-side power are derived through the module’s connection to the Ovation baseplate power supply rails.

Q: Why buy new surplus or refurbished over ordering direct from the OEM?

A: Factory lead times for legacy Ovation hardware can extend out for months. Our surplus modules are fully bench-tested, ready to ship today, and priced significantly below OEM list prices without compromising operational reliability.

Q: What happens if the module fails upon arrival?

A: Every 1C31169G02 comes backed by a 12-month replacement warranty. If a module fails during installation or bench testing, contact us for an immediate swap from our ready stock.
