Emerson 1C31166G01 Valve Positioner Module

Description

Product Introduction

The Emerson Westinghouse 1C31166G01 is a dedicated Valve Positioner Module built for the Ovation Distributed Control System (DCS). It acts as the direct hardware link between process logic and electro-hydraulic servo actuators in power generation and heavy industrial control skids.

Instead of running position loops through the main CPU, the 1C31166G01 executes closed-loop positioning directly on the module using LVDT feedback inputs. This design keeps loop response fast—well below 10 milliseconds—which prevents governor valve hunting on steam turbines and keeps critical drives stable during sudden load changes.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 3:00 AM during a peak winter load event. A combined-cycle plant’s steam turbine governor valve trips off line. The root cause? An aging valve positioner card dropped its LVDT excitation voltage. The controller saw a false position jump, panicked, and tripped the unit. Every hour off the grid costs the facility $35,000 in unrecovered revenue.

To be honest, situations like this happen all the time with legacy DCS hardware. Here is where the 1C31166G01 fits into active plant operations:

• Power Generation – Steam Turbine Governor Valves: Controls main stop and throttle valves with tight closed-loop LVDT positioning.
• Oil & Gas – Compressor Anti-Surge Systems: Drives fast-acting servo valves to clear surge conditions before mechanical damage occurs.
• Petrochemical – Boiler Fuel Gas Skids: Manages high-precision fuel control valves where position drift ruins combustion efficiency.
• Water & Utilities – Hydraulic Gate Controls: Maintains stable positioning on high-force hydraulic rams without constant valve hunting.

Field Case Study: A municipal power plant in Ohio hit a dead end when their secondary steam chest actuator began drifting. Emerson quoted a 16-week factory build time for a replacement card. We pulled a surplus 1C31166G01 from inventory, verified the jumper settings on our test bench, and had it delivered via counter-to-counter air freight. The plant technicians plugged it in during a scheduled 4-hour window, recalibrated zero/span, and synchronized the generator back to the grid that same evening.

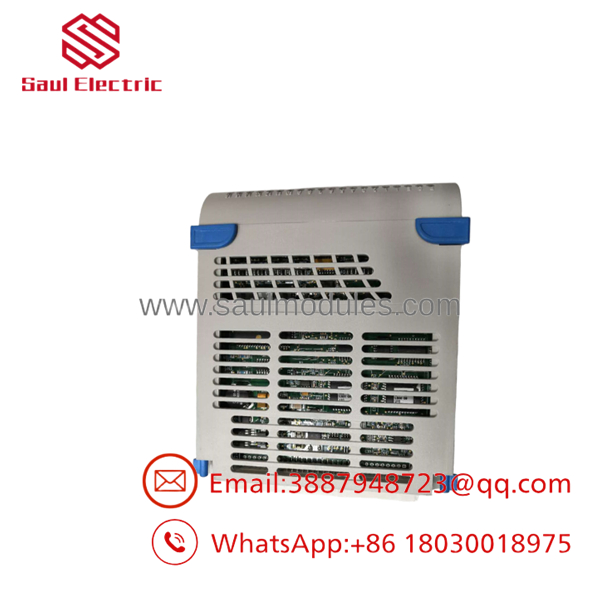

1C31166G01

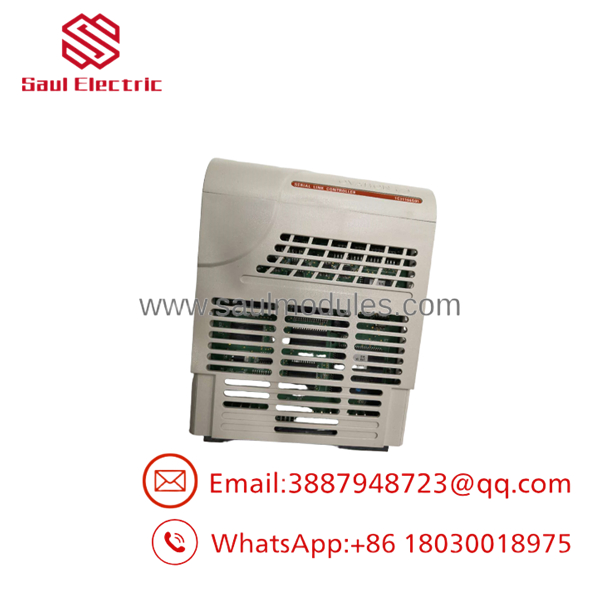

1C31166G01

Transparency SOP: Quality Assurance & Testing

We do not just box up old cards and hope for the best. Every 1C31166G01 undergoes a five-step check on our bench before shipping:

1. Inbound Visual Inspection: We check for cracked PCB traces, burnt driver transistors, bent connector pins, and verified OEM serial tags.
2. Live Rack Power-On Test: The card is installed into an active Emerson Ovation test baseplate to pass initial system handshakes.
3. Signal & Drive Verification: We connect an LVDT simulator to test feedback tracking and verify servo coil drive output under actual load resistor conditions.
4. Thermal Stability Run: The card runs under load inside a burn-in chamber to surface heat-sensitive component failures before shipping.
5. ESD Packaging: Once cleared, the card goes straight into static-shielded bags with high-density foam padding for transport safety.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Check LVDT Excitation Jumpers First: Never drop a replacement 1C31166G01 into a live rack without matching the onboard jumpers to the old card. If your excitation frequency is set wrong (1 kHz vs 5 kHz), your LVDT feedback will drift like crazy or throw an out-of-range fault immediately.
• ❗ Trim Null Current Before Applying Hydraulics: Always calibrate your electrical zero and null current settings with hydraulic pressure isolated. If the card’s offset is wrong when oil pressure hits the servo, the valve can slam fully open instantly.
• ⚠️ Inspect the Baseplate Backplane Pins: Ovation baseplate backplanes are unforgiving. If you insert the card at an angle, you can bend the rear interface pins. Look inside the slot with a flashlight before seating the new card.
• ❗ Ground LVDT Shields at One End Only: Ensure field wiring shields land on the Ovation Field Termination Assembly (FTA) ground bar only. Grounding both ends of an LVDT shield creates 60Hz ground loops that cause the servo valve to jitter continuously.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 1C31166G01 hot-swappable while the system is running?

A: Mechanically, yes—the Ovation baseplate supports hot insertion. Practically, no. Pulling this module live drops control current to your servo valve, causing it to spring-return or fail in place. Put the process loop into manual bypass before pulling the card.

Q: Can I replace a 1C31166G01 with a standard Ovation analog output card?

A: No. Standard analog output cards lack the high-speed AC LVDT excitation and onboard loop hardware required for dynamic servo valve control.

Q: How do I calibrate zero and span after installing this card?

A: Initial coarse hardware zero/span adjustments are verified via onboard potentiometers or jumper configs depending on board revision. Fine calibration is finished using Ovation Developer Studio software.

Q: Why choose test-certified surplus over factory-new from the OEM?

A: OEM lead times for legacy Ovation modules often stretch into months due to component shortages. Our surplus cards are fully bench-tested, ready to ship today, and priced significantly lower without risking system reliability.

Q: What warranty comes with this module?

A: We cover the 1C31166G01 with a full 12-month replacement warranty. If it fails on your test bench or in the field, we swap it immediately.
