Emerson 1C31197G05 Ovation Valve Positioner PMOD Module

Description

Product Introduction & Engineering Value

The Emerson Ovation 1C31197G05 is the Personality Module (PMOD) used in an Ovation valve-positioner assembly. It is not a conventional analog-input or analog-output card. Its function is tied to the valve-positioner interface and its associated electronics module within the Ovation I/O architecture.

This distinction becomes important when replacing legacy hardware. Emerson lists 1C31194G03 and 1C31194G04 as valve-positioner EMOD assemblies for Ovation 3.5 and later, while 1C31197G05 is separately identified as the valve-positioner PMOD. Do not quote the PMOD as though it were a complete valve-positioner assembly.

Technical Specifications

Important specification correction

Several reseller pages describe 1C31197G05 as a 16-channel analog-input module, sometimes adding specifications such as 4–20 mA, 0–10 V, 16-bit resolution, and 1500 V isolation. Those claims conflict directly with Emerson’s official spare-parts list, which identifies the part as PMOD ASSY, VALVE POSITIONER.

For engineering documentation, procurement, and SEO content, the Emerson classification should be used.

A third-party listing also provides a useful physical identification: one inspected unit is marked 1C31197G05 Rev: 09 and references assembly/subassembly markings including 1P00024G and 5X00110G01. This is useful when comparing photographs of surplus inventory, although revision and subassembly markings should be verified on the actual unit.

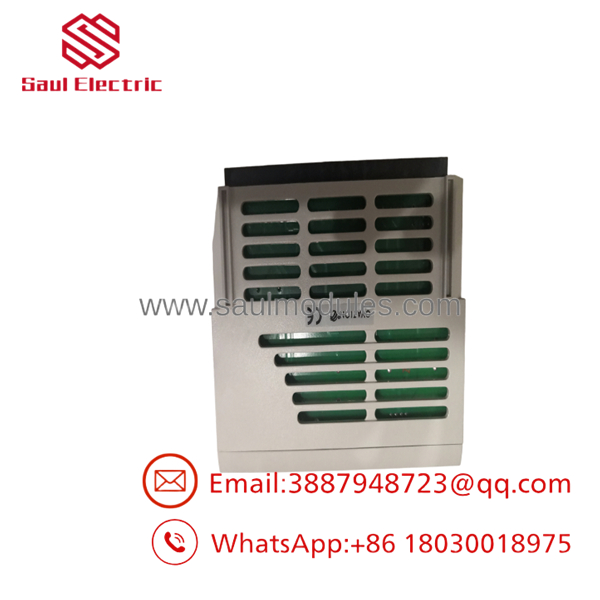

1C31197G05

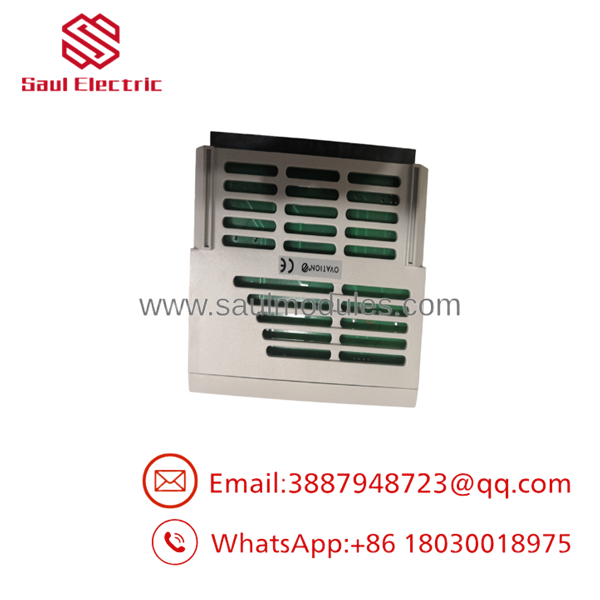

1C31197G05

Field Application & the “Trench” Experience

A common outage scenario starts with a control valve that no longer tracks its commanded position. The DCS operator sees a persistent position error. The actuator is inspected. The mechanical linkage is acceptable. The field wiring appears intact.

The replacement decision then gets interesting.

A technician sees 1C31197G05 and searches for “Ovation analog module.” That search can produce misleading listings describing it as a 16-channel analog-input card. Ordering that substitute would be a serious classification error.

The correct path is to identify the complete valve-positioner EMOD + PMOD assembly. Emerson’s parts documentation separates the two components, with 1C31197G05 designated as the PMOD.

Specific application scenarios

• Boiler feedwater control valves: maintaining commanded valve position within a legacy Ovation control loop.
• Steam and turbine auxiliary valves: positioning control valves where DCS output and valve feedback must remain coordinated.
• Process flow-control valves: maintaining actuator position for pressure, temperature, or flow regulation.

The PMOD should therefore be evaluated as part of the complete positioner architecture, not as an isolated general-purpose I/O card.

Transparency SOP: QA & Testing

For New Surplus or refurbished 1C31197G05 stock, the inspection should follow the actual PMOD role.

Step 1 — Identity

Confirm:

1C31197G05

Record the complete label, revision, assembly markings, and any subassembly numbers visible on the board.

Step 2 — Configuration

Confirm that the destination system actually uses an Ovation valve-positioner assembly. Emerson’s spare-parts documentation identifies the component specifically as a valve-positioner PMOD.

Step 3 — Physical inspection

Inspect the:

• PCB and components
• Connector interfaces
• Mounting hardware
• Keying/interface features
• Labels and revision markings
• Evidence of corrosion or contamination
• Signs of previous repair or component replacement

Step 4 — Companion-module verification

Record the installed EMOD before removing the PMOD. Emerson lists:

• 1C31194G03 — Valve Positioner EMOD, Ovation 3.5 and later
• 1C31194G04 — Valve Positioner EMOD, Ovation 3.5 and later
• 1C31197G05 — Valve Positioner PMOD

Step 5 — Functional verification

The best test is an assembly-level test using the appropriate EMOD, PMOD, terminal interface, and representative valve-positioner signals.

A continuity check or visual inspection alone does not prove correct valve-positioning operation.

Step 6 — Commercial QA

For surplus stock, document:

Exact part number → revision → physical condition → packaging → test status → warranty

One current supplier listing advertises a 12-month warranty, while another lists the component as used. These listings demonstrate why condition and warranty should be confirmed on the actual quotation rather than assumed from the part number.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP — 1C31197G05 is a PMOD, not a generic analog-input card.

This is the biggest cataloging trap. Emerson’s official documentation is explicit: PMOD ASSY, VALVE POSITIONER.

⚠️ Do not buy the PMOD without checking the EMOD.

The valve-positioner assembly has separate electronics and personality components. Confirm whether the installed system uses 1C31194G03 or 1C31194G04, or another documented configuration, before ordering.

⚠️ Do not trust copied reseller specifications blindly.

A listing that describes the exact same 1C31197G05 as a 16-channel analog-input module is technically inconsistent with Emerson’s own parts list. That is a strong warning sign when evaluating automated product catalogs.

PRO TIP: Ask the supplier for a clear photograph of the actual 1C31197G05 label and PCB markings, not a stock image. One third-party unit, for example, shows Rev. 09 and additional assembly/subassembly markings that can help establish identity.

Dynamic FAQ

What is Emerson 1C31197G05?

It is an Ovation Valve Positioner Personality Module (PMOD) assembly. Emerson’s official spare-parts documentation gives this exact classification.

Is 1C31197G05 a complete valve positioner?

No. It is the PMOD assembly. The complete Ovation valve-positioner function involves the corresponding EMOD and associated terminal/field interface hardware.

Which EMOD is associated with 1C31197G05?

For Ovation 3.5 and later, Emerson lists 1C31194G03 and 1C31194G04 as valve-positioner EMOD assemblies, while 1C31197G05 is the PMOD. The exact pairing should be verified against the site’s installed configuration.

Why do some websites call 1C31197G05 an analog-input module?

Some reseller databases appear to have copied or incorrectly assigned generic Ovation specifications to the part. One such listing calls it a 16-channel analog-input module, which conflicts with Emerson’s official designation.

Is 1C31197G05 available as New Surplus?

Third-party suppliers currently list the part in new and used conditions. However, availability and condition vary by seller, so request photographs, revision information, packaging status, and test documentation before purchase.

What warranty should I expect?

Warranty is supplier-specific. One current listing advertises 12 months, but that should not be interpreted as an OEM warranty. For New Surplus or refurbished stock, obtain the warranty period and coverage in writing on the quotation.
