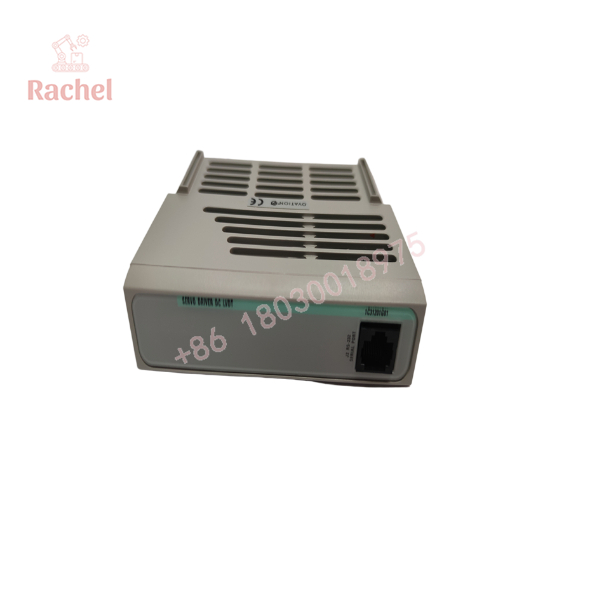

Emerson 1C31201G01 Servo Driver Module

Description

Product Introduction & Engineering Value

Servo control loops rarely fail because of one obvious component. A mismatched personality module can create difficult-to-trace problems: unstable actuator response, incorrect feedback scaling, or failed calibration. The Emerson 1C31201G01 was designed specifically for Ovation Servo Driver applications requiring DC LVDT feedback.

This module works together with the 1C31199G01 Servo Driver Electronics Module to provide six-channel servo interface capability. It is commonly maintained as a critical spare in turbine control and process applications where actuator positioning accuracy directly affects plant operation.

Technical Specifications

Field Application & The “Trench” Experience

A combined-cycle power plant experienced slow response on a steam turbine control valve during load changes. The actuator assembly passed mechanical inspection, but loop diagnostics showed inconsistent servo feedback behavior after a previous maintenance replacement.

During the investigation, technicians discovered that the installed personality module belonged to an AC LVDT configuration rather than the required DC LVDT setup. Replacing it with an Emerson 1C31201G01 restored the correct ±16 VDC LVDT interface, allowing the servo loop calibration procedure to complete successfully.

Common deployment scenarios include:

• Steam turbine electro-hydraulic control (EHC) servo actuator positioning
• Turbine inlet valve and governor valve feedback systems
• Industrial hydraulic actuator control loops using DC LVDT position sensors

1C31201G01

1C31201G01

Transparency SOP: QA & Testing

Before a 1C31201G01 enters a critical spare inventory program, a practical verification process should include:

1. Identification Check

• Confirm Emerson part marking.
• Verify exact suffix: 1C31201G01.
• Check connector condition and PCB integrity.

2. Electrical Inspection

• Verify resistor network configuration.
• Check field interface continuity.
• Inspect RJ-45 service port condition.

3. Functional Validation

• Test compatibility with 1C31199G01 electronics where available.
• Confirm correct DC LVDT interface behavior.
• Record test results for maintenance history.

4. Storage Review

New Surplus units should be checked for proper storage conditions, packaging integrity, and signs of moisture exposure before installation.

The Veteran’s Tech Trap Guide

⚠️ Trap #1: Mixing 1C31201G01 and 1C31201G02

These two modules are not interchangeable.

• 1C31201G01 → DC LVDT interface, used with 1C31199G01
• 1C31201G02 → AC LVDT configurations using 19 VPP excitation

Installing the wrong personality module can produce a configuration mismatch even though the hardware physically fits the rack.

⚠️ Trap #2: Ignoring the Electronics Module Pair

The personality module does not operate independently.

PRO TIP: Always verify the complete EMOD + PMOD combination before ordering replacement inventory.

Correct pairing:

1C31199G01 + 1C31201G01

⚠️ Trap #3: Skipping LVDT Calibration

After replacement, technicians should confirm:

• Feedback polarity
• Position scaling
• Servo response direction
• Mechanical stroke limits

A successful power-up does not prove the servo loop is correctly tuned.

Dynamic FAQ

Q1. What is the Emerson 1C31201G01 used for?

The 1C31201G01 is an Ovation Servo Driver Personality Module designed for servo driver applications using DC LVDT feedback signals.

Q2. Which electronics module works with 1C31201G01?

The compatible electronics module is Emerson Ovation 1C31199G01. Together they form the six-channel Servo Driver configuration with ±16 VDC LVDT output.

Q3. Can 1C31201G01 replace 1C31201G02?

No. The two modules support different LVDT excitation methods. 1C31201G01 is intended for DC LVDT applications, while G02 is associated with AC LVDT configurations.

Q4. What should be checked when purchasing New Surplus 1C31201G01?

Recommended checks include:

• Original Emerson labeling
• Correct G01 revision
• Connector condition
• Storage environment
• Electrical test documentation

Q5. Is refurbished 1C31201G01 suitable as an emergency spare?

Yes, provided the module has passed inspection and functional verification. For turbine control systems, documented testing is more important than cosmetic condition.

Q6. What warranty should buyers expect?

Warranty coverage depends on supplier condition classification. New Surplus and professionally refurbished units are typically supplied with limited warranty terms that should be confirmed before purchase.
