Emerson 1C31238H01 Ovation Contact Input Module

Description

Product Introduction

The Emerson 1C31238H01 (legacy Westinghouse) is a PMOD (Personality Module) cavity insert engineered for the Ovation Distributed Control System (DCS). Installed directly into the Electronics Base cavity, this module interfaces field-level discrete signals—such as limit switch trip contacts, breaker statuses, and alarm relays—directly into the Ovation I/O bus.

Unlike standard DIN-rail I/O blocks that require excessive cabinet wiring, the 1C31238H01 utilizes Ovation’s blind-mate PMOD architecture. This design delivers physical channel isolation and signal conditioning before raw field data hits the main I/O processor. It provides ultra-reliable signal acquisition in high-noise power generation and heavy processing facilities where false trip signals are not an option.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 3:30 AM on a blistering summer night, and a 500MW combined-cycle turbine trips off-line because a degraded contact input module misread a lube-oil pressure switch state. The plant is losing tens of thousands of dollars per hour in ungenerated power. You need a drop-in 1C31238H01 PMOD insert that seats cleanly into the existing base, clears the channel fault immediately, and gets the unit back on the grid before the morning peak.

• Power Generation (Thermal & Nuclear) – Turbine trip circuit monitoring – Delivers fast contact state detection without debouncing delays.
• Oil & Gas Refining – Safety interlock switch feedback – Isolates field voltage surges from the main Ovation controller.
• Chemical Processing – Valve position feedback monitoring – Tracks limit switches across heavy-corrosion processing racks.
• Water & Wastewater Treatment – High/Low tank level float switch inputs – Reads long-distance field dry contacts reliably.

Field Case Study

A coal-fired power station in West Virginia experienced intermittent alarm chattering on a boiler feed pump trip circuit. Diagnostics traced the issue to thermal fatigue on an aged PMOD insert in a high-ambient cabinet. We overnighted a fully bench-tested 1C31238H01 module. The instrument technician hot-swapped the insert out of the Ovation base without powering down the node, restoring solid contact reading in under five minutes.

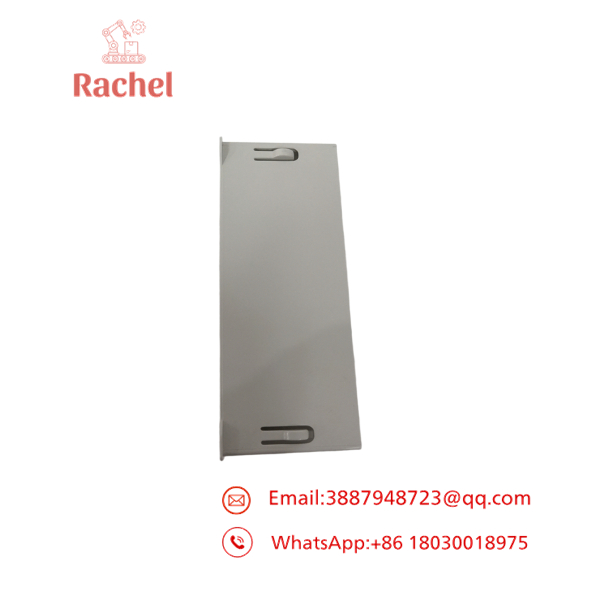

1C31238H01

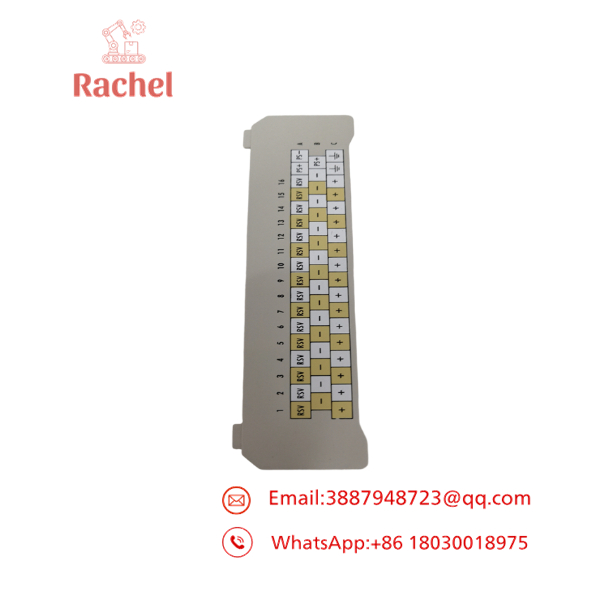

1C31238H01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Ovation test racks:

1. Inbound Visual Inspection: Check physical housing, locking tabs, and card-edge connector pins for corrosion or mechanical distortion.
2. Keying & Alignment Test: Verify the PMOD seats firmly into a standard Ovation base slot without binding.
3. Live Rig Power-On: Mount the 1C31238H01 into an active Ovation I/O rack running test controller firmware.
4. Channel-by-Channel Signal Injection: Drive 24V DC and dry contact triggers across all 16 input channels to verify state transitions and LED indicators.
5. Isolation & Resistance Checks: Perform high-potential testing to ensure proper channel-to-backplane galvanic isolation.
6. ESD Packaging: Apply anti-static coating, wrap in shielding bags, and pack in custom-cut foam boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Inspect the Female Base Contacts First: If an old 1C31238H01 burned out due to a severe field overvoltage, check the female socket on the Ovation base card before inserting the new module. A pitted or blackened socket will destroy the gold pins on your replacement card instantly.
• ❗ Verify Module Keying Pins: Ovation PMODs use mechanical keying to prevent placing the wrong module type into a configured slot. Make sure the plastic key pins match your base slot configuration—never force a card into the cavity.
• ⚠️ Watch for Field Wetted Voltage: Ensure your external field voltage source matches the software database setup (e.g., internal vs. external 24V wetting supply). Mismatching field power routing will prevent contact closure detection.
• ❗ Proper Seating Pressure: When pushing the insert into the base, apply even thumb pressure on both ends until the plastic retention latches click into place. An unseated PMOD will trigger intermittent backplane communication drops.

Frequently Asked Questions

Q: Is the Emerson Ovation 1C31238H01 module hot-swappable?

A: Yes. Provided your Ovation DCS controller and base assembly support hot-swapping for that specific I/O branch, you can pull and replace the 1C31238H01 PMOD insert without shutting down system power or dropping the controller.

Q: Is Westinghouse 1C31238H01 the exact same product as Emerson 1C31238H01?

A: Yes. Westinghouse Process Control was acquired by Emerson and rebranded under the Ovation umbrella. The part numbers remained identical, and Westinghouse-branded cards are 100% drop-in compatible with Emerson Ovation bases.

Q: Does this module require software re-configuration when replaced?

A: No. If you are replacing a failed 1C31238H01 with an identical part number, the Ovation controller maintains the channel configuration database. The new card will assume the existing point mapping as soon as it seats and handshakes.

Q: What is the difference between a PMOD insert and a main I/O module in Ovation?

A: The PMOD (Personality Module) insert handles the physical field interface, signal conditioning, and termination routing, while the main Ovation I/O module executes the digital processing and backplane communication.

Q: What warranty is provided with this unit?

A: Every 1C31238H01 component—whether New Surplus or bench-tested Refurbished—comes backed by a full 12-month operational warranty covering all hardware components and functionality.
