Emerson Westinghouse 1C31238H01 Ovation Comm Module

Description

Product Introduction

The Emerson Westinghouse 1C31238H01 is a critical Communication and Interface Module engineered for the Ovation Distributed Control System (DCS). Operating within the controller chassis or sub-tier extension ranks, it acts as a dedicated hardware conduit for high-speed data exchanges between process CPUs and local field I/O racks.

Designed to offload low-level protocol management and backplane handshakes from the main controller, the 1C31238H01 maintains tight deterministic scan cycles across dense I/O arrangements. Its rugged onboard transceiver circuitry protects backplane logic from external electrical noise and cross-talk, keeping network communication error-free during heavy plant load transitions.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:15 AM on a hot summer night, and a combined-cycle plant’s main control room alarms light up with a “Sub-Tier Bus Timeout” error. Half of the auxiliary cooling pump I/O points freeze in their last known state on the operator screen. The issue isn’t a dead CPU or field wiring fault—it’s an aging interface card whose bus drivers degraded under cabinet heat, dropping network frames.

In our field experience, dedicated communication boards like the 1C31238H01 are essential for keeping distributed cabinet setups properly synchronized. Primary application scenarios include:

• Power Generation – Main Boiler Sub-Tier Expansion: Manages real-time data transfers between primary controller baseplates and distributed draft fan I/O ranks.
• Oil & Gas – Compressor Skid Integration: Handles high-speed data exchanges across local controller racks to ensure low-latency valve position feedback.
• Chemical Refineries – Multi-Rack Unit Control: Coordinates high-density communication traffic between central processors and remote I/O cabinets.
• Water & Utilities – Main Pumping Station Control: Maintains reliable backplane communication across extended control cabinet lineups.

Field Case Study: A continuous chemical plant in Indiana experienced sporadic I/O sub-tier disconnects that caused nuisance process holds. Emerson quoted an extended 10-week factory lead time for a replacement interface module. We verified backplane bus handshakes and signal integrity on a surplus 1C31238H01 using our test bench setup, then shipped it overnight. The plant crew replaced the module during a scheduled 1-hour window, immediately restoring rock-solid communication across all downstream baseplates.

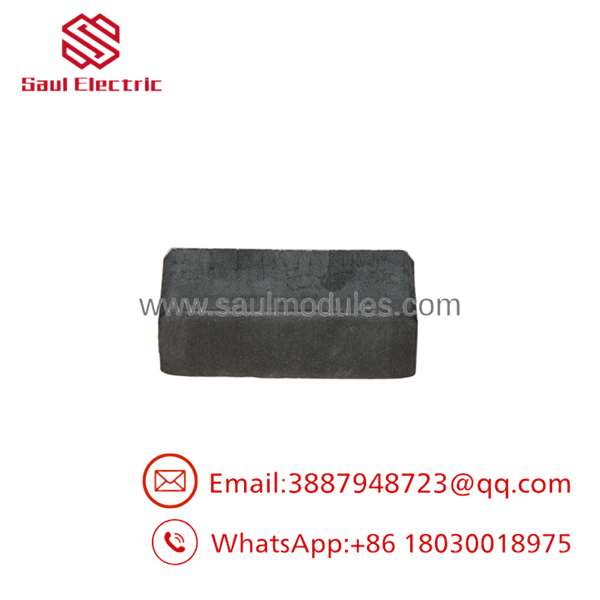

1C31238H01

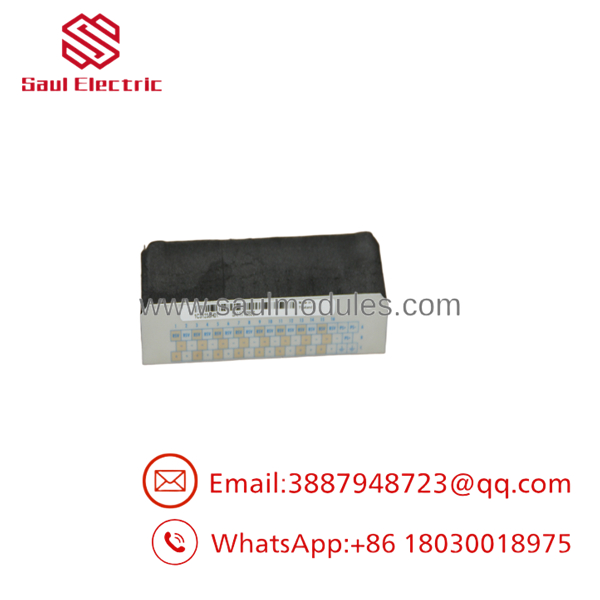

1C31238H01

Transparency SOP: Quality Assurance & Testing

We do not just box up surplus cards; we test them on actual Emerson Ovation hardware. Our 5-step SOP includes:

1. Inbound Visual Inspection: Inspect PCB traces for thermal stress, check capacitor ESR values, verify edge connector pins, and confirm original OEM serial tags.
2. Backplane Interface & Power Test: Slot the card into an active Ovation baseplate to verify clean power distribution and initial bus handshakes.
3. High-Speed Network Stress Test: Transmit continuous high-density data traffic across the backplane bus to guarantee zero dropped frames or bit errors.
4. Thermal Stress Chamber Run: Operate the module under full communication load in an elevated-temperature chamber to catch heat-induced component breakdown.
5. ESD-Safe Packaging: Seal the cleared board in anti-static shielding bags with custom foam cradles for transport safety.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match Hardware Jumpers and Address Switches: Mirror every jumper block and address setting from the old board before seating the replacement 1C31238H01. A wrong sub-tier or node address will cause the main controller to ignore the rack or report backplane collision errors.
• ❗ Inspect the Baseplate Backplane Pins: Ovation baseplate connectors are unforgiving. Grab a flashlight and check inside the slot before sliding the module in. Inserting the card at an angle can bend the pins and short out the rack’s 24V supply rail.
• ⚠️ Verify Bus Extension Cable Integrity: If your sub-tier setup uses ribbon or coaxial interconnect cables between baseplates, inspect the connectors for pin corrosion or loose strain reliefs. A damaged cable will mimic a module failure.
• ❗ Never Force Card Seating: The module should slide smoothly along its plastic guides and seat with firm pressure. If you meet hard resistance, stop—you are likely catching an edge on the backplane connector.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 1C31238H01 module hot-swappable while the system is energized?

A: Mechanically, the Ovation baseplate supports hot insertion. Practically, pulling a backplane communication board will sever data flow to every I/O card on that sub-tier. Always place connected control loops in manual or bypass before pulling the module.

Q: Does this card require board-level software configuration or firmware flashing upon replacement?

A: No separate firmware utility is needed for direct hardware replacement. Once seated with the correct hardware address jumpers, the module syncs its operational parameters automatically from the Ovation controller at startup.

Q: What is the primary point of failure for these communication modules?

A: Thermal degradation of onboard bus transceiver ICs and drying out of filter capacitors caused by long-term operation in unventilated or overcrowded control cabinets.

Q: Why choose test-certified surplus over factory-new from the OEM?

A: Factory lead times for legacy Ovation hardware can extend into months. Our surplus stock is bench-tested, ready to ship today, and priced significantly lower without compromising system performance.

Q: What warranty comes with this 1C31238H01 module?

A: We cover this module with a comprehensive 12-month replacement warranty. If a board fails during bench setup or field operation, we swap it immediately from our ready stock.
