Description
Product Introduction & Engineering Value
The 5X00070G01 is the electronics module for an Ovation high-speed analog-input assembly. It provides eight individually isolated channels, 14-bit conversion, and 50/60 samples-per-second acquisition. The associated Personality Module conditions and protects the field signals before they reach the electronics module and its A/D conversion circuitry.
This distinction is important when ordering a spare. The 5X00070G01 is the EMOD, while 1C31227G01 is the corresponding current-input PMOD in the documented high-speed configuration. Treating either component as a complete standalone I/O assembly can result in an incorrect replacement order.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 5X00070G01 |
| Manufacturer | Emerson / Westinghouse |
| System | Ovation DCS |
| Module Type | High-Speed Analog Input Electronics Module |
| Input Signal | 4–20 mA |
| Number of Channels | 8 |
| Channel Isolation | Individually isolated |
| Resolution | 14-bit |
| Sampling Rate | 50 or 60 samples/s |
| Associated PMOD | 1C31227G01 |
| Self-Calibration | Initiated by Ovation controller |
| Diagnostics | Internal fault, out-of-range, and open-loop detection |
| Channel-to-Channel Isolation | 1000 V AC/DC |
| Channel-to-Logic Isolation | 1000 V AC/DC |
The reference manual states that the high-speed analog-input assembly provides eight individually isolated channels with 14-bit resolution and conversion rates of 50 or 60 samples per second. It also identifies 5X00070G01 specifically for the 4–20 mA current-input configuration.
High-Speed Architecture
The documented signal path is essentially:
4–20 mA field signal → 1C31227G01 PMOD → 5X00070G01 EMOD → A/D conversion → Ovation Serial I/O Bus
The PMOD performs signal conditioning and provides surge protection, while the EMOD performs the analog-to-digital conversion and interfaces with the Ovation Serial I/O Bus.
This is one of the most useful identification points for procurement.

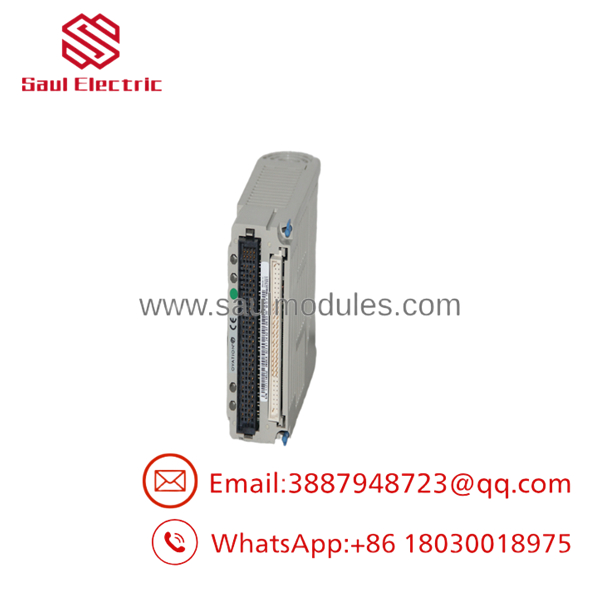

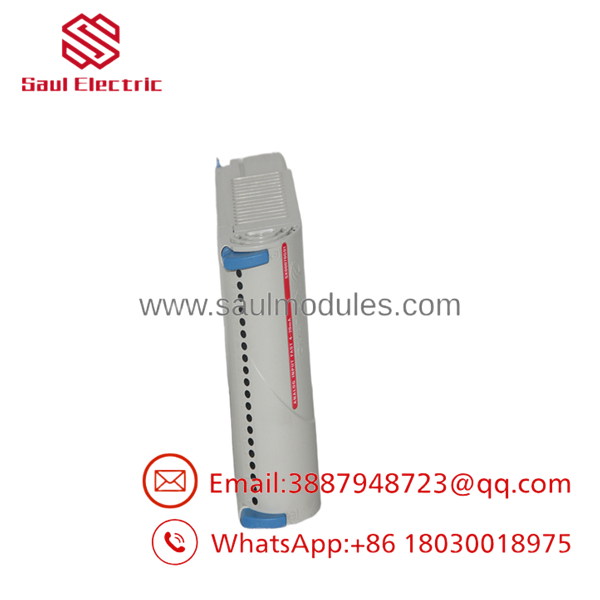

5X00070G01
5X00070G01

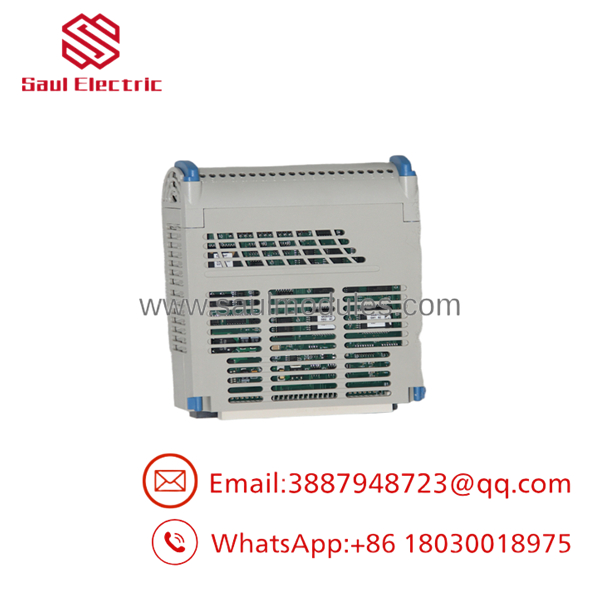

5X00070G01
Field Application & the “Trench” Experience
A plant has eight process transmitters connected to an Ovation high-speed analog-input assembly. One channel begins showing erratic values. The transmitter checks correctly at the field junction box, and the loop current measures normally.
The maintenance team swaps the transmitter.
Nothing changes.
That is when the I/O assembly becomes the suspect. With the 5X00070G01, the engineer should distinguish between a field-loop problem, PMOD signal-conditioning problem, and EMOD conversion problem. Swapping the complete assembly without isolating those layers can turn a one-channel fault into an unnecessary cabinet intervention.
A useful field test is to apply a calibrated 4–20 mA source to the suspect channel and compare its reported value with a known-good channel. If the source is correct but the digital value remains incorrect, the troubleshooting path moves toward the I/O hardware rather than the field transmitter.
Specific application scenarios
- Boiler process instrumentation: fast acquisition of 4–20 mA pressure, flow, and level transmitter signals.
- Turbine auxiliary monitoring: isolated current-loop measurements where multiple process variables must be acquired through one Ovation I/O assembly.
- Combustion and balance-of-plant monitoring: high-speed acquisition of analog process signals where 50/60 samples per second are required by the control application.
Transparency SOP: QA & Testing
For New Surplus or refurbished 5X00070G01 stock, a visual inspection alone is insufficient.
1. Verify the exact EMOD
Confirm the label reads:
5X00070G01
Do not confuse it with the other high-speed analog-input electronics variants:
- 5X00070G02 — low-level voltage inputs
- 5X00070G03 — higher-range voltage inputs
- 5X00070G04 — thermocouple configuration
The Ovation reference manual explicitly separates these module groups by signal type.
2. Inspect the hardware
Check the PCB and connectors for:
- Bent or contaminated pins
- Corrosion
- Overheating
- Damaged components
- Evidence of previous repair
- Incorrect or missing identification labels
3. Verify all eight channels
A proper bench test should exercise all eight channels, not merely channel 1.
Use a calibrated current source and check representative points such as:
4 mA → mid-range → 20 mA
Compare the reported digital value against the expected value.
4. Test diagnostics
Where the test setup supports it, verify:
- Open-loop detection
- Out-of-range detection
- Internal module diagnostics
- Channel isolation
These functions are documented for the high-speed analog-input configuration.
5. Test the EMOD with the correct PMOD
Because the complete high-speed analog-input assembly combines the Personality and Electronics Modules, testing the 5X00070G01 with the correct 1C31227G01 PMOD gives a much stronger acceptance test than testing the board in isolation.
For surplus procurement, retain the actual-unit photograph, part number, revision, test results, condition statement, and warranty.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP — 5X00070G01 is the EMOD.
The associated current-input PMOD is 1C31227G01. Emerson’s reference documentation describes the two-module architecture explicitly.
⚠️ Do not substitute another 5X00070Gxx module based on physical similarity.
The G01/G02/G03/G04 variants correspond to different signal types. The G01 is the 4–20 mA version.
⚠️ Do not confuse “high speed” with high-frequency sampling.
The documented conversion rate is 50 or 60 samples per second, depending on system configuration. Some reseller listings incorrectly advertise substantially different sampling figures, so the Ovation reference manual should take precedence.
PRO TIP: If a reseller describes 5X00070G01 as an “analog output” module, stop and verify the part number. The available Ovation documentation clearly identifies it as a high-speed analog input electronics module.
Dynamic FAQ
What is Emerson 5X00070G01?
It is an Ovation High-Speed Analog Input Electronics Module designed for 4–20 mA current signals. Emerson’s reference manual identifies it as the G01 electronics-module variant for this input type.
How many inputs does 5X00070G01 have?
The high-speed analog-input configuration provides eight individually isolated input channels.
What is the resolution?
The documented resolution is 14 bits. The conversion rate is 50 or 60 samples per second.
Which PMOD works with 5X00070G01?
The documented current-input configuration uses 1C31227G01 as the Personality Module. The PMOD handles signal conditioning and surge protection, while 5X00070G01 performs the A/D conversion and Serial I/O Bus interface.
Is 5X00070G01 still available?
Third-party industrial suppliers currently list the part in new, surplus, and refurbished conditions. Radwell, for example, currently lists multiple condition categories for the part, including new, never-used, and refurbished inventory.
How should New Surplus authenticity be verified?
Request an actual-unit photograph, exact 5X00070G01 nameplate, revision information, packaging details, test evidence, and written warranty. A supplier’s “new” or “genuine” description is not by itself proof of current OEM production. Current suppliers advertise different warranty terms, including 12-month and 2-year supplier warranties.
