Emerson DX-205 DeltaV DX Controller Module

Description

Product Introduction

The Emerson DX-205 (DX205) is a core process controller module engineered for the Emerson DeltaV Distributed Control System (DCS). Operating as the central intelligence node within its assigned control sub-rack, the DX-205 executes complex batch, continuous, and discrete control algorithms while continuously managing real-time data flow between field I/O cards and the operator workstation network.

Built for mission-critical industrial environments, the DX-205 features ruggedized hardware designed to withstand electrical noise, elevated ambient temperatures, and continuous duty cycles. Integrating the DX-205 into an existing DeltaV architecture ensures full compatibility with legacy control block configurations, preventing node communication faults or timing discrepancies during a direct module swap.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a primary DCS controller unit fails in a continuous processing plant, the consequences are immediate and severe. A sudden CPU lockup or bus communication fault on an old controller node can lock control valves in their last positions, orphan safety alarms, and force an emergency shutdown of an entire refinery or chemical synthesis loop. In an operational facility running legacy DeltaV firmware, upgrading the entire control rack to a newer M-series or S-series controller is an extended capital project requiring re-engineering, downtime, and re-validation. Keeping a bench-certified, direct-replacement Emerson DX-205 module in plant inventory allows maintenance teams to perform an immediate physical swap, download the node configuration from the DeltaV ProPlus workstation, and restore normal loop control in under an hour.

• Chemical Processing Facilities – Continuous Reactor Loop Control – Coordinates multi-variable PID control loops, temperature regulation, and feed-rate valve positioners.
• Oil & Gas Refining – Distillation Column Monitoring – Manages high-density field I/O communication across hazardous plant areas via intrinsic safety barriers.
• Pharmaceutical Manufacturing – Automated Batch Processing – Executes precise recipe logic sequences and time-stamped alarm logging in compliance with strict regulatory standards.
• Power & Utility Plants – Auxiliary Boiler Control – Oversees burner management handshakes, feedwater level monitoring, and steam pressure control loops.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on live Emerson DeltaV controller racks. Every DX-205 module undergoes a thorough 5-step engineering verification process before dispatch:

1. Inbound Visual Inspection: Component-level inspection under magnification checking backplane connector pin alignment, heat sink integrity, housing latches, and checking for board corrosion or heat stress marks.
2. Cold Power Rail Checks: Multi-meter continuity and resistance testing on internal power conversion rails to ensure no short circuits exist prior to applying power.
3. Live System Rack Power-On: Inserted into a energized DeltaV controller carrier base. Verifies initial power-on self-test (POST) sequences, LED diagnostic handshakes, and node address assignment.
4. Network & Firmware Verification: Ethernet port handshake testing across redundant channels, communication link ping checks, and logging onboard controller system revisions.
5. Final Cleanup & Static Protection: Ultrasonic housing cleanup, application of anti-static protective wrapping, and custom foam-padded box packaging.

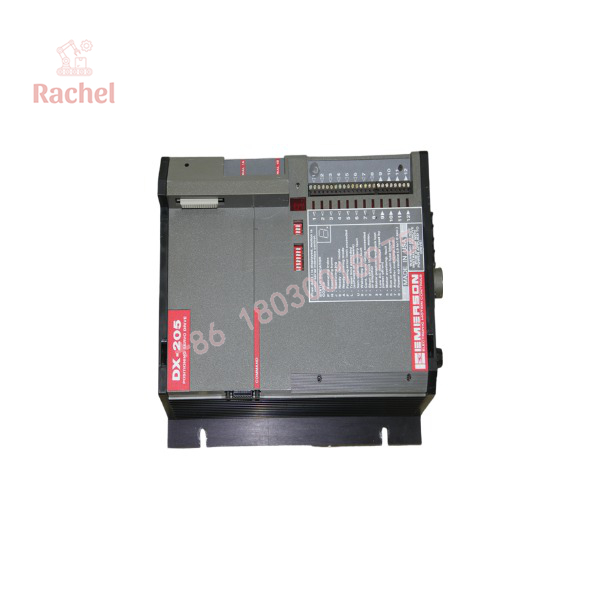

DX-205

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Watch Out for Controller Node Address Mismatches!

Before installing the replacement DX-205 onto the carrier base, verify the rotary address switches or software node assignment settings. If the replacement module boots up with a conflicting node address on the DeltaV Control Network (CNET), it will cause communication timeouts across adjacent control nodes.

❗ Firmware Compatibility Is Non-Negotiable

DeltaV controllers are closely tied to the software system release version running on your ProPlus engineering station. Dropping a DX-205 with an incompatible system firmware version onto an active carrier may cause the node to stay in an “Error” or “Decommissioned” state. Always check system compatibility logs and prepare to re-flash or commission the controller via DeltaV Explorer before putting it online.

⚠️ De-energize the Carrier Power Before Seating the Module

To be honest, while modern field bus modules are often advertised as hot-swappable, pulling or inserting a primary system controller card while power is actively feeding the local I/O carrier bus can generate inductive spikes that trip adjacent I/O modules or disrupt real-time control traffic on the backplane.

❗ Verify Backplate Connector Seating

Ensure the top and bottom carrier locking levers click completely into place. A partially seated DX-205 module can make intermittent contact on its 24V DC power rails or local I/O bus, resulting in sporadic controller resets during high-vibration plant operations.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Emerson DX-205 controller hot-swappable?

A: In a redundant controller pair setup, the standby controller can typically be replaced while the primary controller maintains process operations. However, for non-redundant single-controller nodes, taking the controller offline will drop control of connected I/O, so power should be isolated before swapping the module.

Q: Can I replace a DX-205 with an Emerson M-series controller module directly?

A: Not directly on the same physical carrier footprint. Transitioning to newer M-series or S-series controllers generally requires updating the controller carrier base plates and verifying system software license compatibility within DeltaV. A direct DX-205 replacement avoids these hardware modifications.

Q: How do I commission a replacement DX-205 controller on my DeltaV system?

A: Insert the module into the carrier, connect the Ethernet ports, and open the DeltaV Explorer application on your engineering workstation. Locate the newly detected node under the system layout, right-click, select “Commission”, and download the node configuration.

Q: Are these DX-205 modules brand new original Emerson manufacture?

A: Because the DX series includes legacy hardware lines, our inventory consists of high-quality New Surplus (unused original packaging) and professionally refurbished, fully bench-tested units sourced through audited global industrial inventory networks.

Q: What warranty coverage comes with this controller module?

A: Every Emerson DX-205 module shipped comes standard with a full 12-month functional replacement warranty. If any operational defect or hardware failure occurs under standard operating parameters within one year, we will repair or replace the unit immediately.
