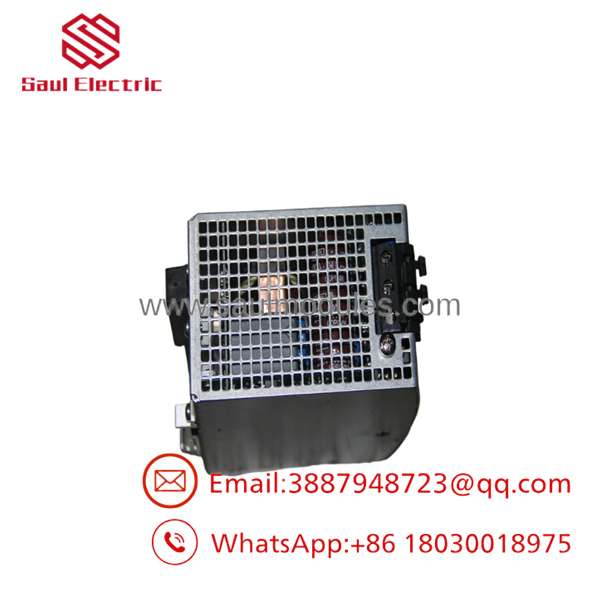

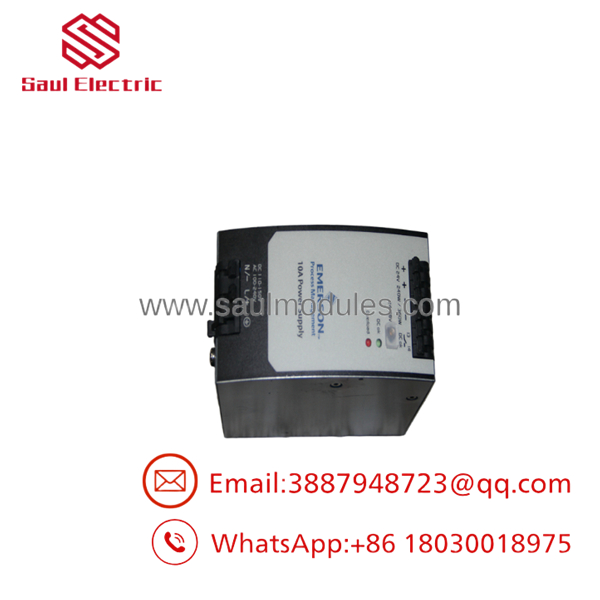

Emerson 1X00781H01L Ovation DIN-Rail Power Supply

Description

Product Introduction & Engineering Value

The 1X00781H01L is a DIN-rail-mounted power supply used within the Emerson Ovation control-system architecture. Its documented output is 24 VDC at 10 A, making it a 240 W-class supply suitable for control-system and I/O power distribution. Emerson lists the part directly in its Ovation spare-parts documentation.

This is a power component, not an Ovation CPU, I/O card, or communication module. The input arrangement is particularly useful in plant environments because published specifications identify a wide AC/DC input range. Before replacement, however, verify the actual cabinet power-distribution scheme and whether the supply is installed as part of a redundant configuration.



Technical Specifications

Parameter	Specification
Part Number	1X00781H01L
Manufacturer	Emerson
System	Ovation DCS
Product Type	DIN-Rail Power Supply
Output Voltage	24 VDC
Output Current	10 A
Nominal Output Power	240 W
AC Input Range	85–264 VAC
DC Input Range	90–375 VDC
Mounting	DIN rail
Enclosure Rating	IP20
Reported Operating Temperature	-20 to +60°C
Reported Efficiency	Up to 86%
Reported Weight	Approximately 0.68–0.9 kg

The 85–264 VAC / 90–375 VDC input range, 24 VDC / 10 A output, 240 W rating, IP20 enclosure, and -20 to +60°C operating range are reported by current industrial suppliers.

Power architecture matters

A third-party technical description of the Ovation power architecture explains that the control-system power arrangement can use redundant configurations with separate external AC and/or DC feeds, with 24 VDC outputs used for controller chassis, I/O modules, loops, and contact wetting.

That does not mean every installation uses 1X00781H01L in exactly the same redundant arrangement. Cabinet drawings remain the controlling document.

Field Application & the “Trench” Experience

A typical outage problem starts with several Ovation I/O channels dropping simultaneously. The I/O modules themselves look healthy, but multiple devices report loss of power.

Replacing individual I/O cards would be the wrong first move.

When several otherwise unrelated channels fail at the same time, check the 24 VDC distribution first. A degraded DIN-rail power supply, loose terminal, blown upstream protection device, or failed redundant feed can create a cabinet-wide symptom.

The 1X00781H01L is exactly the type of component that should be checked during that investigation. Its role is fundamentally different from the I/O modules it supplies.

Specific application scenarios

• Ovation remote I/O cabinets: supplying 24 VDC to distributed control-system hardware.
• Power-plant control cabinets: providing DC power for I/O, interface equipment, and associated field circuits.
• Legacy Ovation cabinet refurbishment: replacing an aging DIN-rail supply without redesigning the complete control architecture.



Transparency SOP: QA & Testing

For New Surplus or refurbished 1X00781H01L inventory, use a power-supply-specific receiving test.

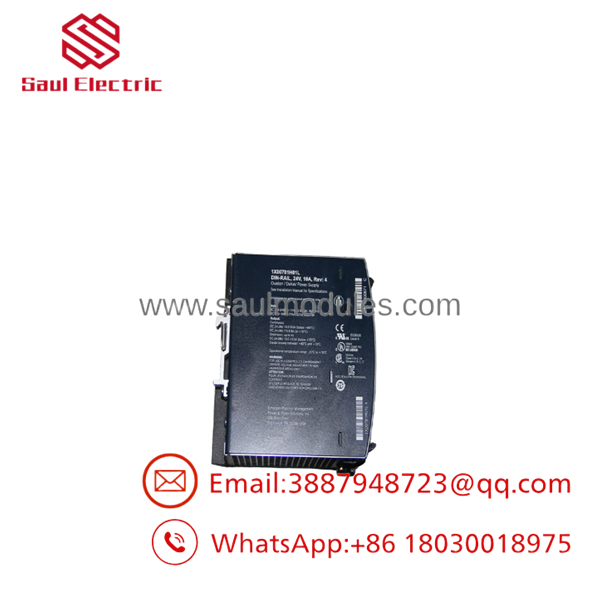

1. Nameplate verification

Confirm:

1X00781H01L

Do not accept 1X00781H01, 1X00781H01L with a missing suffix, or a visually similar 24 VDC supply without checking the exact installed part number.

2. Physical inspection

Inspect:

• DIN-rail mounting mechanism
• Input terminals
• 24 VDC output terminals
• Ventilation openings
• Housing
• Terminal screws
• Label and rating plate
• Signs of overheating or contamination

3. No-load voltage test

Apply the appropriate input voltage through a controlled test setup and verify the DC output before connecting an Ovation load.

4. Load test

A proper acceptance test should progressively load the supply toward its rated output rather than relying on a simple no-load voltage reading.

For this model, the published rating is:

24 VDC × 10 A = 240 W

5. Protection verification

Where the test equipment permits it, verify the supply’s response to overload and short-circuit conditions according to the manufacturer’s applicable test procedure.

Do not deliberately short a live industrial power supply without appropriate laboratory protection.

6. Documentation

For surplus inventory, record:

Part number → serial/lot marking → condition → input/output test → packaging → warranty

Emerson states that its factory-certified Ovation replacement parts are subject to procedures covering design, manufacture, installation, and testing.



The Veteran’s Tech Trap Guide

⚠️ PRO TIP — 24 VDC output does not make every DIN-rail supply interchangeable.

The important parameters include input range, output current, protection behavior, mounting arrangement, terminal layout, and the cabinet’s redundancy scheme.

⚠️ Check the actual input source.

The published range is unusually broad: 85–264 VAC or 90–375 VDC.

If the existing cabinet is supplied from a particular AC or DC source, verify the upstream distribution and protective devices rather than assuming the replacement will automatically suit the installation.

⚠️ Do not confuse power-supply failure with I/O failure.

If several Ovation modules lose power together, troubleshoot the common 24 VDC supply path before replacing multiple I/O modules.

PRO TIP: Record the measured input voltage, 24 VDC output voltage, load current, and redundant-feed status before removing the old supply. Those four measurements can save substantial troubleshooting time during recommissioning.



Dynamic FAQ

What is Emerson 1X00781H01L?

It is an Ovation DIN-rail power supply rated at 24 VDC, 10 A. Emerson’s official Ovation spare-parts list identifies it as a DIN-rail 24 VDC / 10 A power supply.

What is the output power?

The nominal output is 240 W, calculated from 24 VDC × 10 A. Current supplier specifications also list it as a 240 W supply.

What input voltage does 1X00781H01L accept?

Published specifications list 85–264 VAC or 90–375 VDC. Verify the actual supply nameplate before applying power, particularly on legacy equipment where revisions may differ.

Is 1X00781H01L used in redundant Ovation power systems?

It can be used within Ovation power architectures that employ redundant supplies and separate feeds. However, the exact redundancy arrangement is installation-dependent and should be confirmed against the cabinet drawings.

Is 1X00781H01L discontinued?

At least one current industrial supplier identifies the part as discontinued by the manufacturer, while other suppliers continue to advertise new or surplus inventory.

For procurement, treat remaining stock as legacy inventory and request actual-unit photographs, condition, manufacturing/serial information where available, test evidence, and written warranty.

Can I buy it as New Surplus?

Yes, suppliers currently advertise new or unused units. However, “brand new” is a supplier condition statement, not automatically proof of current OEM production. One supplier currently lists a 12-month warranty, while Emerson’s own documentation describes factory-certified replacement parts as undergoing controlled quality procedures.
