Emerson KJ3222X1-BA1 DeltaV Analog Input Module

Description

Product Introduction & Engineering Value

The KJ3222X1-BA1 is designed for bringing analog process measurements into an Emerson DeltaV control system. In a typical process installation, the module sits between field instrumentation and the DeltaV controller, converting incoming analog signals into data that the control strategy can use.

This makes the module relevant to applications such as pressure, temperature, flow, level, and other continuous process measurements.

For procurement, however, the model number alone should not be used to infer every electrical characteristic. DeltaV has multiple generations of analog I/O hardware with similar-looking part-number structures. Confirm the actual signal range, channel configuration, terminal base, and hardware revision against the installed system documentation before replacement.

Technical Specifications

Procurement Note

Do not populate an online listing with an assumed 4–20 mA, 0–10 V, HART, accuracy, or isolation specification unless it has been confirmed for the exact KJ3222X1-BA1 variant.

For a replacement order, the safest identification package is:

KJ3222X1-BA1 + complete nameplate photograph + hardware revision + terminal-base part number + existing DeltaV system information.

Field Application & the “Trench” Experience

Analog-input failures are often misdiagnosed.

A pressure transmitter may appear to be faulty because the operator sees an abnormal process value. But the actual problem could be the field wiring, transmitter power, termination assembly, I/O channel, or the DeltaV configuration.

When troubleshooting a KJ3222X1-BA1 installation, isolate the problem systematically:

1. Verify the transmitter output.
2. Check the field loop and termination.
3. Check channel status and diagnostics in DeltaV.
4. Compare the affected channel with a known-good channel.
5. Confirm the terminal-base connections.
6. Only then condemn the I/O module.

This approach avoids replacing an expensive DeltaV card when the actual failure is a loose termination or field instrument.

Typical Applications

• Process pressure measurement
• Flow measurement
• Level measurement
• Temperature instrumentation
• Chemical processing
• Oil and gas control systems
• Power-generation auxiliary systems
• Water and wastewater process control

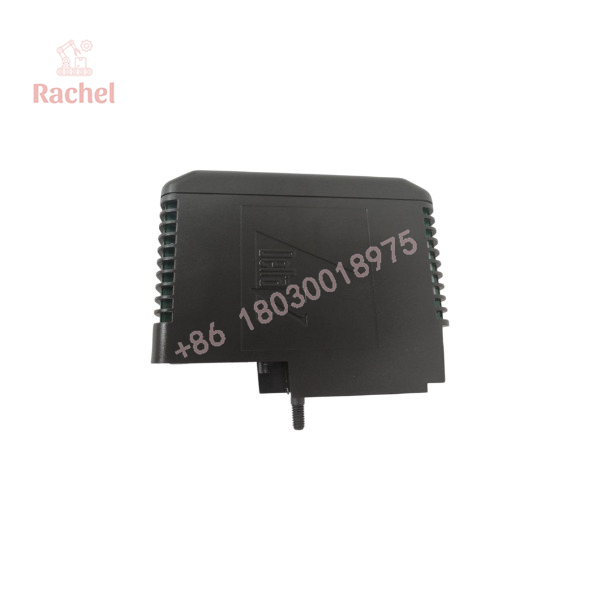

KJ3222X1-BA1

KJ3222X1-BA1

Transparency SOP: QA & Testing

For New Surplus or hed stock, testing should be performed at the I/O-system level whenever possible.

Identification

Verify:

• EMERSON
• Hardware/revision markings
• Terminal-base compatibility
• Connector condition

Physical Inspection

Check for:

• Corrosion
• Contamination
• Damaged terminals
• Bent connector contacts
• Cracked PCB solder joints
• Heat damage
• Previous repair work

Functional Test

A suitable test should include:

1. Install the module in a compatible DeltaV I/O carrier.
2. Confirm that DeltaV recognizes the module.
3. Apply appropriate simulated analog signals.
4. Verify channel readings.
5. Check channel diagnostics.
6. Test multiple channels rather than only Channel 1.
7. Confirm stable readings during extended operation.

For refurbished inventory, a supplier should ideally provide a test report or test record, not simply state that the module is “tested.”

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming every KJ3222X1 module has identical specifications.

The suffix and revision matter. Do not substitute another KJ3222X1 variant solely because the base model appears similar.

⚠️ Trap #2 — Ignoring the terminal base.

The I/O module is part of a DeltaV modular architecture. The correct card paired with the wrong terminal-base arrangement can create an installation problem even when the module itself is genuine.

⚠️ Trap #3 — Replacing the card before checking the loop.

A failed transmitter, blown fuse, open field wire, or termination problem can produce symptoms that look like an analog-input card failure.

PRO TIP: When purchasing a replacement, send the supplier photographs of both the KJ3222X1-BA1 nameplate and the installed terminal-base assembly. This is much safer than sending only “KJ3222X1.”

Dynamic FAQ

What is this?

It is an Emerson DeltaV analog-input I/O module intended to acquire continuous process measurements for the control system.

How many channels does it have?

The is identified as an 8-channel analog-input module.

Is it a digital input or output module?

No. It is an analog-input module.

Is a 4–20 mA module?

4–20 mA is common in DeltaV process instrumentation, but the exact signal capability should be confirmed against the official documentation for the specific KJ3222X1-BA1 hardware revision before publishing it as a guaranteed specification.

Can another KJ3222X1 variant replace it?

Do not assume direct interchangeability. Verify the complete part number, revision, signal type, terminal base, and DeltaV configuration first.

Is refurbished KJ3222X1-BA1 suitable for a plant spare?

Yes, provided the module is correctly identified and tested. For a critical process-control application, prioritize a supplier that can demonstrate DeltaV system recognition and multi-channel analog testing rather than merely visual inspection.

What should I include in a purchase request?

Use a description such as:

Emerson DeltaV KJ3222X1-BA1, 8-channel analog input module, exact replacement; verify revision and terminal-base compatibility before shipment.
