Description
Product Introduction
The Emerson / Westinghouse 1C31189G03 is a rugged, 16-channel digital input electronics module engineered for the Ovation Distributed Control System (DCS). Operating as a key binary interface within industrial control architectures, it monitors discrete field contact states—such as breaker auxiliary switches, limit switches, pressure switches, and safety interlocks.
Designed to operate in harsh electrical environments, the 1C31189G03 features high-performance optical isolation on every channel to protect internal backplane logic from ground loops, switching surges, and field wiring transients. It processes fast contact state transitions with millisecond-level precision, making it suitable for Sequence of Events (SOE) tracking during plant trip analysis.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Process Management / Westinghouse |
| System Architecture | Ovation Distributed Control System (DCS) |
| Part Number | 1C31189G03(EMOD ASSY) |
| Module Type | Discrete / Digital Input Module |
| Channel Capacity | 16 isolated digital input channels |
| Input Signals | Dry contact closure or externally powered DC voltage inputs |
| Isolation | Channel-to-bus optical dielectric isolation |
| Diagnostics | Individual channel status LEDs (1–16) + Module Power/Fault LEDs |
| Base Compatibility | Standard Ovation I/O Base Assemblies (e.g., 1B30035H01) |
| Hot-Swap Capability | Supported in online Ovation I/O base racks |
Application Scenarios & The “Trench” Experience
During an unexpected unit trip at a combined-cycle power station, operators rely on the DCS Sequence of Events log to isolate the root cause. A failing digital input card can misreport contact timing, leading to confusion. Replacing the suspect module with a bench-tested Emerson 1C31189G03 ensures precise, chatter-filtered contact state recording across critical trip chains.
- Power Generation Protection: Monitors generator breaker position, transformer trip contacts, and turbine emergency stop pushbuttons.
- Motor Control Centers (MCC): Tracks motor run status, overload trip contacts, and local/remote selector switches.
- Boiler Safety Interlocks: Captures flame detector logic states, drum water level limit switches, and forced-draft fan trip interlocks.
- Process Valve Feedback: Reads open/closed limit switch states from motorized and pneumatic isolation valves.

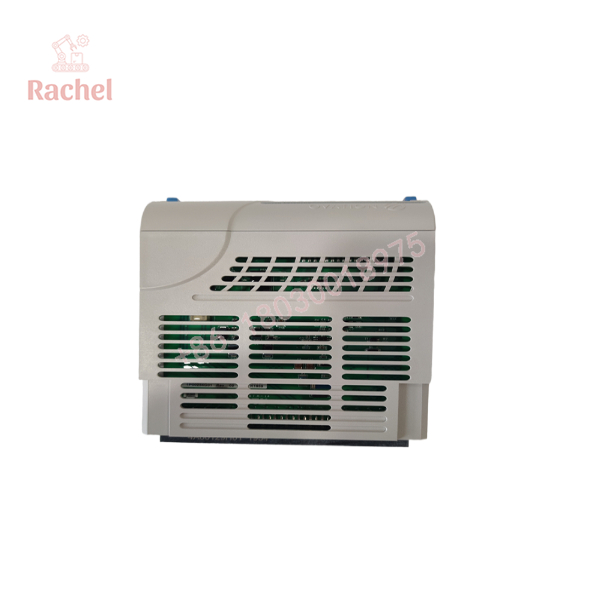

1C31189G03

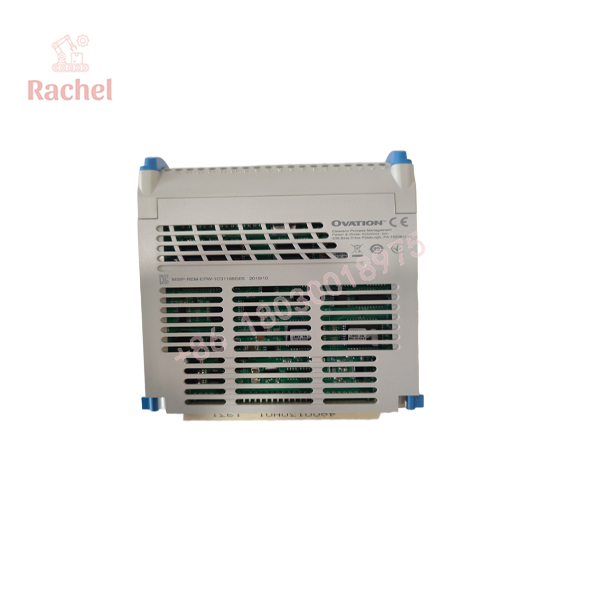

1C31189G03
Transparency SOP: Quality Assurance & Testing
- Visual & Structural Audit: Inspect edge connector gold contacts for wear or contamination, check card latches, and inspect surface-mount components under magnification.
- Backplane Boot POST: Seat unit into an Ovation test rack; verify clean controller handshake and green logic power LED illumination.
- 16-Channel Contact Injection: Inject 24V DC / dry-contact closures across all 16 channels individually; verify immediate logic state transitions and front-panel LED toggling.
- Noise & Optical Isolation Test: Apply high-voltage dielectric isolation checks between field terminal lines and backplane logic channels.
- ESD Protection & Packaging: Vacuum-seal inside anti-static shielding bags, cushion with high-density foam padding, and package in a heavy-duty shipping box.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match Field Voltage Pairings: Ensure the underlying Personality Module (PMOD) matches your field voltage supply (e.g., 24VDC, 48VDC, or 125VDC/AC). Inserting a 1C31189G03 onto a mismatched PMOD base can burn out channel optocouplers.
- ❗ Debounce / Filter Time Setup: Configure software input filtering (contact chatter debounce) in the Ovation drop. Fast mechanical contacts on large breakers can bounce, generating false multiple-trip events in the log.
- ⚠️ Check Wetting Voltage Supply: If configured for dry contacts, ensure external or internal 24V DC wetting power is properly wired to the base terminal block; otherwise, all 16 channels will show inactive state.
- ❗ Observe Group Common Isolation Rules: Verify whether field inputs share common return paths on the base assembly to prevent accidental short circuits across distinct field control loops.
Frequently Asked Questions (FAQ)
Q: Does the 1C31189G03 support Sequence of Events (SOE) timestamping?
A: Yes. When paired with an Ovation SOE personality module and system configuration, the card provides high-resolution timestamping of contact state changes.
Q: Can this module be hot-swapped while the DCS is online?
A: Yes. When installed in a standard Ovation I/O base assembly, the card supports live insertion and removal without disrupting adjacent slots.
Q: What do the front-panel LEDs indicate?
A: The card features a power/fault LED along with 16 individual channel status LEDs that light up when a channel detects an active ON state.
Q: What warranty applies to this surplus Emerson card?
A: All clean surplus and bench-tested Emerson 1C31189G03 digital input modules include a full 12-month replacement warranty from the delivery date.
