Emerson Westinghouse 1C31197G01 Digital Input Module

Description

Product Introduction

The Emerson Westinghouse 1C31197G01 is a high-reliability Digital Input Module built for the Ovation Distributed Control System (DCS). It serves as the primary discrete sensing interface, capturing dry contact states, limit switch positions, proximity sensors, and alarm relay signals across power generation and heavy process plants.

Engineered to operate in high-noise electrical environments, the 1C31197G01 features robust optical isolation on every input channel to protect sensitive backplane logic from field voltage spikes and ground loops. High-speed signal conditioning ensures deterministic scan updates, allowing the Ovation controller to execute fast sequence-of-events (SOE) logging and critical interlock logic without missing sub-millisecond state transitions.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It is 11:30 PM on a stormy night, and a combined-cycle plant’s trip summary screen flashes dozens of false breaker alarms simultaneously. The main controller hasn’t crashed, but an aging digital input board suffered a failed optocoupler array from a lightning-induced ground surge. The false inputs triggered a premature sequence-of-events interlock, forcing a unit offline during peak tariff rates.

In our field experience, solid discrete input cards like the 1C31197G01 are the baseline defense for plant interlocks. Primary application scenarios include:

• Power Generation – Burner Management Systems (BMS): Monitors flame detector contacts, valve limit switches, and purge air pressure switches for boiler permissive logic.
• Oil & Gas – Emergency Shutdown Systems (ESD): Captures high-priority pushbuttons, level switches, and gas detector alarm dry contacts.
• Chemical Refineries – Motor Control Center (MCC) Integration: Monitors run/stop auxiliary contact feedback from high-voltage pumps and fan drives.
• Water & Utilities – Valve Position Feedback: Reads open/close limit switch states across distributed motorized valve actuators.

Field Case Study: A municipal power plant in Indiana faced an unexpected outage on their auxiliary boiler line when a failing digital input module dropped contact feedback from the main draft fan MCC. Emerson quoted an extended 12-week factory lead time. We bench-tested a surplus 1C31197G01, verified channel optical isolation and signal debounce timing, and hand-delivered the card to the site. The instrument team installed the board during a 2-hour window, cleared the false trip condition, and brought the boiler back on line that afternoon.

Transparency SOP: Quality Assurance & Testing

We do not just box up surplus cards; we test them on actual Emerson Ovation hardware. Our 5-step SOP includes:

1. Inbound Visual Inspection: Check PCB traces for thermal stress, verify capacitor ESR, inspect connector pins, and confirm original Westinghouse/Emerson serial tags.
2. Backplane Interface & Power Test: Slot the card into an active Ovation baseplate to verify backplane bus communications and power rail health.
3. All-Channel Field Injection Check: Inject high and low voltage signals across every individual input point to verify optocoupler switching and LED status indication.
4. Thermal Stress Chamber Run: Soak the board under active switching cycles in an elevated-temperature chamber to catch heat-induced component drift.
5. ESD-Safe Packaging: Seal the cleared card in anti-static shielding bags with custom foam cradles for transport safety.

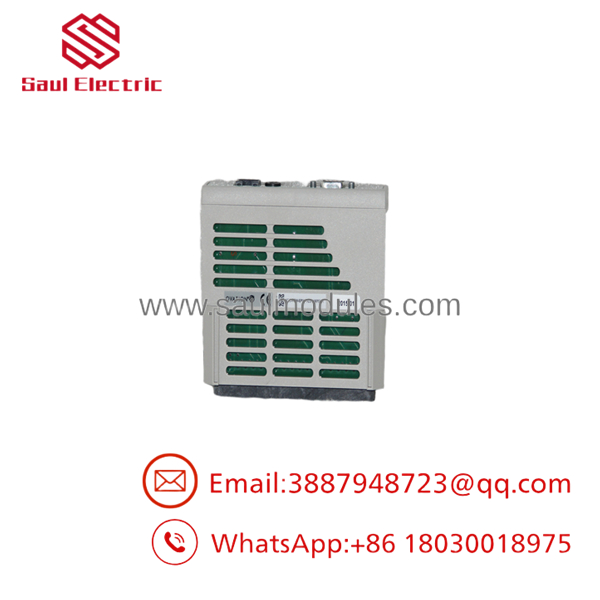

1C31197G01

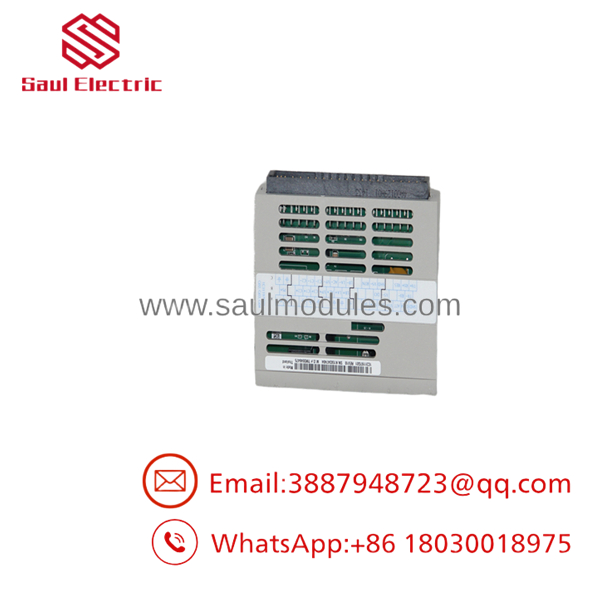

1C31197G01

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Check Field Wetted Voltage Sourcing: Verify whether your Field Termination Assembly (FTA) supplies external wetting voltage (e.g., 24VDC or 120VAC depending on the FTA configuration) before landing wires. Applying incorrect field voltage directly to input terminals will fry the input resistor networks.
• ❗ Verify Debounce Settings in Developer Studio: Switch contact bounce can register as multiple rapid state changes if digital filtering is configured incorrectly in software. If you see erratic SOE logs, check the channel filter constants in your Ovation Developer Studio configuration.
• ⚠️ Inspect the Baseplate Backplane Pins: Ovation baseplate backplanes are unforgiving. Inspect the backplane slot with a flashlight before seating the module. Forcing a card in at an angle will crush the rear interface pins and trip the 24V supply.
• ❗ Lift Field Wiring Prior to Module Replacement: Even if replacing a hot-swappable module, disconnect or disable active trip loops wired to that card’s FTA. A momentary false state change during card insertion can trigger downstream interlocks.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 1C31197G01 module hot-swappable while the Ovation system is running?

A: Mechanically, the Ovation baseplate supports hot insertion. Practically, you must ensure that pulling the card will not drop critical safety interlocks or trigger false trips on active process equipment. Put critical loops in manual or bypass before pulling the module.

Q: Does the 1C31197G01 require software configuration or firmware flashing upon installation?

A: No board-level firmware flashing is required for standard hardware replacement. The module automatically receives its channel assignment and filtering parameters from the Ovation controller software upon slot power-up.

Q: What is the primary point of failure on these digital input modules?

A: Over-voltage spikes from field surges or lightning strikes that damage the optical isolators, or long-term heat exposure that degrades input resistor arrays in tight, unventilated cabinets.

Q: Why choose test-certified surplus over factory-new from the OEM?

A: OEM lead times for legacy Ovation modules often stretch into months. Our surplus stock is fully bench-tested, ready to ship today, and priced significantly lower without compromising system reliability.

Q: What warranty comes with this 1C31197G01 module?

A: We back this card with a comprehensive 12-month replacement warranty. If a module fails during bench testing or field operation, we swap it immediately from our ready stock.
