Emerson Ovation 5X00070G04 Low-Level Analog Input Electronics Module

Description

Product Introduction

The Emerson 5X00070G04 is an 8-channel low-level analog input electronic module specifically engineered for the Westinghouse / Emerson Ovation Distributed Control System (DCS). Operating within thermal power plants, nuclear facilities, and heavy industrial processing facilities, this module plugs into standard Ovation I/O base units to process small millivolt-level signals generated by specialized sensors, thermocouples, and strain-gauge transmitters.

Unlike high-level 4–20mA input cards, the 5X00070G04 incorporates high-precision, low-noise front-end instrumentation amplifiers to capture full-scale ranges down to \pm20 mV, \pm50 mV, or \pm100 mV without introducing thermal drift or noise corruption. In our field experience, replacing a degraded unit with this exact model preserves existing cold-junction calibration profiles and wiring configurations, restoring stable millivolt telemetry without re-tuning Ovation Developer Studio point databases.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A utility power plant experienced an erratic temperature alarm sequence across its turbine casing thermocouples. The Ovation operator workstation reported fluctuating millivolt spikes that triggered false high-temperature limits on the steam chest. Field measurement with a calibrated process calibrator confirmed the thermocouples were outputting clean 24 mV signals, pointing directly to a failed, noisy input amplifier stage on the existing low-level analog input card.

• Power Generation Facilities – Steam Turbine Casing Monitoring – Reads direct thermocouple/millivolt feeds to monitor thermal stress during cold starts.
• Metal Processing & Smelters – High-Temperature Furnace Control – Measures low-voltage sensor output across intense thermal zones.
• Heavy Machinery Maintenance – Strain Gauge & Torque Telemetry – Acquires millivolt bridge outputs to prevent mechanical over-torque conditions.

The instrument technician hot-swapped the faulty 5X00070G04 module with a bench-tested surplus unit. The new card immediately locked onto the differential signals, eliminated the spurious temperature spikes, and restored accurate process telemetry within 15 minutes without halting the main turbine control loop.

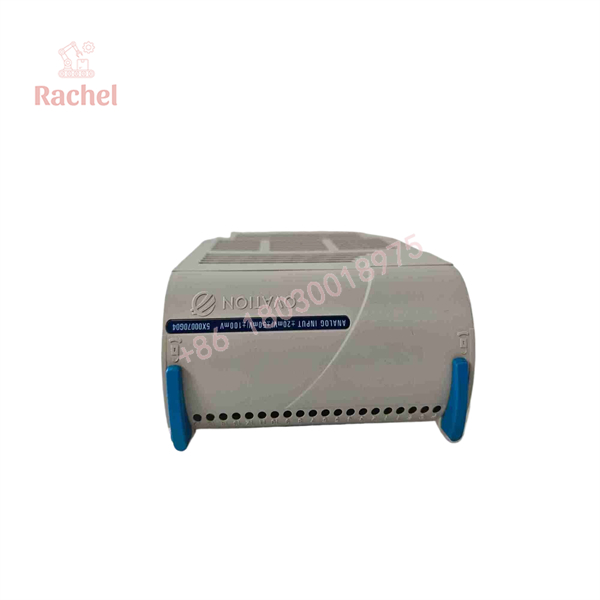

5X00070G04

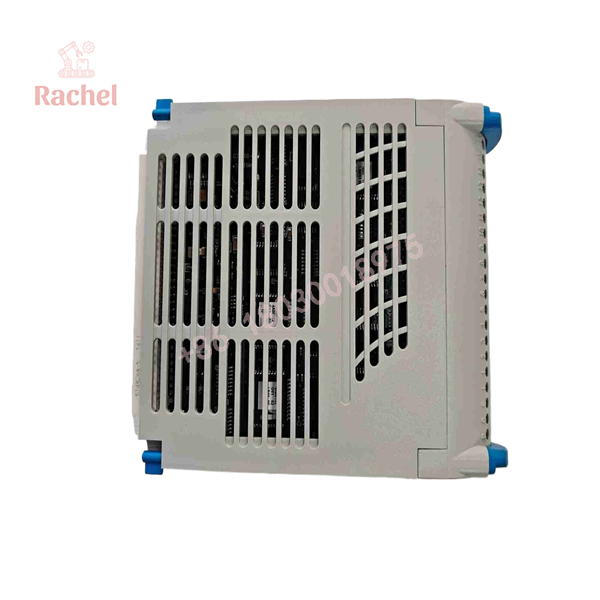

5X00070G04

Transparency SOP: Quality Assurance & Testing

We do not just ship modules; we test them on live Emerson Ovation controller test racks. Every 5X00070G04 electronic module undergoes the following verification process:

1. Inbound Visual & Pin Inspection: Examining all rear backplane connectors, housing alignment tabs, and PCB components for thermal degradation or pin bend.
2. Logic & Power Rail Isolation Test: Checking dielectric resistance between logic supply lines and field-side signal paths to ensure 1000V isolation integrity.
3. 8-Channel Millivolt Precision Calibration: Injecting precise \pm20 mV, \pm50 mV, and \pm100 mV inputs from a Fluke process calibrator into all 8 channels to confirm A/D accuracy within \pm0.1\% of full scale.
4. Common-Mode Noise Rejection Test: Verifying differential amplifier noise filtering under simulated high-EMF industrial cabinet conditions.
5. ESD Protective Packaging: Sealing the module in anti-static ESD bags and packing it within custom shock-absorbing foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do Not Confuse Low-Level mV Cards with Standard 4-20mA Cards: The 5X00070G04 is specifically designed for millivolt-level signals (\pm20 mV to \pm100 mV). Applying a standard 24VDC loop power or high-voltage transmitter signal directly to this card will permanently destroy the sensitive front-end A/D converter channels.
• ❗ Shielding & Grounding Integrity is Critical: Millivolt signals are extremely sensitive to electromagnetic interference (EMI) and ground loops. Always ensure that field signal cable shields are grounded at one end only (preferably at the Ovation cabinet grounding bus) to prevent induced noise on the 5X00070G04 inputs.
• ⚠️ Check Dip-Switches and Firmware Range Settings: Signal range configuration (\pm20 mV vs \pm100 mV) depends on software point setup in Ovation Developer Studio combined with hardware settings. Verify that replacement module jumper settings match your original card before inserting it into the live rack.

Frequently Asked Questions (FAQ for Conversion)

Q: Does the 5X00070G04 support standard 4-20mA current loop inputs?

A: No. This module is dedicated to low-level millivolt voltage inputs. For standard 4-20mA process loops, use standard Ovation high-level analog input cards (such as 1C31224G01 or 5X00070G01/G02 variants).

Q: Can I hot-swap this electronic module while the Ovation controller is powered?

A: Yes. Ovation I/O architecture supports online replacement of the electronic module. Unlatch the housing tabs and slide the module straight out from its base unit without removing terminal wiring.

Q: What LED indications are present on the front panel?

A: The front panel includes status LEDs indicating Power/Health (Green), Active Backplane Communication (Green), and Module/Channel Fault (Red).

Q: Is a personality module required with this card?

A: Yes. The 5X00070G04 is the active electronic module. It mounts on an Ovation I/O base unit equipped with the matching personality module that houses the field wiring terminals and passive filtering components.

Q: What warranty comes with this surplus Ovation module?

A: Every new surplus and rig-tested 5X00070G04 module is backed by our full 12-month replacement warranty.
