Emerson Westinghouse 1C31203G01 Ovation Comm Module

Description

Product Introduction

The Emerson Westinghouse 1C31203G01 is an essential Controller Communication and Interface Module engineered for the Ovation Distributed Control System (DCS). It acts as a high-speed data conduit between the main Ovation controller CPU and local or remote I/O sub-tier baseplates, ensuring deterministic logic updates across the entire cabinet setup.

Instead of bogging down main control execution, the 1C31203G01 handles protocol management, bus arbitration, and error-checking in hardware. Its isolated architecture protects the main processing core from local backplane noise, keeping communication latencies tight even when handling dense analog and discrete I/O traffic during severe plant upsets.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 2:00 AM on a freezing winter night. A coal-fired power plant’s forced draft fan subsystem suddenly reports a “Sub-Tier Bus Comm Fault.” The main controller loses contact with half of the cabinet’s analog input cards. The system fails to safety, dropping the fan and forcing an emergency load shed to prevent a total boiler trip.

In our field experience, communication modules like the 1C31203G01 don’t fail often, but when an onboard transceiver dies from years of thermal cycling, it takes down every I/O card downstream. Typical application environments include:

• Power Generation – Main Boiler & Turbine Control: Coordinates real-time data flow between primary controller racks and distributed I/O sub-tiers.
• Oil Refineries – Continuous Process Units: Manages high-speed communication lines to prevent data drops on critical pressure control loops.
• Chemical Plants – Batch Processing Lines: Transmits multi-channel field data without lag to maintain tight recipe execution timing.
• Water Treatment – High-Pressure Pump Stations: Handles remote sub-tier communications across long cabinet lineups.

Field Case Study: A chemical refinery in Louisiana experienced intermittent backplane timeouts that were dropping communication to a critical valve manifold. Emerson quoted an 8-week lead time for a replacement interface module. We pulled a surplus 1C31203G01 from our stock, verified the jumper configurations and bus transceiver health on our test bench, and had it on a flight that morning. The plant team swapped the board during a brief maintenance window, instantly clearing the bus errors and restoring steady-state communication across all I/O ranks.

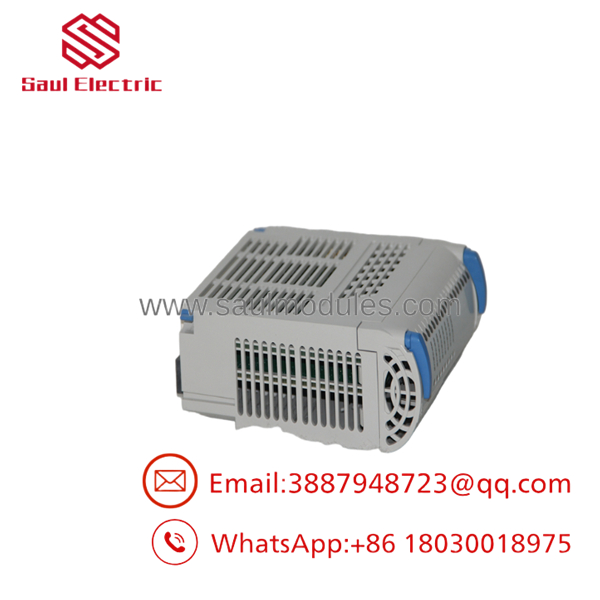

1C31203G01

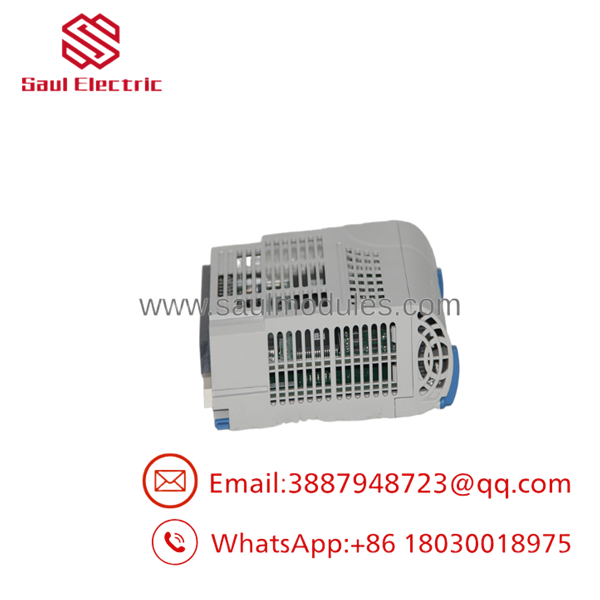

1C31203G01

Transparency SOP: Quality Assurance & Testing

We don’t just ship surplus boxes; we physically test every module on actual Emerson Ovation racks. Our 5-step SOP includes:

1. Inbound Visual Inspection: Check PCB traces for thermal stress, verify capacitor condition, inspect edge connectors, and confirm original Westinghouse/Emerson serial tags.
2. Backplane Interface & Power Test: Slot the card into an active Ovation baseplate to verify backplane bus communications and power rail distribution.
3. High-Speed Communication Loop Test: Drive continuous data packets across the primary and secondary bus interfaces to guarantee zero dropped packets or framing errors.
4. Thermal Stress Chamber Run: Soak the board under full communication load in an elevated-temperature chamber to catch heat-induced component degradation.
5. ESD-Safe Packaging: Seal the cleared card in anti-static shielding bags with custom foam cradles for safe transit.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match Board Jumpers and Addressing: Before seating the replacement 1C31203G01, mirror every onboard DIP switch and jumper block from the old board. If your node or sub-tier address is set wrong, the main controller will refuse the connection or clash with another module on the bus.
• ❗ Inspect Backplane Connector Pins First: Ovation backplane connectors are unforgiving. Grab a flashlight and look inside the baseplate slot before sliding the new board in. A single bent backplane pin can short out the 24V supply and ruin the new card immediately.
• ⚠️ Verify Dual-Bus Cables Are Seated: If your system uses redundant bus ribbon cables between baseplates, make sure both channels are locked down securely. A loose cable header will throw silent redundancy errors in Ovation Developer Studio.
• ❗ Don’t Force the Card: The card should slide smoothly along its guides and seat with firm, uniform pressure. If you feel hard resistance, stop—you’re likely catching a pin or misalignment on the rear connector.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I hot-swap the 1C31203G01 module while the controller is live?

A: Mechanically, the Ovation baseplate supports hot swapping. Practically, pulling a communication module will drop data flow to every I/O card on that sub-tier. Place affected control loops in manual or bypass before pulling the module.

Q: What is the main cause of failure for the 1C31203G01?

A: Heat and power supply ripple. Over years of continuous operation in warm, unventilated control cabinets, onboard electrolytic capacitors dry out and bus transceiver ICs degrade, leading to intermittent comm timeouts.

Q: Does this module require firmware flashing upon installation?

A: No separate firmware tool is needed for standard board replacement. Once seated with the correct hardware address jumpers, the module syncs its operating parameters directly with the Ovation controller software at startup.

Q: Why choose test-certified surplus over factory-new from the OEM?

A: OEM factory lead times for legacy Ovation hardware can span months. Our surplus modules are bench-tested, ready to ship today, and priced significantly lower without compromising operational reliability.

Q: What warranty comes with this 1C31203G01 module?

A: We cover this board with a comprehensive 12-month replacement warranty. If it fails on your test bench or in the field, we replace it immediately from our ready stock.
