Description
Product Introduction & Engineering Value
The Emerson Ovation 5X00226G02 is an I/O Interface Module designed for Ovation DCS installations requiring communication between the control system and distributed I/O hardware. It serves as a key interface component in OCR 400-based architectures, supporting reliable field signal exchange within process automation systems.
In long-running power and process facilities, interface modules are often overlooked until communication faults appear. A failed I/O interface module can affect multiple downstream signals, making accurate spare identification, firmware compatibility checks, and functional testing essential before installation.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson |
| Product Series | Ovation |
| Part Number | 5X00226G02 |
| Module Type | I/O Interface Module |
| Architecture | OCR 400 I/O Interface |
| Installation Method | Rack mounting |
| Communication Function | Controller-to-I/O subsystem interface |
| Signal Handling | Digital and analog I/O data exchange support |
| System Compatibility | Emerson Ovation DCS |
| Operating Voltage | 24 VDC system supply environment |
| Configuration | Hardware-configured Ovation module |
| Application Area | Power generation and process automation |
| Typical Use | Remote I/O communication and field interface management |
Field Application & The “Trench” Experience
A utility operator running an Ovation-controlled boiler system experienced intermittent loss of several remote I/O points. Operators noticed that certain field indications disappeared briefly while controller diagnostics reported communication irregularities.
The first troubleshooting step focused on field wiring because several instruments were located in a remote equipment area. However, loop checks showed the field devices were operating correctly. The maintenance team then moved upstream and identified instability in the I/O interface path.
A tested Emerson 5X00226G02 replacement module was installed. After hardware diagnostics, rack communication checks, and I/O verification, the affected signals returned without requiring changes to the field instruments.
The field lesson: interface modules sit in the middle of the control chain. A failure here can imitate problems in controllers, networks, or field devices.
Typical application scenarios:
- Ovation-controlled boiler and turbine auxiliary systems
- Remote I/O cabinets in power generation facilities
- Industrial process monitoring systems using OCR 400 architecture
- Legacy Ovation DCS migration and maintenance projects

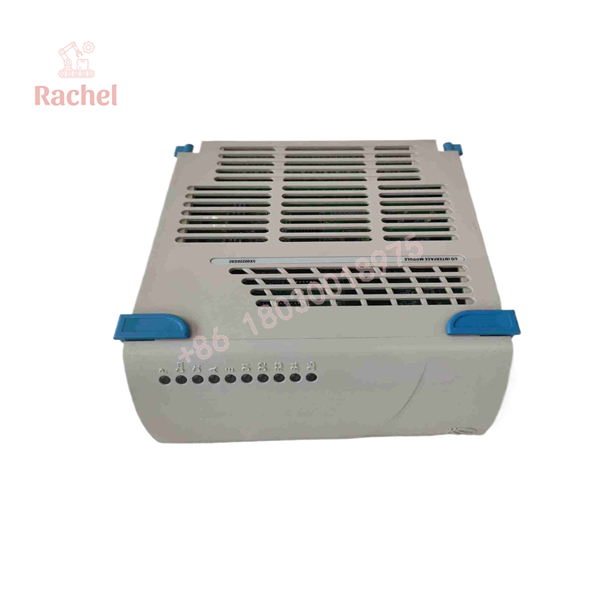

5X00226G02

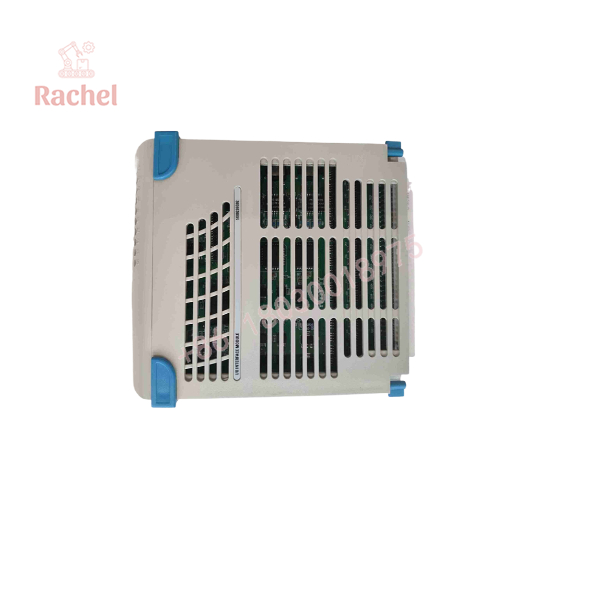

5X00226G02
Transparency SOP: QA & Testing
Interface modules require communication verification, not only visual inspection.
Testing workflow:
1. Identification Review
- Confirm Emerson Ovation label.
- Verify exact part number: 5X00226G02.
- Check module housing and connectors.
2. Physical Inspection
- Inspect backplane connector pins.
- Check module locking mechanism.
- Look for contamination, corrosion, or impact damage.
3. Electrical Verification
- Confirm supply voltage operation.
- Check indicator LED behavior.
- Verify internal communication circuitry.
4. System Testing
- Install into compatible Ovation rack environment.
- Verify controller communication.
- Confirm I/O data exchange.
- Check diagnostic status.
5. Documentation
- Record serial number.
- Save test results.
- Assign inventory status:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Confusing 5X00226G02 With Similar Ovation I/O Modules
Ovation has many interface and I/O modules with similar physical appearances.
PRO TIP: Always confirm:
- Complete part number
- Hardware revision
- OCR 400 compatibility
- Existing rack configuration
A visually identical module may not support the same system function.
⚠️ Trap #2: Replacing Hardware Without Checking Configuration Data
The module itself may install correctly but still fail communication if the Ovation database configuration does not match.
Verify:
- I/O addressing
- Controller configuration
- Rack location
- Firmware requirements
⚠️ Trap #3: Skipping Backplane Inspection
Repeated module failures are sometimes caused by rack-side issues.
Check:
- Backplane contacts
- Rack power quality
- Adjacent module condition
- Environmental contamination
Replacing the card without checking the installation environment can result in repeat failures.
Dynamic FAQ
Q1. What is the Emerson Ovation 5X00226G02 used for?
The Emerson Ovation 5X00226G02 is an I/O Interface Module used within Ovation DCS architectures to provide communication between control hardware and I/O subsystems.
Q2. Is the 5X00226G02 an analog or digital I/O channel module?
The 5X00226G02 is an interface module rather than a standard standalone analog or digital input/output card. It manages communication between Ovation control components and I/O hardware.
Q3. Where is the 5X00226G02 installed?
It is installed in an Emerson Ovation rack-based control system, typically associated with OCR 400 I/O architecture.
Q4. What should buyers verify before purchasing a New Surplus 5X00226G02?
Recommended checks:
- Exact Emerson Ovation part number
- Module revision
- Rack compatibility
- Connector condition
- Communication test records
- Warranty coverage
Q5. Can a refurbished 5X00226G02 be used in a running Ovation DCS?
Yes, provided it has passed functional testing and matches the installed Ovation hardware configuration. Tested interface modules are commonly maintained as replacement inventory for legacy DCS systems.
Q6. Why is the 5X00226G02 considered a critical spare?
Because the module sits between control processing hardware and field I/O communication paths. A failure can interrupt multiple signals, increasing troubleshooting time and potentially affecting plant operation.
