Emerson Ovation 5X00241G02 OCR1100 Controller Processor Module

Description

Product Introduction

The Emerson 5X00241G02 is a high-performance controller processor module engineered for the Westinghouse / Emerson Ovation Distributed Control System (DCS), primarily deployed within the OCR1100 controller family. Serving as the central brain in thermal power stations, nuclear facilities, combined-cycle power blocks, and large industrial utilities, this module executes complex IEC 61131-3 compliant control logic, PID loops, and sequential function charts in real time.

Operating in single or dual-redundant configurations, the 5X00241G02 maintains continuous synchronization with its partner processor to provide seamless, “bumpless” automatic failover without interrupting active plant operations. In our field experience, replacing a degraded processor with an exact 5X00241G02 module preserves system point databases and network node addresses, allowing you to reload the application image directly from the Ovation Engineer Station (EWS) and restore full control loop execution.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A major utility power plant experienced an unexpected failover alarm when its Primary Controller A logged internal memory parity errors and transferred execution to Backup Controller B. Diagnostics indicated that the onboard memory controller on Controller A’s main 5X00241G02 processor card was failing due to age and thermal cycle degradation. While Controller B maintained process stability, running without redundancy left the power block vulnerable to a single-point trip.

• Power Generation Facilities – Main Boiler & Turbine Control – Executes multi-variable control loops, burner management routines, and steam bypass interlocks.
• Water & Wastewater Treatment – Large-Scale SCADA Coordination – Processes thousands of field points across distributed pumping and filtration nodes.
• Industrial Cogeneration – Real-Time Energy Management – Regulates power production setpoints and steam distribution networks.

The plant automation engineer hot-swapped the faulty 5X00241G02 module on the standby Controller A chassis with a bench-tested surplus unit. The new processor booted into network initialization mode, received its database download from the Ovation Developer Studio, synchronized tracking data with active Controller B, and re-established dual-redundant protection in under 20 minutes without disrupting turbine output.

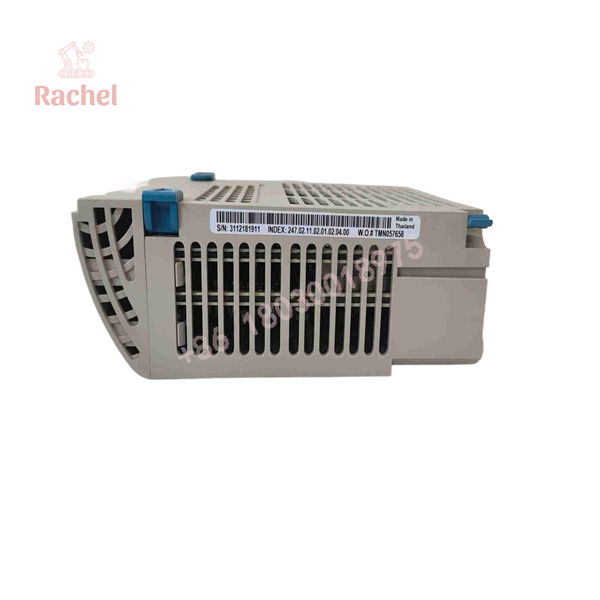

5X00241G02

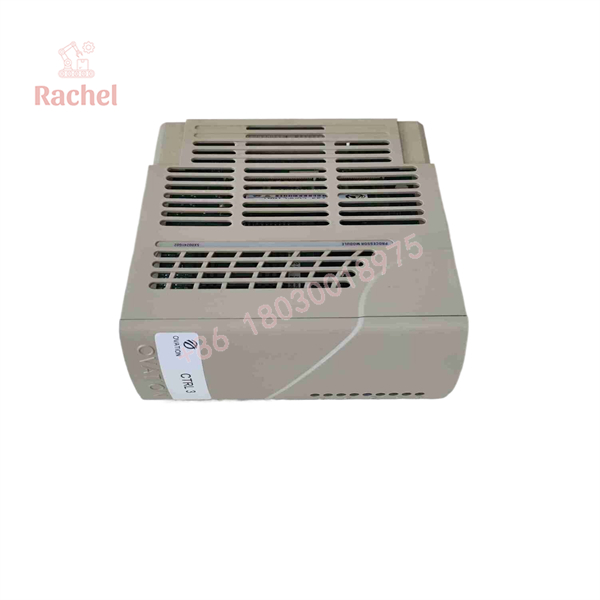

5X00241G02

Transparency SOP: Quality Assurance & Testing

We do not just ship processor cards; we load and test them on live Emerson Ovation controller test racks. Every 5X00241G02 processor module undergoes the following verification process:

1. Inbound Visual & Pin Inspection: Checking all rear backplane multi-pin connectors, edge guides, and heat sink attachments for mechanical damage or thermal stress.
2. Power-On Self-Test (POST) & Memory Diagnostics: Booting the module to verify CPU POST routines, onboard RAM, and Flash memory integrity.
3. Full Database Load & Application Stress Test: Downloading a dense Ovation application project to verify point database initialization, logic execution speed, and Ethernet communication throughput.
4. Bumpless Redundancy Failover Verification: Coupling the module with a second test processor to confirm high-speed state tracking and seamless master-to-partner failover transitions.
5. ESD Protective Packaging: Sealing the module inside anti-static ESD shielding bags and packing it in custom high-density foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Firmware & Software Compatibility: Prior to installing the replacement 5X00241G02, confirm that its internal boot code / firmware release matches the software version running on your Ovation Developer Studio system (and partner controller). Firmware mismatches can prevent automatic database download or cause redundancy synchronization to fail.
• ❗ Never Pull Both Processors Simultaneously: If working on a dual-redundant pair, verify that the partner unit is fully healthy, online, and locked in “Primary” mode before extracting the faulty 5X00241G02 processor module. Pulling the active primary controller will result in an immediate plant trip.
• ⚠️ Check Backplane Slot Guide Alignment: Ensure the card’s tracking levers line up correctly before pushing the module into the controller chassis. Forcing the card with misaligned guide rails will bend high-density backplane pins.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I replace the 5X00241G02 while the Ovation controller rack is powered?

A: Yes, provided the controller is configured as a dual-redundant pair and the standby/failed processor is the one being replaced. Always verify that the remaining controller is actively managing the process before swapping.

Q: Does the 5X00241G02 hold application software in non-volatile memory?

A: Yes. The module features onboard non-volatile storage for application code, point databases, and operating tuning constants, allowing it to recover software state after a power cycle.

Q: What do the front-panel status LEDs indicate?

A: Front-panel LEDs display key operational status, including Power/Health (Green), Active Master state (Green), Standby/Partner tracking state (Amber), and System Fault/Error status (Red).

Q: Is this processor compatible with older WDPF I/O systems?

A: Yes. The Ovation OCR1100 architecture and 5X00241G02 processor module support interfaces to both standard Ovation I/O and legacy WDPF I/O architectures.

Q: What warranty comes with this surplus Ovation processor module?

A: Every new surplus and rig-tested 5X00241G02 module is backed by our full 12-month replacement warranty.
