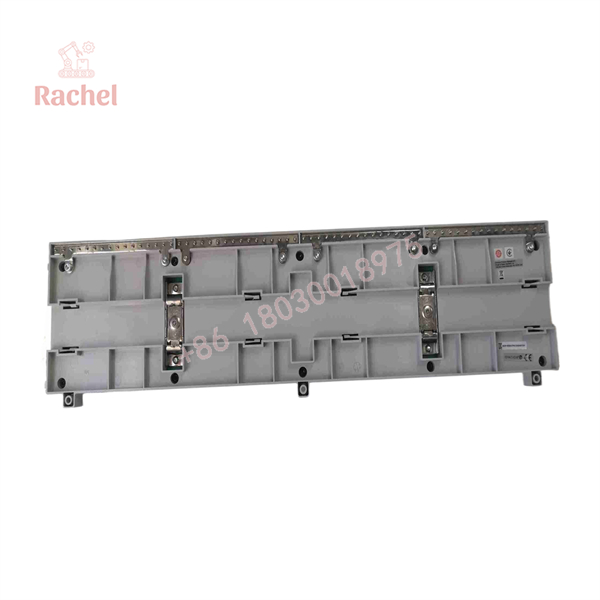

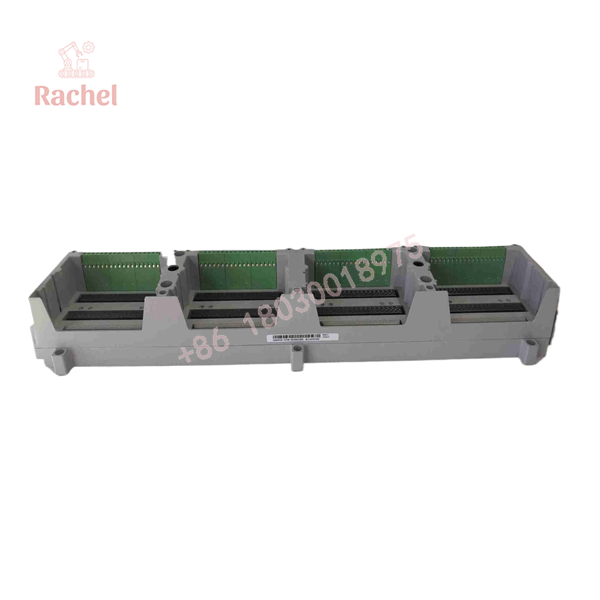

The Emerson 5X00497G01 is a 4-slot I/O base unit (terminal substrate) engineered for the Westinghouse / Emerson Ovation Distributed Control System (DCS). Operating as a foundational backbone hardware component inside control cabinets, this base provides structural mounting, internal power distribution, and backplane communication paths for Ovation electronic I/O modules.
It is purpose-built to support high-density I/O deployments—most notably providing the extended wiring termination pathways required by 32-channel digital output modules (such as the 5X00500G01). In our field experience, replacing a cracked or corroded base unit with an exact 5X00497G01 module maintains solid backplane tracking and prevents intermittent communication drops on adjacent electronic modules caused by physical socket wear or bus connector oxidation.
Key Technical Specifications
| Parameter | Value |
| Part Number | 5X00497G01 |
| Manufacturer | Emerson Process Management (Westinghouse) |
| System Architecture | Ovation DCS I/O Substructure |
| Module Capacity | Supports up to 4 Ovation I/O Electronic Modules / Personality Modules |
| Field Power Input | 24 VDC Auxiliary Field Power |
| Backplane Interfacing | Integrated Power Rails & High-Speed Logic Bus |
| Galvanic Isolation | \pm1000 VDC Field-to-Logic Isolation Support |
| Mounting Standard | Standard Industrial DIN-Rail / Cabinet Sub-panel Mounting |
| Primary Compatibility | Ovation 32-Channel Digital Output/Input Modules (e.g., 5X00500G01) & Standard Ovation Cards |
Application Scenarios & The “Trench” Experience
A thermal power plant cabinet retrofit project ran into intermittent module fault alarms on a rack containing high-density digital outputs for valve solenoids. Vibration from nearby turbine auxiliaries had caused pin wear and hairline PCB cracks inside an older terminal base, leading to intermittent 24VDC power interruption across two adjacent output cards.
- Power Generation Utilities – Turbine & Auxiliary Cabinet Wiring – Hosts high-density digital and analog I/O modules controlling motor starters, solenoids, and permissive relays.
- Petrochemical Refineries – Remote I/O Enclosures – Connects remote field wiring blocks directly to central controller backplane lines across harsh environments.
- Water Treatment Infrastructure – High-Density Valve Islands – Provides structured terminal termination paths for multi-channel discrete control loops.
The maintenance team unclipped the damaged substrate and installed a bench-tested 5X00497G01 base unit. The replacement base firmly latched into the DIN rail, aligned cleanly with the backplane expansion cables, and provided solid electrical contact for all 4 electronic modules without requiring any field re-wiring or software reconfiguration.
5X00497G01
5X00497G01
Transparency SOP: Quality Assurance & Testing
We do not just ship hardware; we test every substrate on live Emerson Ovation controller test racks. Every 5X00497G01 I/O base unit undergoes the following verification process:
- Inbound Mechanical & Socket Inspection: Checking all 4 module slot housings, DIN-rail latch mechanisms, and multi-pin connector sockets for bent contacts or thermal degradation.
- Dielectric & Continuity Verification: Testing pin-to-pin continuity and checking 1000 VDC isolation across field supply terminals and backplane logic paths.
- 4-Slot Live Load Test: Seating four functional Ovation I/O modules onto the 5X00497G01 base on an active test rack to verify simultaneous power delivery and backplane signal communication.
- Hot-Swap Stress Testing: Inserting and removing electronic modules into all 4 slot positions while powered to ensure socket guide alignment and chatter-free hot-swap performance.
- ESD & Protective Packaging: Cleaning connector contacts and sealing the base unit inside heavy-duty anti-static bags with custom foam packing.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Backplane Expansion Cable seating: When linking multiple 5X00497G01 bases together using Ovation ribbon cables or rigid bus connectors, ensure the connectors snap fully into their locking detents. Loose backplane expansion cables are a leading cause of intermittent “Base Communication Error” alarms on downstream slots.
- ❗ Double-Check Field Terminal Pinouts for 32-Channel Cards: Because the 5X00497G01 base provides extended termination density, always verify field wiring numbers against the Ovation cabinet drawing before energizing 24VDC field loops. Shorting a 24VDC line to a logic terminal on high-density bases will damage plugged-in electronic cards.
- ⚠️ Ensure Uniform DIN-Rail Support: Secure the base unit on both ends with rigid DIN-rail stop brackets. Allowing the base to flex when inserting or removing heavy electronic modules can overstress backplane socket solder joints.
Frequently Asked Questions (FAQ for Conversion)
Q: Does the 5X00497G01 base unit require any firmware updates?
A: No. The 5X00497G01 is a passive/structural terminal substrate and backplane unit. It contains no software or flash firmware and works immediately upon physical installation.
Q: Can I hot-swap electronic I/O modules plugged into this base?
A: Yes. The 5X00497G01 base is mechanically and electrically designed to support online hot-swapping of Ovation I/O modules while power is applied to the rack.
Q: How many electronic I/O modules does a single 5X00497G01 hold?
A: A single 5X00497G01 base unit holds up to four (4) Ovation electronic I/O modules along with their corresponding personality modules/terminal blocks.
Q: What LEDs are located directly on the 5X00497G01 base unit?
A: The base unit includes visual power/status indicator LEDs that show active 24VDC field power delivery and backplane bus connectivity.
Q: What warranty comes with this surplus Ovation base module?
A: Every new surplus and rig-tested 5X00497G01 base unit is backed by our full 12-month replacement warranty.
