Description
Product Introduction & Engineering Value
The Emerson Ovation 5X00501G01 is a 16-channel analog input electronics module designed for Ovation DCS installations requiring accurate acquisition of 4–20 mA field signals. It works as the active electronics portion of an Ovation analog input assembly, collecting transmitter data for control, alarming, and operator displays.
In operating plants, analog input failures are rarely limited to one instrument. A single failed module can remove several important process measurements simultaneously. Maintaining a tested 5X00501G01 spare allows maintenance teams to restore signal availability quickly while avoiding unnecessary transmitter replacement.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson |
| Platform | Ovation DCS |
| Part Number | 5X00501G01 |
| Module Type | 16 Channel Analog Input Electronics Module |
| Module Role | EMOD |
| Input Channels | 16 |
| Input Signal Type | 4–20 mA DC |
| Supported Wiring | 2-wire and 4-wire transmitter configurations (system dependent) |
| Compatible PMOD | 5X00502G01 / applicable Ovation termination module |
| Resolution | 12-bit typical |
| Input Range | Current measurement input |
| Installation | Ovation I/O rack |
| Power Source | Supplied through Ovation rack/backplane |
| Typical Power Consumption | Approx. 9.4 W |
| Application Environment | Power generation and industrial process control |
Field Application & The “Trench” Experience
A coal-fired power plant experienced intermittent loss of several boiler feedwater monitoring signals. Operators noticed that pressure and flow displays occasionally froze while the field transmitters continued operating normally.
The first assumption was transmitter failure. Instrument technicians checked calibration, loop resistance, and field wiring. All field devices passed inspection.
The troubleshooting team moved upstream and identified the Ovation analog input rack as the source of the problem. A tested 5X00501G01 replacement was installed with the existing termination hardware. After channel verification and loop simulation, all affected process values returned to normal operation.
The practical lesson: a DCS analog input module sits between dozens of field instruments and the control strategy. A single hardware fault can create multiple unrelated-looking alarms.
Typical application scenarios:
- Boiler drum pressure and level transmitter monitoring
- Turbine auxiliary pressure and temperature signal acquisition
- Feedwater and cooling water flow measurement
- Chemical dosing skid instrumentation

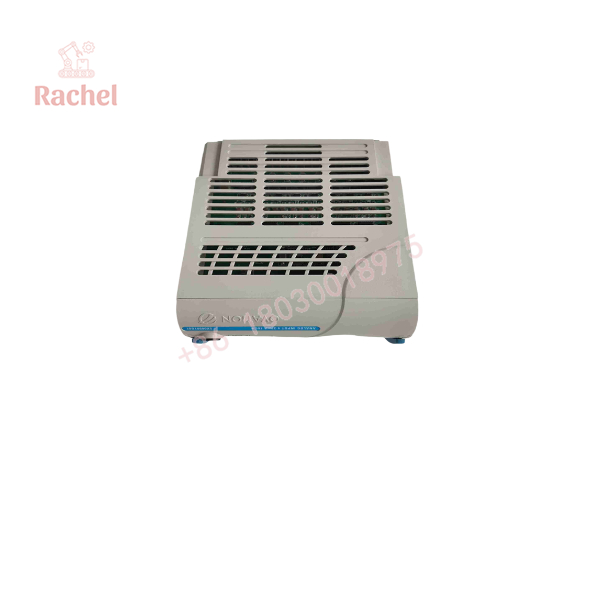

5X00501G01

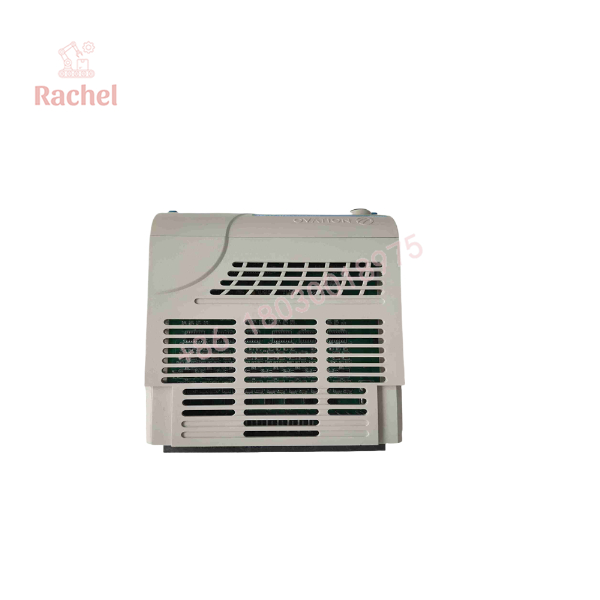

5X00501G01
Transparency SOP: QA & Testing
Analog input modules require signal simulation testing before entering critical spare inventory.
Qualification procedure:
1. Identification Check
- Verify Emerson Ovation marking.
- Confirm exact model: 5X00501G01.
- Check revision label and connector condition.
2. Visual Inspection
- Inspect PCB condition.
- Check terminal interface contacts.
- Look for corrosion, contamination, or mechanical damage.
3. Electrical Verification
- Power module in compatible Ovation test environment.
- Verify status indicators.
- Check internal diagnostics.
4. Signal Simulation
- Apply calibrated 4–20 mA input signals.
- Test multiple channels.
- Confirm measurement accuracy and stability.
5. Documentation
- Record serial number.
- Save test results.
- Assign stock condition:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Confusing the EMOD With the Complete I/O Assembly
The 5X00501G01 is the active electronics module.
The complete Ovation analog input channel assembly may also require:
- Compatible personality module
- Termination assembly
- Correct cabinet wiring configuration
Replacing only the EMOD without confirming the companion hardware can create unnecessary troubleshooting.
⚠️ Trap #2: Assuming All Analog Input Modules Accept the Same Signals
Not every Ovation AI module is interchangeable.
Verify:
- 4–20 mA requirement
- Channel count
- Two-wire vs four-wire transmitter configuration
- Engineering database settings
PRO TIP: Always compare the failed module label with the installed configuration database before ordering.
⚠️ Trap #3: Ignoring Field Loop Problems
A replacement input card may appear faulty when the actual problem is outside the cabinet.
Check:
- Transmitter power supply
- Shield grounding
- Loop resistance
- Junction box terminals
A good AI module cannot compensate for unstable field wiring.
Dynamic FAQ
Q1. What is the Emerson Ovation 5X00501G01 used for?
The 5X00501G01 is a 16-channel analog input electronics module for Emerson Ovation DCS systems. It receives process transmitter signals such as 4–20 mA inputs for monitoring and control applications.
Q2. How many channels does the 5X00501G01 support?
The module supports 16 analog input channels.
Q3. Is the 5X00501G01 a complete analog input module assembly?
No. It is the electronics module portion of the Ovation analog input assembly. The compatible termination/personality hardware must also match the installed system configuration.
Q4. What type of field instruments connect to the 5X00501G01?
Typical devices include:
- Pressure transmitters
- Flow transmitters
- Level transmitters
- Process monitoring instruments
The module is commonly used for 4–20 mA signal acquisition in Ovation process control applications.
Q5. What should buyers verify before purchasing a New Surplus 5X00501G01?
Recommended checks:
- Exact Ovation part number
- Hardware revision
- EMOD/PMOD compatibility
- Channel test records
- Connector condition
- Warranty coverage
Q6. Is refurbished 5X00501G01 suitable for critical DCS spare inventory?
Yes, provided it has passed analog signal simulation, diagnostic checks, and Ovation rack compatibility testing. For legacy Ovation installations, tested spare AI modules are valuable assets because they reduce restoration time during process measurement failures.
