FANUC A05B-2255-C102#ESW iPendant Teach Pendant

Product Introduction & Engineering Value

A damaged teach pendant can stop an entire robot cell even when the robot controller, servo amplifiers, and mechanical system remain fully operational. The FANUC A05B-2255-C102#ESW provides the operator interface required for robot programming, jogging, alarm diagnosis, and production adjustments in FANUC spot welding applications.

This pendant is designed around FANUC R-30iB controller architecture and must be matched with the correct controller generation, software configuration, safety circuit, and application option set. The suffix matters — a spot welding pendant is not automatically interchangeable with arc welding or material handling versions.

Technical Specifications

Field Application & The “Trench” Experience

An automotive body welding line experiences an unexpected production stop when the robot operator pendant begins showing intermittent communication faults. The robot arm, servo system, and welding equipment pass initial checks, but operators cannot safely access the programming interface.

The maintenance team first inspects the pendant cable, connector pins, and controller port. After confirming the pendant itself has failed, they replace it with a tested FANUC A05B-2255-C102#ESW unit.

Before returning the robot cell to production, technicians verify:

• Controller recognition
• Emergency stop circuit operation
• Deadman switch response
• Robot jogging functions
• Existing program access

The field lesson: a teach pendant is both an operator interface and part of the robot safety chain. Treating it as a simple handheld display can create unnecessary troubleshooting delays.

Specific application scenarios

• Automotive spot welding cells — programming and maintaining FANUC welding robots.
• Body-in-white production lines — supporting robot teaching and production changeovers.
• Industrial robotic welding stations — replacing damaged operator pendants without changing controller hardware.

A05B-2255-C102#ESW

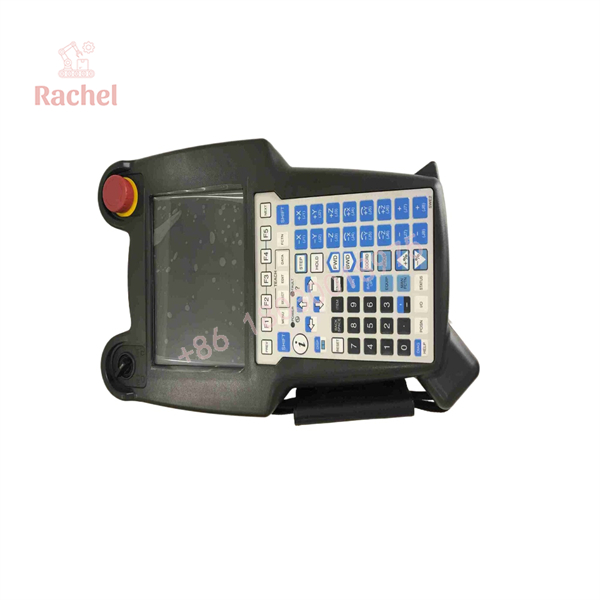

A05B-2255-C102#ESW

Transparency SOP: QA & Testing

For New Surplus or Refurbished A05B-2255-C102#ESW units, testing should focus on both operator functions and safety-related controls.

Inspection procedure:

1. Physical Condition Review

• Confirm FANUC label and part number.
• Check enclosure condition.
• Inspect keypad wear.
• Examine cable and connector condition.

2. Display & Interface Testing

• Verify screen startup.
• Check brightness and character display.
• Test all function keys.

3. Safety Circuit Testing

• Test emergency stop button.
• Verify deadman switch positions.
• Confirm controller alarm response.

4. Communication Verification

• Connect to compatible FANUC R-30iB controller.
• Confirm pendant initialization.
• Check programming and jog functions.

5. Final Documentation

• Record serial number.
• Photograph actual unit.
• Package with protective materials.

Teach pendants are commonly exposed to drops, cable stress, weld contamination, and shop-floor handling damage, making physical inspection an important part of replacement preparation.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Ignoring the suffix after the part number

FANUC pendant compatibility depends heavily on the suffix.

Examples:

• #ESW → English Spot Welding
• Other suffixes may indicate different applications such as arc welding or material handling.

Do not order only by the base number A05B-2255-C102.

⚠️ Trap #2 — Assuming the pendant is the failure point

A blank screen or communication error may also come from:

• Damaged pendant cable
• Controller pendant port failure
• Loose connector pins
• Power supply issues inside the controller

PRO TIP: Test with a known-good pendant before replacing expensive controller hardware.

⚠️ Trap #3 — Forgetting safety verification

The emergency stop and deadman switch are not optional accessories. After replacement, verify the complete safety circuit before enabling robot operation.

Dynamic FAQ

Q1: What is FANUC A05B-2255-C102#ESW?

The FANUC #ESW is an iPendant teach pendant designed for FANUC R-30iB robot controllers, specifically configured for English spot welding applications.

Q2: What does the #ESW suffix mean?

The #ESW suffix identifies the pendant configuration for English Spot Welding applications. Different suffixes may represent other robot application packages or language configurations.

Q3: Which FANUC controllers use this pendant?

This pendant is associated with FANUC R-30iB controller systems. Compatibility depends on controller software, hardware revision, cable connection, and application configuration.

Q4: Can A05B-2255-C102#ESW replace another FANUC iPendant?

Not automatically. Verify:

• Controller series
• Software version
• Application option
• Connector configuration
• Safety circuit compatibility

Q5: What should I check before purchasing a New Surplus unit?

Confirm:

• Exact part number: #ESW
• Actual product photos
• Display condition
• Cable condition
• Emergency stop function
• Testing records

Q6: Is New Surplus the same as refurbished?

No. New Surplus generally refers to unused inventory from previous stock channels. Refurbished units may have been repaired, cleaned, and function-tested before resale.

Q7: Does this pendant include warranty coverage?

Warranty depends on supplier and stock condition. Industrial automation suppliers may provide different warranty periods for New Surplus, refurbished, and tested used FANUC pendants. Confirm coverage before purchase.
