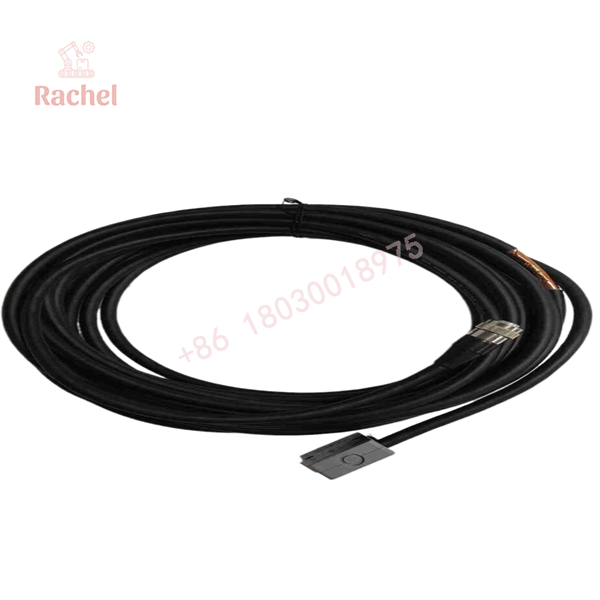

FANUC A660-2006-T324L Robot Signal Cable Assembly

Description

Product Introduction

The FANUC A660-2006-T324L is an enterprise-grade industrial cable harness designed for high-reliability signal transmission in FANUC robotic cells. Built to withstand continuous flexing, high torsional stress, and harsh manufacturing environments, this cable maintains critical communication between the robot controller (such as R-30iA or R-30iB systems) and peripheral units, encoders, or teach pendants without signal degradation.

Unlike standard commercial cabling, the A660-2006-T324L utilizes heavy-gauge shielding and rugged industrial-grade connectors to eliminate electromagnetic interference (EMI) generated by surrounding servo drives, welding transformers, and high-voltage gear. Its continuous-flex outer jacket prevents oil, coolant, and mechanical abrasion from compromising internal wire pairs during aggressive robot motion cycles.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 1:30 AM on a Tuesday during peak production in an automotive stamping shop. A 6-axis welding robot triggers an intermittent “SRVO-062 BZAL” pulse coder disconnect alarm on Axis 3. Every time the arm extends to clamp a door panel, the cycle trips out, killing the line. A cracked internal trace inside a flexed signal cable is bleeding the pulse coder’s battery backup voltage to ground. Swapping out the chafed harness with a tested FANUC A660-2006-T324L cable assembly restores full encoder communication and gets the stamping cell back online in under 30 minutes.

Primary Field Applications:

• Automated Spot & Arc Welding Cells: Resists weld spatter, high electromagnetic noise, and constant arm articulation.
• Material Handling & Palletizing: High-flex resistance inside cable carriers (drag chains) during fast, repetitive pick-and-place cycles.
• CNC Machine Tend & Load/Unload: High tolerance against cutting fluids, synthetic coolants, and sharp metal shavings.
• Teach Pendant & Operator Station Interfacing: Flexible, ruggedized drop line between control cabinets and mobile operator consoles.

Transparency SOP: Quality Assurance & Testing

Cable harnesses are the lifeblood of a robotic system, so we don’t take shortcuts. Every FANUC A660-2006-T324L cable undergoes a comprehensive 5-step hardware testing process before shipment:

1. Inbound Visual & Mechanical Inspection: Inspection of connector pins, backshells, locking collars, strain reliefs, and outer jacket integrity.
2. Point-to-Point Continuity & Resistance Checks: Automated cable analyzer testing to verify 100% pinout alignment and low conductor resistance.
3. High-Voltage Insulation & Hi-Pot Testing: Checking dielectric strength and cross-pin insulation breakdown to detect pinhole shorts or degraded insulation.
4. Dynamic Flex Simulation Test: Subjecting the cable assembly to controlled bending cycles while monitoring real-time signal continuity.
5. Final QC & Anti-Static Sealed Packaging: Contact cleaning with electrical contact restorer, connector pin protection, and heavy-duty sealed ESD/cushioned packaging.

A660-2006-T324L

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Mind the Suffix Code “T324L”: FANUC part numbers are notoriously specific. The base part number A660-2006 designates the cable family, but the trailing suffix - specifies exact length, wiring configuration, and connector pinouts. Installing a -T324 or -T325 variant in place of a - can result in mismatched pin counts or improper cable reach!
• ❗ Never Pull Cables by the Harness Jacket: When routing the cable through energy chains or tight cabinet access ports, pull on the connector body or dedicated pull-grips. Yanking on the outer jacket will strain internal crimp contacts, causing hard-to-find intermittent disconnect faults down the road.
• ⚠️ Watch Out for Encoder Battery Loss: If replacing a signal cable tied to pulse coders, be prepared to perform a Zero-Point Mastering routine if absolute encoder power drops during the cable swap. Keep a fresh set of FANUC controller batteries on hand.
• ❗ Inspect O-Rings on Circular Connectors: Before mating circular IP67 connectors to the robot junction box or drive chassis, make sure the rubber sealing ring inside the connector hood is present and undamaged. Missing seals invite coolant ingress, which short-circuits low-voltage encoder signals.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the FANUC A660-2006-T324L cable suitable for continuous flex applications in drag chains?

A: Yes. This harness is constructed using fine-stranded copper conductors and a flexible jacket specifically designed to handle high flexural cycles inside robotic energy chains and flexing arm channels.

Q: Can I repair a damaged connector on my old A660-2006-T324L cable?

A: While pin repinning is technically possible, in high-vibration robotic environments, field-soldered or field-crimped pins often fail prematurely. Installing a factory-molded cable assembly is significantly safer and eliminates high-downtime risk.

Q: What is the lead time and condition of this product?

A: We stock both New Surplus (Factory Sealed) and fully tested, refurbished OEM original units available for immediate, same-day shipment to minimize cell downtime.

Q: What warranty comes with this cable harness?

A: All FANUC A660-2006-T324L cables supplied from our inventory carry a full 12-month replacement warranty. If a defect or signal failure occurs under standard operating conditions within one year, we ship a replacement directly.

Q: How do I verify this cable matches my specific robot model?

A: Check the print on the outer jacket of your existing cable or match the part number label near the connector backshell. If you aren’t sure, cross-reference your robot cabinet’s maintenance manual or contact our technical team with your cabinet serial number.
