GE Fanuc IC200MDL241 VersaMax 24VDC Input Module

Description

Product Introduction

The GE Fanuc IC200MDL241 is a VersaMax discrete input module used to bring field signals into a PLC. It is meant for 24VDC input devices such as pushbuttons, limit switches, relays, and sensor contacts. In a lot of old racks, this is the card that quietly does the boring work until it fails. Then everything gets noisy.

Its value is simple: compact I/O density, legacy compatibility, and straightforward wiring. For plants that still run VersaMax hardware, replacing one failed input card is often cheaper and faster than reworking the whole panel.

Key Technical Specifications

Application Scenarios & the “Trench” Experience

A line goes down because a single input never changes state. Maintenance starts chasing the sensor, but the real problem is often the I/O card sitting in the rack. That is standard trench work in an old plant.

• Manufacturing – Pushbutton and switch status reading – Needed because the PLC must detect discrete operator and machine signals.
• Packaging – Limit switch monitoring – Needed when multiple 24VDC devices feed a compact VersaMax rack.
• Process plants – Alarm and interlock inputs – Needed for reliable status acquisition in legacy control systems.
• Utilities – Remote panel inputs – Needed when small local I/O drops must report back to the controller.
• Retrofit work – VersaMax replacement – Needed when the original GE Fanuc input card has aged out.

A realistic replacement case: a production cell lost one input card and the fault light on a gate switch stopped updating. Operators could not reset the sequence, and the line sat idle while the team checked wiring that was never the problem. A tested IC200MDL241 replacement restored the input map, and the machine came back without a larger control retrofit. That is the difference between a spare part and a lost shift.

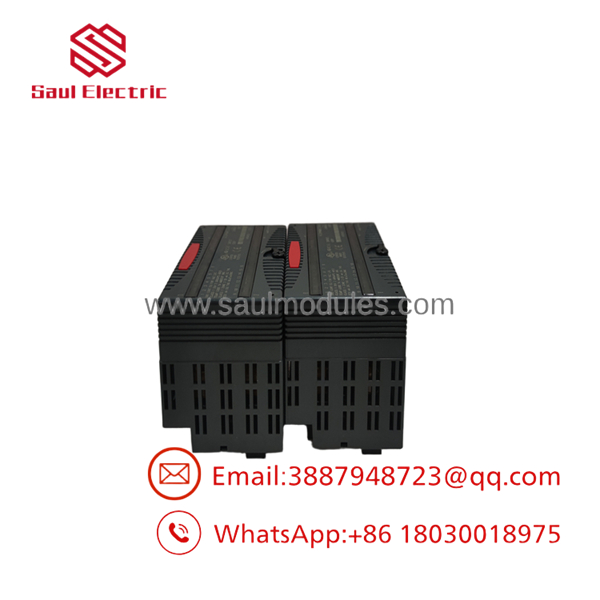

IC200MDL241

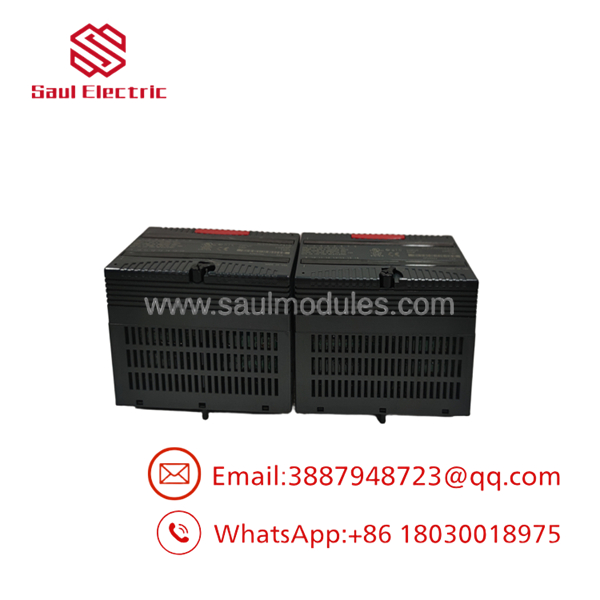

IC200MDL241

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GE Fanuc racks.

• Inbound Inspection: Verify part number, terminal condition, board condition, and any sign of heat damage or corrosion.
• Live Rig Testing: Power the module in a matching VersaMax base and confirm input response and status indicators.
• Electrical Parameter Checks: Check current draw, input threshold behavior, and stable operation under load.
• Firmware Verification: Record the revision or hardware version where available and compare it to compatibility expectations.
• Final QC & Anti-static Packaging: Release only after the module passes test, then pack it in ESD-safe material.

The Veteran’s Tech Trap Guide

• ⚠️ Don’t assume every 24V input card is identical. The logic type and channel behavior still matter.
• ❗ Verify the wire landing order before swap-out. Old labels lie more often than people admit.
• ⚠️ Check for field power and backplane power separately. A card can look dead when the real issue is upstream.
• ❗ Handle it like a live board. ESD damage on legacy I/O is a very real way to waste a good spare.

Frequently Asked Questions

Q: Is the IC200MDL241 hot-swappable?
A: No. Treat it as a powered-down replacement unless your exact rack documentation explicitly allows live insertion.

Q: What does this module do?
A: It reads 16 discrete 24VDC inputs into a VersaMax PLC system.

Q: What kind of field devices can it read?
A: Pushbuttons, limit switches, relay contacts, and other 24VDC discrete signals.

Q: Why is this cheaper than direct OEM stock?
A: Because it usually comes from surplus or secondary-market inventory, not a fresh OEM production run. Lower price only makes sense if the part is actually tested.

Q: Is it fake or refurbished?
A: You should not assume either way. The honest answer is to verify labels, revision, condition, and rack test results.

Q: What warranty is reasonable?
A: Twelve months is common for tested industrial surplus, but the test log and traceability are more important than the marketing line.
