3. Product Introduction & Engineering Value
Spindle orientation failures and intermittent position alarms on Alpha i systems often trace back to a worn or contaminated external coder. The A860-2109-T302 solves that exact headache. It delivers clean 1,024-pulse differential signals plus a once-per-rev marker so the CNC can confirm actual spindle angle independent of the motor’s internal feedback.
This unit mounts via the standard 68 mm square flange and mates with the 17-pin MS-style connector used on later Alpha i spindle motors. When the original coder starts throwing phase errors or loses the Z-pulse at speed, swapping to a verified A860-2109-T302 restores orientation accuracy without rewriting ladder logic or changing drive parameters.
4. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum speed | 10,000 min⁻¹ |
| Flange size | 68 mm square |
| Output pulses (A/B channels) | 1,024 pulses/revolution |
| Index pulse (Z channel) | 1 pulse/revolution |
| Supply voltage | 5 V ±5% |
| Current consumption | ≤ 350 mA |
| Connector | 17-pin MS3102A-20-29P (or equivalent) |
| Operating temperature | 0 °C to +50 °C |
| Protection | IP55 equivalent (with mated waterproof connector) |
| Weight | Approx. 0.75 kg |
| Shaft | Straight with key |
| Allowable radial/thrust load | 98 N / 49 N (operating) |
5. Field Application & The “Trench” Experience
Last winter a job shop running a Fanuc-controlled vertical machining center lost spindle orientation during a tool-change cycle on a titanium aerospace bracket. The alarm pointed to the external position coder. The original A860-2109-T302 had taken coolant spray for years; the Z-pulse amplitude had dropped below the drive’s threshold. We pulled the unit, cleaned the mating face, and installed a tested replacement. Orientation recovered on the first power-up and the machine held ±0.1° accuracy through the rest of the run.
Typical niche uses include: high-speed spindle orientation on Alpha i motors in precision turning centers that require rigid tapping; independent position verification on multi-spindle transfer machines where motor-mounted encoders alone are insufficient; and retrofit feedback on older Alpha series spindles upgraded to later control software that demands the αi pulse format.
6. Transparency SOP: QA & Testing
- Visual and dimensional inspection confirms flange dimensions, shaft key, and connector pin integrity match FANUC drawings.
- Electrical bench test applies 5 V and verifies A/B differential amplitude, phase quadrature, and clean Z-pulse at multiple speeds up to rated RPM.
- Mechanical spin test checks bearing noise, start torque, and runout under light radial load.
- Final functional check on a reference Alpha i spindle drive confirms the control accepts the signals without alarm and achieves correct orientation.
- Units that pass are sealed, labeled, and logged with test data for traceability.

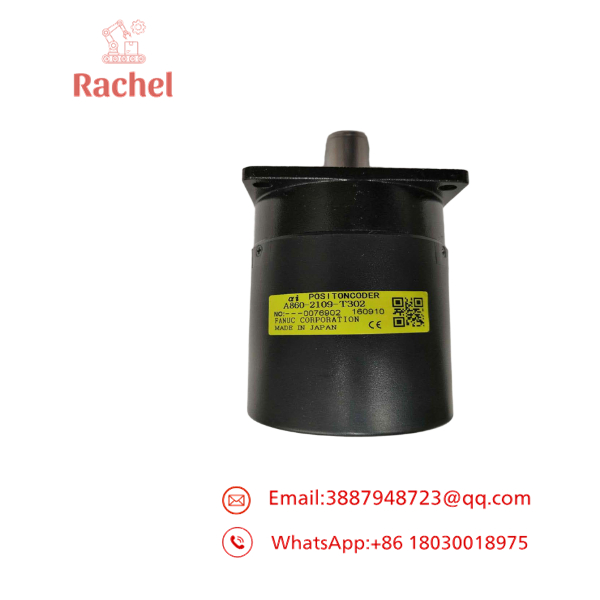

A860-2109-T302

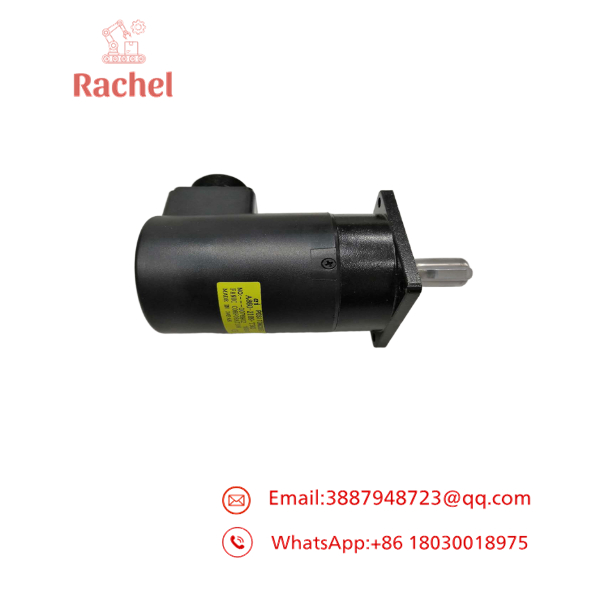

A860-2109-T302
7. The Veteran’s Tech Trap Guide
⚠️ Connector orientation and pinout – The 17-pin MS connector looks identical to several other FANUC sensors. Installing it 180° out or forcing a wrong keyway will bend pins and kill the coder instantly. Always verify the keyway alignment before seating.
PRO TIP: Coolant and chip intrusion is the silent killer. Even with the IP55 rating, a damaged O-ring or poorly sealed cable gland lets mist inside. Inspect the shaft seal and connector gasket on every swap; replace them if they show any hardening or cuts.
⚠️ Signal cable length and shielding – Running a longer or unshielded cable than the original can drop pulse amplitude below the drive threshold at high RPM. Stick to the factory cable length and route or you’ll chase intermittent phase errors that only appear above 6,000 RPM.
8. Dynamic FAQ
Q: Is the A860-2109-T302 compatible with all Alpha i spindle motors? A: It is designed for later Alpha i spindle motors that use the external 68 mm flange position coder. Confirm the motor’s feedback requirements against the FANUC spindle manual before ordering.
Q: What is the difference between this unit and the older A860-0309 series coders? A: The A860-2109-T302 is the αi version with the updated pulse format and connector used by current Alpha i drives. The older α series units are not drop-in equivalents.
Q: Do you supply New Surplus or Refurbished stock, and how is authenticity verified? A: Both conditions are available. Every unit is tested on a reference Alpha i drive; New Surplus units remain in original or equivalent protective packaging with traceable test records.
Q: What warranty is provided? A: Standard coverage is 12 months against defects in materials and workmanship when installed and operated within FANUC specifications.
Q: Can the pulse count or maximum speed be changed? A: No. The 1,024-pulse and 10,000 RPM ratings are fixed by the optical disc and mechanical design. Substituting a different resolution unit will cause position errors or alarms.
Q: What common alarm codes point to a failing A860-2109-T302? A: Spindle orientation failure, phase-A/B error, or Z-pulse missing alarms that clear temporarily after power cycle but return at speed are classic indicators.
