Description
Core Product Summary
The Galil Motion Control DMC-4143 is a compact, high-performance 4-axis motion controller from Galil’s Econo series. Designed for OEM machine control, positioning stages, and general multi-axis industrial automation, it provides precise coordination for stepper or servo motors across four independent or synchronized axes.
Featuring built-in 10/100Base-T Ethernet and USB communication ports, the controller combines a high-speed RISC processor with non-volatile memory for multitasking application programs. It supports advanced motion modes including linear and circular interpolation, electronic gearing, and electronic camming (ECAM) without requiring constant intervention from a host supervisory system.
Key Technical Specifications
| Parameter | Specification Details |
| Product Type | 4-Axis Standalone / Ethernet Motion Controller |
| Series / Family | DMC-41×3 Econo Series |
| Model Code | DMC-4143 |
| Controlled Axes | 4 Axes (Software-configurable for Servo or Stepper motors) |
| Communication Ports | 10/100Base-T Ethernet, USB Host |
| Processor Architecture | High-speed RISC motion processor |
| Position Feedback | Quadrature incremental encoder input per axis |
| Motion Modes | Point-to-point positioning, jogging, linear/circular interpolation, electronic gearing, ECAM |
| Programming Storage | Non-volatile memory supporting multitasking user programs |
Detailed Product Overview
The Galil DMC-4143 functions as an intelligent standalone processing unit for multi-axis machinery, managing trajectory generation, servo loop updates, and I/O tracking internally. Each of the four axis channels can be configured to command analog servo drives using standard \pm10 V signals or step-and-direction drives for stepper motors.
Equipped with robust networking options via Ethernet and USB, the controller integrates easily into automated cells or PLC-driven environments. Its multitasking capabilities allow operators to execute custom command scripts concurrently while handling real-time feedback loops, limits, and high-speed position triggers.

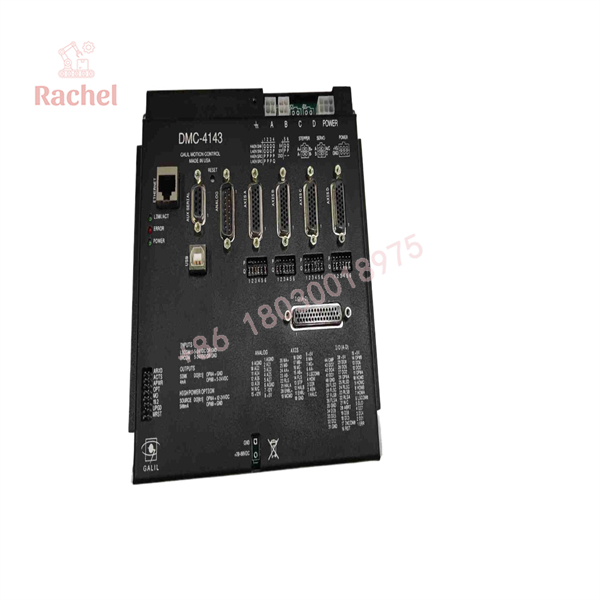

DMC-4143

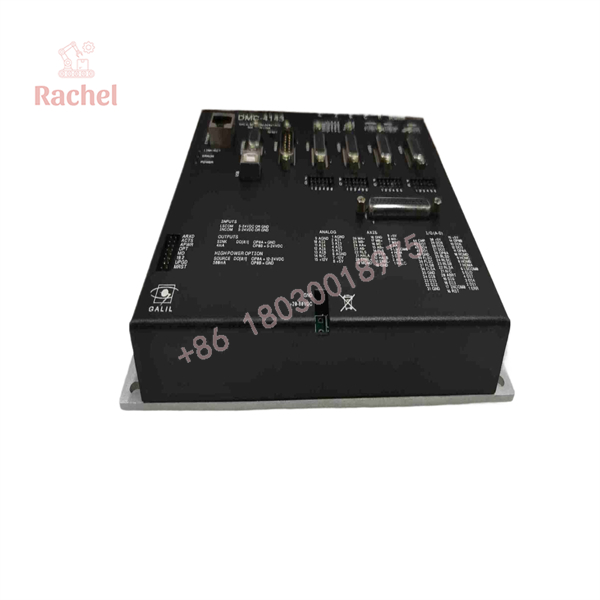

DMC-4143
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Feedback Encoders | Quadrature incremental encoders | Interfaces with differential or single-ended encoder feedback lines per axis. |
| Drive / Amplifier Interface | External analog servo amplifiers or step motor drives | Connects via multi-pin high-density cabling or breakout adapter boards. |
| Software Toolchain | Galil Design Kit (GDK) / GalilSuite software | Used for tuning servo loops, writing control scripts, and configuring communication parameters. |
| Power Supply Requirements | Standard DC industrial power input | Requires a clean DC voltage source matching controller specifications. |
Dimensions, Mounting & Connection Notes
- Enclosure Format: Compact metal enclosure designed for standard control cabinet panel mounting.
- Mounting Configuration: Flange base mount for secure attachment inside electrical enclosures.
- Connectors: High-density SCSI-type connectors for axis I/O and feedback wiring; standard RJ-45 and USB ports for communications.
- Operating Environment: Designed for standard non-condensing industrial temperature ranges.
FAQ
What is the Galil DMC-4143?
It is a 4-axis standalone motion controller from Galil’s Econo series designed for controlling servo or stepper motors across automated industrial applications.
How many axes does the DMC-4143 control?
It controls up to 4 independent or coordinated motion axes.
What communication interfaces does it support?
It features both 10/100Base-T Ethernet and USB communication ports for easy host connectivity.
Can the DMC-4143 operate standalone without a PC?
Yes, it features non-volatile memory that stores multitasking application scripts, allowing it to execute motion programs independently after initial configuration.
Documented Performance Data
- Processor Execution: High-speed RISC processor handles real-time servo loop calculations and trajectory smoothing.
- Interpolation Modes: Supports multi-axis linear interpolation, circular interpolation, and electronic gearing for synchronized motion profiling.
