Metso A413212 PLC Board

Description

Product Introduction

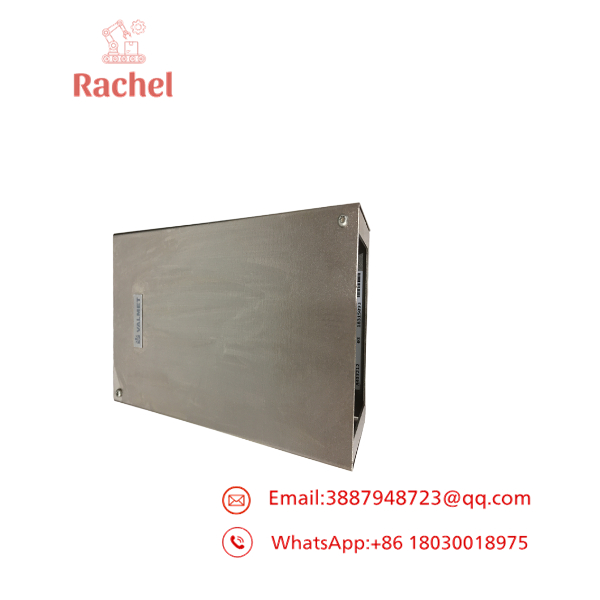

The Valmet / Metso Automation A413212 is an industrial-grade PLC add-on circuit board pre-mounted inside a protective module housing. Engineered for use in Valmet Distributed Control System (DCS) racks—such as those found across pulp and paper mills, power generation utilities, and heavy chemical processing facilities—the module provides expanded logic and signal conversion capacity to the central controller.

Built to withstand demanding industrial environments, the module’s enclosure protects the internal PCB from ambient airborne particulate and electromagnetic interference. The board interfaces cleanly with the rack backplane, allowing high-speed signal distribution between main CPU processing cards and field-level automation components.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a routine production run at a continuous chemical processing plant, a field sub-rack lost signal integrity on a dedicated telemetry loop, raising a rack communication fault. Diagnostics traced the issue to a degraded signal processing component inside an older expansion board. Swapping in a pre-tested A413212 board module restored backplane communication lines immediately, allowing process loops to stabilize without extending the maintenance outage.

• Pulp & Paper Operations – Expands control capacity on paper machine drives, stock preparation loops, and chemical dosing systems.
• Power Generation & Boilers – Processes interlock and monitoring logic across auxiliary utility systems.
• Continuous Chemical Processing – Interfaces specialized sub-system signals with the main plant DCS.

Transparency SOP: Quality Assurance & Testing

1. Visual & Enclosure Inspection: The external module shell, guide rails, and multi-pin backplane connectors are inspected under magnification for cracks, pin deformation, or contamination.
2. Backplane Power & Bus Test: The module is installed into a powered Valmet test sub-rack to verify proper voltage rail distribution and logic boot sequence.
3. Signal Communication Sweep: All logic channels and backplane bus interfaces are exercised to ensure error-free data transfer under high-density signal conditions.
4. ESD Safe Packaging: Verified modules are cleaned, sealed in moisture-barrier anti-static packaging, and protected with foam inserts for secure transit.

A413212

The Veteran’s Tech Trap Guide

• ⚠️ De-energize the rack before insertion! Always shut down power to the rack backplane before inserting or removing the A413212 module. Hot-plugging non-hot-swappable sub-rack boards can cause transient voltage spikes that damage the backplane bus logic.
• ❗ Verify slot keying and alignment. Ensure the module aligns evenly with the sub-rack guide rails before applying insertion pressure. Forcing the unit in can bend rear connector header pins.
• ⚠️ Observe proper ESD precautions. When handling bare circuit boards or unshielded connectors, wear a grounded ESD wrist strap to prevent static discharges that can degrade microcontrollers and logic ICs.

Frequently Asked Questions

• Q: Is the Valmet A413212 hot-swappable?

  A: No. System power to the target rack assembly should be switched off prior to installing or swapping the module to prevent electrical damage.

• Q: Does the A413212 include the protective housing?

  A: Yes, the unit comes integrated as a circuit board assembly mounted inside its factory protective module shell.

• Q: Are these genuine OEM components?

  A: Yes, 100%. We supply authentic OEM Valmet / Metso Automation hardware, fully bench-tested prior to shipment.
